Abstract
The invention provides a double-shoulder double-sealing face screwed nipple and a collar-free oil well pipe using the same. The double-shoulder double-sealing face screwed nipple comprises an inner conical threaded part and an outer conical threaded part, wherein the inner conical threaded part is orderly provided with an outer shoulder, an outer sealing face, an inner thread, an inner sealing face and an inner shoulder, the outer conical threaded part is correspondingly provided with an outer shoulder, an outer sealing face, an outer thread, an inner sealing face and an inner shoulder, and the inner and the outer diameters of the connection part are flush with the inner and the outer diameters of a pipe body when the inner conical threaded part and the outer conical threaded part are screwed up. The collar-free oil well pipe using the structural style of the double-shoulder double-sealing face screwed nipple is formed in a way that both ends of an oil well pipe are respectively processed into the double-shoulder double-sealing face inner conical threaded part and the double-shoulder double-sealing face outer conical threaded part, and the pipe ends do not need to be thickened.
Description
Technical field
The present invention relates to a kind of nipple, particularly a kind of nipple with double-shoulder double-sealing face
And the collar-free oil well pipe of this nipple of employing, belong to oil well pipe thread link technique field.
Background technology
The oil field is when carrying out the casing programme design, the selection of sleeve pipe and borehole size is generally carried out from inside to outside successively, at first determine the production casing size, determine to be lowered to the borehole size of production casing again, determine protective casing size etc. then, the rest may be inferred, up to the borehole size of surface pipe, determines the conduit size at last.Between sleeve pipe and the well certain interval is arranged, excesssive gap is then uneconomical, and too small meeting causes after setting of casing difficulty and the cementing cement to dewater too early forming the cement bridge.In general, (3/8～1/2in) scope is preferably 19mm (3/4in) to the general minimum of annular clearance value at 9.5～12.7mm.Because the box cupling external diameter of ordinary casing is generally than the big 12.7～38.1mm of body, this annular clearance value that just causes box cupling is far below body.For this reason, oil gas field often selects not have FJL Casing, with increase well cementation gap, thereby guarantees cementing quality.On the other hand, under the certain situation of annular clearance, select no FJL Casing for use, can reduce well chi, very little, the aperture of pit shaft reduces, and can reduce the drillng operation expense in the whole drilling operation course.API standard middle sleeve has two kinds of types of attachment, i.e. coupling type connection and external upset (EU) do not have the direct-connected sleeve pipe of box cupling, and still, external diameter is greater than the body external diameter in the coupling part of these two kinds of types of attachment.And the direct-connected sleeve pipe employing thread seal in the API standard, sealing effectiveness is poor, and pipe end needs thickening, inspection during manufacture difficulty.Chinese patent CN 2743655Y discloses the patent of invention that a kind of name is called " congruence is the screw connection structure of connected set pipe straight ", and the problem of this screw connection structure is: 1, have only a torque shoulder, and incompressible with torsional performance is poor excessively; 2, have only an inner sealing surface, the external pressure sealing effectiveness does not improve; 3, screw thread adopts API standard buttress thread, and bending resistance is poor.
Summary of the invention
The objective of the invention is to overcome the defective and the deficiency of prior art, a kind of nipple of the double-shoulder double-sealing face with good gas sealing ability is provided and adopts the collar-free oil well pipe of this nipple, that this nipple has is incompressible preferably, bending property and cross torsional performance, and processing detects easily.Being applied to has specific (special) requirements to annular clearance, situations such as the very harsh ultradeep well of drilling condition, scaled high-pressure natural gas well, extended reach well.
Technical scheme of the present invention is: a kind of double-shoulder double-sealing face nipple, nipple is made of jointly inner conical screw element and male-tapered screw element two parts.Shoulder, external seal face, internal thread, inner sealing surface, interior shoulder outside being disposed with on the inner conical screw element correspondingly are provided with outer shoulder, external seal face, external screw thread, inner sealing surface, interior shoulder outside on the tapered thread part.After inner conical screw element and male-tapered screw element were tightened, the inside and outside footpath of connecting portion was concordant with external diameter in the body.Internal thread forms the part C that is threaded with external screw thread, the external seal face of inner conical screw element and the external seal face of male-tapered screw element form outer seal configuration B, the inner sealing surface of the inner sealing surface of inner conical screw element and male-tapered screw element forms inner seal structure D, and radial interference takes place respectively for they.The outer shoulder of inner conical screw element, interior shoulder then form outer torque shoulder A and internal torque shoulder E with the outer shoulder and the interior shoulder of male-tapered screw element respectively, and axial interference takes place for they.
In order to improve the anti-bending strength of nipple, the thread forms of this nipple adopts improved buttress thread.The height of internal thread is h
1, externally threaded height is h
2, h wherein
2=1.106～1.575mm.h
1=h
2+ (0～0.2mm), thread depth is selected different numerical value according to the wall thickness of oil well pipe.The bearing surface angle of external screw thread and internal thread is γ, γ=-3～-15 °, and this angle reduces external screw thread and internal thread significantly and scolds active force at suffered outer of caliber direction, thereby reduces that internal thread swells and external screw thread dwindles.The spigot surface angle of external screw thread and internal thread is θ, and θ=+ 10 °～+ 25 ° help button centering, reduce thread alternating, detain efficient in raisings.
In order to improve the gas sealing ability of nipple, this nipple has designed inside and outside two metal/metal hermetically-sealed constructions.The angle of the external seal face of inner conical screw element and the external seal face of male-tapered screw element and axis is β 1 and β 2,2=-20 °～-30 ° of β 1=β.The external seal face of inner conical screw element is formed a wedge-shaped projection with outer shoulder, and the external seal face of male-tapered screw element is formed wedge-shaped impression with outer shoulder, and when joint used, wedge-shaped projection embedded wedge-shaped impression, seals.The sealing structure is with outer shoulder and the external seal face is organic cooperates, and the reliability of sealing significantly increases.The inner sealing surface tapering of inner conical screw element and the inner sealing surface tapering of male-tapered screw element are τ=1: 5～1: 10.
In order to improve the incompressible of nipple and to cross torsional performance, this nipple has designed inside and outside pair of shoulder structure, the angle of the outer shoulder of inner conical screw element and outer shoulder of male-tapered screw element and axis is α 1 and α 2,2=75 °～85 ° of α 1=α, the purpose that designs this angle is that outer shoulder and buttress thread produce wedge effect, can improve the sealing and the anti-bending strength of joint.The angle of interior shoulder of shoulder and male-tapered screw element and axis is 90 ° in the inner conical screw element.During use, first interference contacts the outer shoulder of inner conical screw element with the outer shoulder of male-tapered screw element, bears the part torque wrench moment, and when torque wrench moment increased to a certain degree, shoulder contacted with shoulder in the male-tapered screw element and bears excessive moment of torsion in the inner conical screw element.
The present invention also provides a kind of collar-free oil well pipe that adopts double-shoulder double-sealing face nipple form of structure, and directly processing is at the oil well pipe two ends respectively for the inner conical screw element of double-shoulder double-sealing face nipple and male-tapered screw element, and pipe end need not thickeied.Shoulder, external seal face, internal thread, inner sealing surface, interior shoulder outside on the inner conical screw element, being disposed with.Correspondingly be provided with outer shoulder, external seal face, external screw thread, inner sealing surface, interior shoulder outside on the tapered thread part.After inner conical screw element and male-tapered screw element were tightened, external diameter was concordant in the body of the inside and outside footpath of connecting portion and oil well pipe, and maximum annular clearance is provided.Internal thread forms the part C that is threaded with external screw thread, the external seal face of inner conical screw element and the external seal face of male-tapered screw element form outer seal configuration B, the inner sealing surface of the inner sealing surface of inner conical screw element and male-tapered screw element forms inner seal structure D, and radial interference takes place respectively for they.The outer shoulder of inner conical screw element, interior shoulder then form outer torque shoulder A and internal torque shoulder E with the outer shoulder and the interior shoulder of male-tapered screw element respectively, and axial interference takes place for they.
In order to improve the anti-bending strength of nipple, the thread forms of this nipple adopts improved buttress thread.The height of internal thread is h
1, externally threaded height is h
2, h wherein
2=1.106～1.575mm, h
1=h
2+ (0～0.2mm), thread depth is selected different numerical value according to the wall thickness of oil well pipe.The bearing surface angle of external screw thread and internal thread is γ, γ=-3～-15 °, and this angle reduces external screw thread and internal thread significantly and scolds active force at suffered outer of caliber direction, thereby reduces that internal thread swells and external screw thread dwindles.The spigot surface angle of external screw thread and internal thread is θ, and θ=+ 10 °～+ 25 ° help button centering, reduce thread alternating, detain efficient in raisings.
In order to improve the gas sealing ability of nipple, this nipple has designed inside and outside two metal/metal hermetically-sealed constructions.The angle of the external seal face of inner conical screw element and the external seal face of male-tapered screw element and axis is β 1 and β 2,2=-20 °～-30 ° of β 1=β.The external seal face of inner conical screw element is formed a wedge-shaped projection with outer shoulder, and the external seal face of male-tapered screw element is formed wedge-shaped impression with outer shoulder, and when joint used, wedge-shaped projection embedded wedge-shaped impression, seals.The sealing structure is with outer shoulder and the external seal face is organic cooperates, and the reliability of sealing significantly increases.The inner sealing surface tapering of inner conical screw element and the inner sealing surface tapering of male-tapered screw element are τ=1: 5～1: 10.
In order to improve the incompressible of nipple and to cross torsional performance, this nipple has designed inside and outside pair of shoulder structure, the angle of the outer shoulder of inner conical screw element and outer shoulder of male-tapered screw element and axis is α 1 and α 2,2=75 °～85 ° of α 1=α, the purpose that designs this angle is that outer shoulder and buttress thread produce wedge effect, can improve the sealing and the anti-bending strength of joint.The angle of interior shoulder of shoulder and male-tapered screw element and axis is 90 ° in the inner conical screw element.During use, first interference contacts the outer shoulder of inner conical screw element with the outer shoulder of male-tapered screw element, bears the part torque wrench moment, and when torque wrench moment increased to a certain degree, shoulder contacted with shoulder in the male-tapered screw element and bears excessive moment of torsion in the inner conical screw element.
The present invention compared with prior art has following characteristics:
1, adopting the bearing surface angle is the buttress thread of negative angle, has guaranteed the bending resistance that screw thread is higher.
2, counted double sealing structure, the wedge-shaped projection of the wedge-shaped impression of male-tapered screw element and inner conical screw element, form outer seal configuration A and B, the inner conical surface of the inner conical surface of male-tapered screw element and inner conical screw element, form inner seal structure D, they are separate, guarantee the gas sealing ability of joint under high pressure.
3, designed the two torque shoulder structures of interior B, outer A, guaranteed the incompressible of screw thread and crossed torsional performance.
4, buttress thread C and have the wedge effect that the outer shoulder A of certain angle produces further improves the gas sealing ability of this thread joined structure and anti-bending strength.
5, the inside and outside footpath of coupling part is concordant with external diameter in the oil well pipe body, and maximum annular clearance is provided.
Below in conjunction with the drawings and specific embodiments detailed structure of the present invention is further described.
Description of drawings
Accompanying drawing 1 is a structural representation of the present invention;
Accompanying drawing 2 is the wedge effect schematic diagram of outer torque shoulder and screw thread;

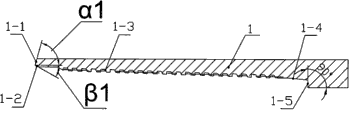

Accompanying drawing 3 is the inner thread piece generalized section;
Accompanying drawing 4 is the external thread piece generalized section;
Helicitic texture schematic diagram when accompanying drawing 5 is inner thread piece and external thread piece engagement;
Accompanying drawing 6 is for adopting the collar-free oil well pipe structural representation of double-shoulder double-sealing face nipple.
The specific embodiment
A kind of double-shoulder double-sealing face nipple, nipple is made of jointly inner conical screw element 1 and male-tapered screw element 2 two parts.Shoulder 1-1, external seal face 1-2, internal thread 1-3, inner sealing surface 1-4, interior shoulder 1-5 outside on inner conical screw element 1, being disposed with.Correspondingly be provided with outer shoulder 2-1, external seal face 2-2, external screw thread 2-3, inner sealing surface 2-4, interior shoulder 2-5 outside on the tapered thread part 2.After inner conical screw element 1 and male-tapered screw element 2 were tightened, the inside and outside footpath of connecting portion was concordant with external diameter in the body.Internal thread 1-3 forms the part C that is threaded with external screw thread 2-3, the external seal face 2-2 of the external seal face 1-2 of inner conical screw element 1 and male-tapered screw element 2 forms outer seal configuration B, the inner sealing surface 1-4 of inner conical screw element 1 and the inner sealing surface 2-4 of male-tapered screw element 2 form inner seal structure D, radial interference takes place respectively in them, the outer shoulder 1-1 of inner conical screw element 1, interior shoulder 1-5 then form outer torque shoulder A and internal torque shoulder E with the outer shoulder 2-1 and the interior shoulder 2-5 of male-tapered screw element 2 respectively, and axial interference takes place for they.
In order to improve the anti-bending strength of nipple, the thread forms of this nipple adopts improved buttress thread.The height of internal thread 1-3 is h
1, the height of external screw thread 2-3 is h
2, h wherein
2=1.106～1.575mm, h
1=h
2+ (0～0.2mm), thread depth is selected different numerical value according to the wall thickness of oil well pipe.The bearing surface angle of external screw thread 2-3 and internal thread 1-3 is γ, γ=-3～-15 °, and this angle reduces external screw thread and internal thread significantly and scolds active force at suffered outer of caliber direction, thereby reduces that internal thread swells and external screw thread dwindles.External screw thread and internal thread spigot surface angle are θ, and θ=+ 10 °～+ 25 ° help button centering, reduce thread alternating, detain efficient in raisings.
In order to improve the gas sealing ability of nipple, this nipple has designed inside and outside two metal/metal hermetically-sealed constructions.The angle of the external seal face 1-2 of inner conical screw element and the external seal face 2-2 of male-tapered screw element and axis is β 1 and β 2,2=-20 °～-30 ° of β 1=β.The external seal face 1-2 of inner conical screw element and outer shoulder 1-1 form a wedge-shaped projection, and the external seal face 1-2 of male-tapered screw element and outer shoulder 1-1 form wedge-shaped impression, and when joint used, wedge-shaped projection embedded wedge-shaped impression, seals.The sealing structure is with outer shoulder and the external seal face is organic cooperates, and the reliability of sealing significantly increases.The inner sealing surface 2-4 tapering of the inner sealing surface 1-4 tapering of inner conical screw element and male-tapered screw element is τ=1: 5～1: 10.
In order to improve the incompressible of nipple and to cross torsional performance, this nipple has designed inside and outside pair of shoulder structure, the angle of the outer shoulder 1-1 of inner conical screw element and outer shoulder 2-1 of male-tapered screw element and axis is α 1 and α 2,2=75 °～85 ° of α 1=α, the purpose that designs this angle is that outer shoulder and buttress thread produce wedge effect, can improve the sealing and the anti-bending strength of joint.The angle of interior shoulder 2-5 of shoulder 1-5 and male-tapered screw element and axis is 90 ° in the inner conical screw element.During use, first interference contacts the outer shoulder 1-1 of inner conical screw element with the outer shoulder 2-1 of male-tapered screw element, bear the part torque wrench moment, when torque wrench moment increased to a certain degree, shoulder 1-5 contacted with shoulder 2-5 in the male-tapered screw element and bears excessive moment of torsion in the inner conical screw element.
Specific embodiments of the invention are the sleeve pipes that are used for 193.68 * 12.7mm, the grade of steel of sleeve pipe is P110, the physical dimension of sleeve pipe comprises that external diameter, wall thickness etc. all adopt API standard gauge definite value, the material behavior of sleeve pipe to satisfy the requirement of API standard to P110 steel-grade bushing material.Two ends at sleeve pipe process internal and external screw thread spare respectively, and the outer diameter D of inner conical screw element 1 and male-tapered screw element 2 is 193.68mm, and inner diameter d is 168.28mm.The tooth depth h of its external screw thread 2-3
2Be 1.02mm, the tooth depth h of internal thread 1-3
1Be 1.22mm, spigot surface angle θ is 10 °, and bearing surface angle γ is-3 °, tapering 1: 16, pitch 6TPI.The angle α 1 and the α 2 of the outer shoulder 1-1 of inner conical screw element and outer shoulder 2-1 of male-tapered screw element and axis are 75 °, the angle of interior shoulder 2-5 of shoulder 1-5 and male-tapered screw element and axis is 90 ° in the inner conical screw element, the external seal conical surface 2-2 of inner conical screw element external seal conical surface 1-2 and male-tapered screw element and axis angle β 1 and β 2 are-30 °, and the interior sealing 2-4 face cone degree τ of the inner sealing surface 1-4 tapering of inner conical screw element and male-tapered screw element is 1: 5.External screw thread 2-3 does not carry out surfacing, internal thread 1-3 phosphatization, and thread compound adopts the API thread compound.
Claims (10)
1. double-shoulder double-sealing face nipple, it is characterized in that: nipple is made of jointly inner conical screw element and male-tapered screw element two parts, shoulder, external seal face, internal thread, inner sealing surface, interior shoulder outside on the inner conical screw element, being disposed with, correspondingly be provided with outer shoulder, external seal face, external screw thread, inner sealing surface, interior shoulder outside on the tapered thread part, after inner conical screw element and male-tapered screw element were tightened, the inside and outside footpath of connecting portion was concordant with external diameter in the body; Internal thread forms the part C that is threaded with external screw thread, the external seal face of inner conical screw element and the external seal face of male-tapered screw element form outer seal configuration B, the inner sealing surface of the inner sealing surface of inner conical screw element and male-tapered screw element forms inner seal structure D, and radial interference takes place respectively for they; The outer shoulder of inner conical screw element, interior shoulder then form outer torque shoulder A and internal torque shoulder E with the outer shoulder and the interior shoulder of male-tapered screw element respectively, and axial interference takes place for they.
2. a kind of double-shoulder double-sealing face nipple according to claim 1 is characterized in that: in order to improve the anti-bending strength of nipple, the thread forms of this nipple adopts improved buttress thread, and the height of internal thread is h
1, externally threaded height is h
2, h wherein
2=1.106～1.575mm.h
1=h
2+ (0～0.2mm), the bearing surface angle of external screw thread and internal thread is γ, γ=-3～-15 °, and external screw thread and internal thread spigot surface angle are θ, θ=+ 10 °～+ 25 °.
3. a kind of double-shoulder double-sealing face nipple according to claim 1 and 2, it is characterized in that: in order to improve the gas sealing ability of nipple, in this nipple has designed, outer two metal/metal hermetically-sealed constructions, the angle of the external seal face of inner conical screw element and the external seal face of male-tapered screw element and axis is β 1 and β 2,2=-20 °～-30 ° of β 1=β, the external seal face of inner conical screw element is formed a wedge-shaped projection with outer shoulder, the external seal face of male-tapered screw element is formed wedge-shaped impression with outer shoulder, when joint uses, wedge-shaped projection embeds wedge-shaped impression, seal, the inner sealing surface tapering of inner conical screw element and the inner sealing surface tapering of male-tapered screw element are τ=1: 5～1: 10.
4. a kind of double-shoulder double-sealing face nipple according to claim 1 and 2, it is characterized in that: in order to improve the incompressible of nipple and to cross torsional performance, this nipple has designed inside and outside pair of shoulder structure, the angle of the outer shoulder of inner conical screw element and outer shoulder of male-tapered screw element and axis is α 1 and α 2, the angle of interior shoulder of shoulder and male-tapered screw element and axis is 90 ° in 2=75 °～85 ° of the α 1=α, inner conical screw element.
5. a kind of double-shoulder double-sealing face nipple according to claim 3, it is characterized in that: in order to improve the incompressible of nipple and to cross torsional performance, this nipple has designed inside and outside pair of shoulder structure, the angle of the outer shoulder of inner conical screw element and outer shoulder of male-tapered screw element and axis is α 1 and α 2, the angle of interior shoulder of shoulder and male-tapered screw element and axis is 90 ° in 2=75 °～85 ° of the α 1=α, inner conical screw element.
6. collar-free oil well pipe that adopts the double-shoulder double-sealing face nipple is characterized in that: directly processing is at the oil well pipe two ends respectively for the inner conical screw element of double-shoulder double-sealing face nipple and male-tapered screw element, and pipe end need not thickeied; Shoulder, external seal face, internal thread, inner sealing surface, interior shoulder outside on the inner conical screw element, being disposed with, correspondingly be provided with outer shoulder, external seal face, external screw thread, inner sealing surface, interior shoulder outside on the tapered thread part, after inner conical screw element and male-tapered screw element were tightened, external diameter was concordant in the body of the inside and outside footpath of connecting portion and oil well pipe; Internal thread forms the part C that is threaded with external screw thread, the external seal face of inner conical screw element and the external seal face of male-tapered screw element form outer seal configuration B, the inner sealing surface of the inner sealing surface of inner conical screw element and male-tapered screw element forms inner seal structure D, and radial interference takes place respectively for they; The outer shoulder of inner conical screw element, interior shoulder then form outer torque shoulder A and internal torque shoulder E with the outer shoulder and the interior shoulder of male-tapered screw element respectively, and axial interference takes place for they.
7. the collar-free oil well pipe of employing double-shoulder double-sealing face nipple according to claim 6 is characterized in that: in order to improve the anti-bending strength of nipple, the thread forms of this nipple adopts improved buttress thread, and the height of internal thread is h
1, externally threaded height is h
2, h wherein
2=1.106～1.575mm.h
1=h
2+ (0～0.2mm), the bearing surface angle of external screw thread and internal thread is γ, γ=-3～-15 °, and external screw thread and internal thread spigot surface angle are θ, θ=+ 10 °～+ 25 °.
8. according to the collar-free oil well pipe of claim 6 or 7 described employing double-shoulder double-sealing face nipples, it is characterized in that: in order to improve the gas sealing ability of nipple, in this nipple has designed, outer two metal/metal hermetically-sealed constructions, the angle of the external seal face of inner conical screw element and the external seal face of male-tapered screw element and axis is β 1 and β 2,2=-20 °～-30 ° of β 1=β, the external seal face of inner conical screw element is formed a wedge-shaped projection with outer shoulder, the external seal face of male-tapered screw element is formed wedge-shaped impression with outer shoulder, when joint uses, wedge-shaped projection embeds wedge-shaped impression, seal, the inner sealing surface tapering of inner conical screw element and the inner sealing surface tapering of male-tapered screw element are τ=1: 5～1: 10.
9. according to the collar-free oil well pipe of claim 6 or 7 described employing double-shoulder double-sealing face nipples, it is characterized in that: in order to improve the incompressible of nipple and to cross torsional performance, this nipple has designed inside and outside pair of shoulder structure, the angle of the outer shoulder of inner conical screw element and outer shoulder of male-tapered screw element and axis is α 1 and α 2, the angle of interior shoulder of shoulder and male-tapered screw element and axis is 90 ° in 2=75 °～85 ° of the α 1=α, inner conical screw element.
10. the collar-free oil well pipe of employing double-shoulder double-sealing face nipple according to claim 8, it is characterized in that: in order to improve the incompressible of nipple and to cross torsional performance, this nipple has designed inside and outside pair of shoulder structure, the angle of the outer shoulder of inner conical screw element and outer shoulder of male-tapered screw element and axis is α 1 and α 2, the angle of interior shoulder of shoulder and male-tapered screw element and axis is 90 ° in 2=75 °～85 ° of the α 1=α, inner conical screw element.
