CN101814753A - UPS power supply centralized power supply system - Google Patents
UPS power supply centralized power supply system Download PDFInfo
- Publication number
- CN101814753A CN101814753A CN201010137962A CN201010137962A CN101814753A CN 101814753 A CN101814753 A CN 101814753A CN 201010137962 A CN201010137962 A CN 201010137962A CN 201010137962 A CN201010137962 A CN 201010137962A CN 101814753 A CN101814753 A CN 101814753A
- Authority
- CN
- China
- Prior art keywords
- ups
- power supply
- module
- unit
- power
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Pending
Links
- 238000012544 monitoring process Methods 0.000 claims abstract description 20
- 238000013461 design Methods 0.000 claims abstract description 15
- 238000001514 detection method Methods 0.000 claims description 8
- 230000005059 dormancy Effects 0.000 claims description 3
- 230000003068 static effect Effects 0.000 claims 2
- 238000012423 maintenance Methods 0.000 abstract description 5
- 238000010586 diagram Methods 0.000 description 2
- 238000009434 installation Methods 0.000 description 2
- 230000007958 sleep Effects 0.000 description 2
- 230000009286 beneficial effect Effects 0.000 description 1
- 230000005540 biological transmission Effects 0.000 description 1
- 230000007812 deficiency Effects 0.000 description 1
- 238000000034 method Methods 0.000 description 1
- 239000000203 mixture Substances 0.000 description 1
- 238000012986 modification Methods 0.000 description 1
- 230000004048 modification Effects 0.000 description 1
Images
Landscapes
- Supply And Distribution Of Alternating Current (AREA)
Abstract
本发明公开了一种UPS电源集中供电系统，将UPS单元和智能(或非智能)配电单元集成在一起，可大幅节约机房占地空间(约50％)，同时也可以根据用户的需求提供多种供电解决方案，如可同时选用UPS单元和智能(或非智能)配电单元，或者只选用UPS。本发明中的系统，其UPS单元不仅可以热插拔，配电模块通过模块化和可热插拔的要求设计也能实现热插拔功能，能轻易实现配电模块的在线扩容，满足用户的扩容需求、维修方便。进一步地，通过集成UPS监控模块和配电监控模块，可以对UPS单元和配电单元同时进行实时监控。所有模块均按照19″标准插框设计，外观更美观，兼容性高，可安装在任何19″标准机柜上。
The invention discloses a UPS power supply centralized power supply system, which integrates the UPS unit and the intelligent (or non-intelligent) power distribution unit, which can greatly save the floor space of the machine room (about 50%), and can also provide A variety of power supply solutions, such as UPS units and intelligent (or non-intelligent) power distribution units can be selected at the same time, or only UPS can be selected. In the system of the present invention, its UPS unit can not only be hot-swapped, but also the power distribution module can realize the hot-swappable function through the design of modularization and hot-swappable requirements, and can easily realize the online expansion of the power distribution module to meet the needs of users. Expansion requirements and easy maintenance. Further, by integrating the UPS monitoring module and the power distribution monitoring module, the UPS unit and the power distribution unit can be simultaneously monitored in real time. All modules are designed according to the 19″ standard frame, with a more beautiful appearance and high compatibility, and can be installed on any 19″ standard cabinet.
Description
Technical field
The present invention relates to a kind of uninterrupted power supply, particularly relate to a kind of uninterrupted power supply centrally connected power supply system.
Background technology
Existing uninterrupted power supply (Uninterruptible Power Supply, being called for short UPS) system is independent UPS unit or independent power supply unit mostly, even UPS unit and power supply unit are integrated, but each parts of power supply unit part all are that independent groups is contained in the rack, when a certain distribution branch road breaks down, other distribution branch road also must cut off the power supply and quit work, and makes maintenance difficult.Simultaneously, the rack that each parts of this power supply unit are independently assembled, the also dilatation easily of power supply unit part.
Summary of the invention
Technical problem to be solved by this invention is: remedy above-mentioned the deficiencies in the prior art, propose a kind of ups power centrally connected power supply system, the power supply unit modularized design is installed in the rack with the hot swappable form, better meet the online dilatation requirement of user, simultaneously easy to maintenance.
Technical problem of the present invention is solved by following technical scheme:
A kind of ups power centrally connected power supply system comprises the UPS unit, power supply unit, monitoring unit and the rack that are electrically connected with known manner, and described power supply unit is modularized design, is installed in the described rack with the hot swappable form.
In the optimized technical scheme,
Described power supply unit comprises at least one Power entry module.
Described Power entry module comprises circuit breaker, lead-out terminal and the hot swappable connector that is electrically connected with known manner, described circuit breaker and described lead-out terminal are incorporated in the interpolation frame, described hot swappable connector is arranged at the outside of described interpolation frame, and described Power entry module is hot-swappable by described hot swappable connector and described rack.
Described Power entry module also comprises current transformer, and described current transformer is incorporated in the described interpolation frame, is electrically connected with described circuit breaker, described lead-out terminal and described hot swappable connector with known manner.
Described Power entry module is by pressing 19 inches rack standardized designs.
In the further optimized technical scheme,
Described UPS unit comprises UPS master's power model, UPS bypass/static-switch module and the UPS power distribution assembly that is electrically connected with known manner; Described UPS master's power model is installed in the described rack with the hot swappable form.
Described UPS unit also comprises the UPS detection module, and described UPS detection module detects the size of described UPS unit institute bringing onto load amount, and the output control signal is controlled the switching on and shutting down quantity of described UPS master's power model, realizes the intelligent sleep mode of UPS unit.
Described UPS master's power model, described UPS bypass/static-switch module and described UPS power distribution assembly are all by 19 inches rack standardized designs.
In the further again optimized technical scheme,
Described monitoring unit comprises UPS monitoring module and distribution monitor module.
Described UPS monitoring module and described distribution monitor module are all by 19 inches rack standardized designs.
The beneficial effect that the present invention is compared with the prior art is:
Ups power centrally connected power supply of the present invention system, integrated UPS unit and power supply unit, power supply unit requires design according to modularization and hot swappable, can realize the online dilatation of power supply unit easily, better meets user's dilatation demand, and is simultaneously easy to maintenance.Further, the UPS unit is installed in the rack with the hot swappable form also by modularized design, makes things convenient for the dilatation of UPS unit to use; Also comprise the UPS detection module in the UPS unit, can determine the switching on and shutting down quantity of main power model, realize the function of intelligent dormancy, energy savings according to the size of load capacity.Again further, by integrated UPS monitoring module and distribution monitor module, can monitor in real time simultaneously UPS unit and power supply unit.All modules are all according to 19, and " design of standard interpolation frame, outward appearance is more attractive in appearance, and is compatible high, can be installed in any 19 " on the standard cabinet.
Description of drawings

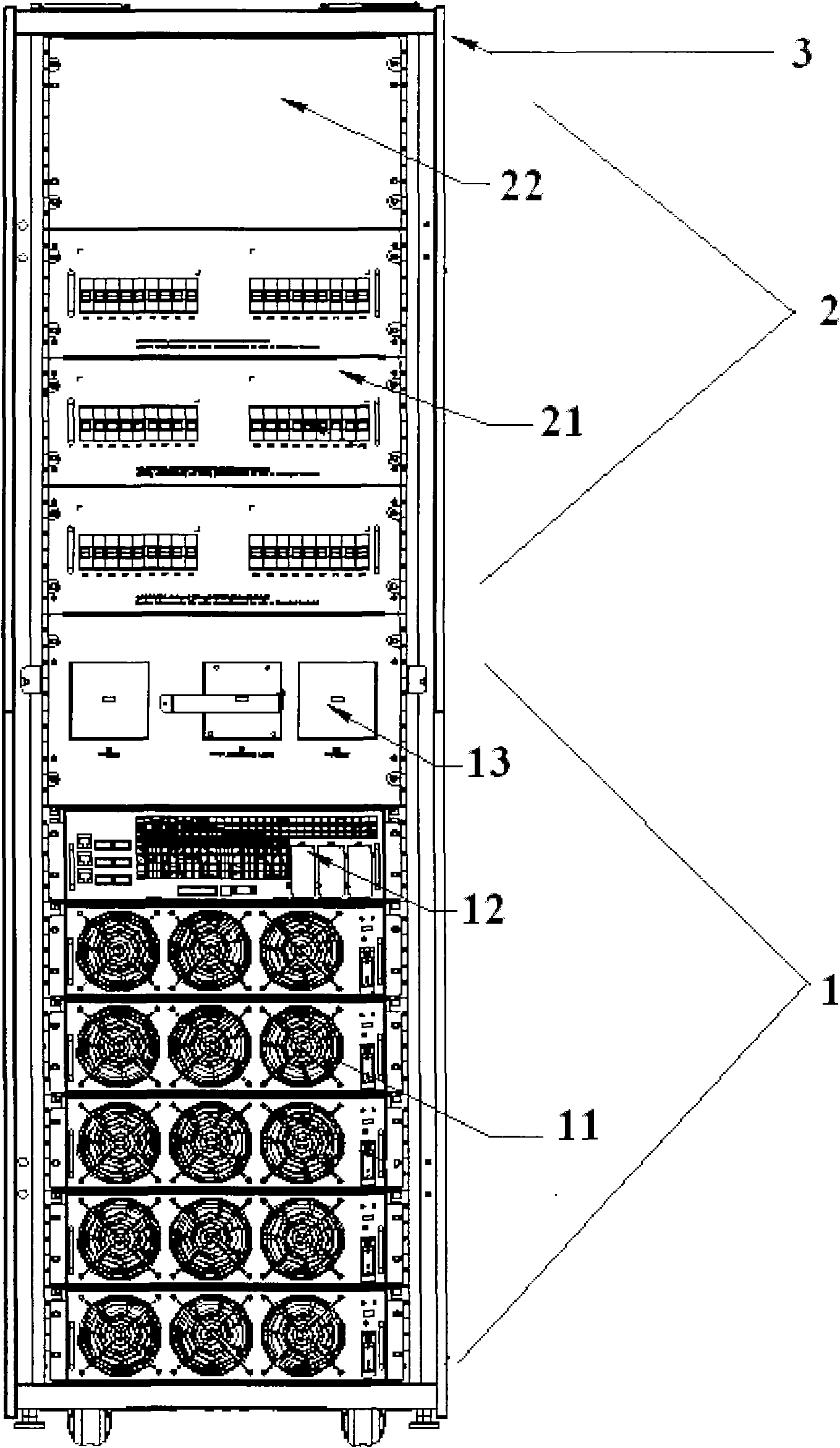

Fig. 1 is the schematic layout pattern of the ups power centrally connected power supply system of the specific embodiment of the invention;
Fig. 2 is the front view of intelligent power distribution module in the specific embodiment of the invention;
Fig. 3 is the vertical view of intelligent power distribution module in the specific embodiment of the invention;
Fig. 4 is the rearview of intelligent power distribution module in the specific embodiment of the invention;
Fig. 5 is intelligent power distribution module and a rack connection diagram in the specific embodiment of the invention;
Fig. 6 is the scheme of installation of collecting unit in the specific embodiment of the invention;
Embodiment
Below in conjunction with embodiment and contrast accompanying drawing the present invention is described in further details.
As shown in Figure 1, ups power centrally connected power supply system for present embodiment, comprise UPS unit 1, power supply unit 2, rack 3, collecting unit 4 and monitoring unit (not shown), UPS unit 1, power supply unit 2, rack 3, collecting unit 4 and monitoring unit are electrically connected with known manner.UPS unit 1 and power supply unit 2 are installed in the rack 3 with the hot swappable form.
Wherein, UPS unit 1 comprises UPS master's power model 11, UPS bypass/static-switch module 12, and UPS power distribution assembly 13, UPS master's power model 11, UPS bypass/static-switch module 12 and UPS power distribution assembly 13 are electrically connected with known manner.UPS master's power model is installed in the rack 3 with the hot swappable form.UPS master's power model 11 comprises the single power model of five UPS, and the capacity of the single power model of each UPS is 30KVA, and then the maximum configured of UPS master's power model 11 is 150KVA.The single power model of each UPS links to each other with system by the hot swappable connector.The number of the single power model of the UPS of the composition UPS master power model 11 in the present embodiment can be provided with as required.In addition, intelligentized design if desired, the UPS unit in the present embodiment also can comprise UPS detection module (not shown), detects the size of UPS unit institute bringing onto load amount, the switching on and shutting down quantity of output control signal control UPS master power model.Can realize the intelligent sleep mode of UPS unit, energy savings by setting up the UPS detection module.
Power supply unit 2 comprises three Power entry modules 21 and accessory power supply module 22, and each Power entry module, accessory power supply module 22 are electrically connected with rack 3 with known manner; Power entry module 21 is installed in the rack 3 with the hot swappable form.The number of Power entry module 21 can be 1 according to the user's request setting, 2,3 or more a plurality of.
Join single module 21 and be the intelligent power distribution module, its structure chart is shown in Fig. 2,3,4.The intelligent power distribution module is incorporated in the interpolation frame 215 by branch road miniature circuit breaker 211, current transformer 212, branch road lead-out terminal 213 and constitutes, and hot swappable connector 214 is arranged on the outside of interpolation frame 215.Branch road miniature circuit breaker 211, current transformer 212, branch road lead-out terminal 213 and hot swappable connector 214 are electrically connected with known manner.Wherein, intelligent power distribution modular power distribution branch road number is 18, and each branch road heap(ed) capacity is 63A.Power supply unit 2 comprises three Power entry modules 21 in the present embodiment, and then maximum configured is 54 road distribution branch roads.
Power entry module in the present embodiment also can be non intelligent Power entry module.If be non intelligent Power entry module, then module does not have current transformer 212 in forming.When Power entry module was non intelligent Power entry module, its connected mode with the connected mode of system and intelligent power distribution module and system was the same.In the present embodiment, the assembly of forming Power entry module is not limited to circuit breaker, branch road lead-out terminal, be also included within other switch devices that to bring into play in the circuit with the circuit breaker same function, and in circuit, can bring into play other port devices with branch road lead-out terminal same function.
As shown in Figure 6, be the scheme of installation of collecting unit 4.Collecting unit 4 is installed in the back side of accessory power supply module 22.Collecting unit 4 is gathered the index parameter of Power entry module, sends into monitoring unit and carries out Treatment Analysis.Monitoring module comprises UPS monitoring module and distribution monitor module, can monitor in real time UPS unit and power supply unit simultaneously.
" standard interpolation frame design that UPS master's power model 11, UPS bypass/static-switch module 12 and UPS power distribution assembly 13, Power entry module 21, accessory power supply module 22, UPS monitoring module and distribution monitor module are all by 19 in the ups power centrally connected power supply system.Each module is by standardized designs, and its outward appearance is more attractive in appearance, and is compatible high, can be installed in any 19 " on the standard cabinet.
Ups power centrally connected power supply system among the present invention integrates UPS unit and intelligence (or non intelligent) power supply unit, only need a rack promptly to realize the scheme that two racks of original needs (UPS rack and power distributing cabinet) could be realized, can significantly save machine room and take up an area of space (about 50%).By integrated, also can provide multiple power supply solution simultaneously according to user's demand, as selecting UPS unit and intelligence (or non intelligent) power supply unit simultaneously for use, perhaps only select UPS for use.System among the present invention, its UPS unit not only can hot plug, and Power entry module requires design also can realize the hot plug function by modularization and hot swappable, can realize the online dilatation of Power entry module easily, satisfies user's dilatation demand, easy to maintenance.Further, the UPS unit comprises the UPS detection module, can determine the switching on and shutting down quantity of main power model according to the size of load capacity, realizes the function of intelligent dormancy, energy savings.Again further, by integrated UPS monitoring module and distribution monitor module, can monitor in real time simultaneously UPS unit and power supply unit.All modules are all according to 19, and " design of standard interpolation frame, outward appearance is more attractive in appearance, and is compatible high, can be installed in any 19 " on the standard cabinet.
Above content be in conjunction with concrete preferred implementation to further describing that the present invention did, can not assert that concrete enforcement of the present invention is confined to these explanations.For the general technical staff of the technical field of the invention, make some substituting or obvious modification without departing from the inventive concept of the premise, and performance or purposes are identical, all should be considered as belonging to protection scope of the present invention.
Claims (10)
