Abstract
The invention relates to an oral cavity nursing kit and a nursing method. The oral cavity nursing kit comprises a main body and a work end, wherein the main body is provided with an air inlet communicated with a first run-through channel arranged in the cavity of the main body; the aperture of the air inlet is larger than that of a second run-through channel arranged in the cavity of the work end; and the work end further comprises a first work end for brushing the oral cavity and a second work end for scouring the oral cavity. The oral cavity nursing method is as follows: injecting fluid in the oral cavity by a priming device via the first run-through channel and the second run-through channel; brushing the oral cavity by the first work end; and scouring the oral cavity by the second work end and pumping foreign matters or ponding out of the oral cavity by a suction device via the second run-through channel and the first run-through channel. By adopting the technical scheme of the invention, nursing staff can finish oral cavity nursing for severe patients independently in a short time, thus having simple and convenient operation and saving manpower source and time.
Description
[technical field]
The present invention relates to a kind of medical apparatus and instruments, be specifically related to a kind of oral care method that carries out the oral care kits of mouth care and use this care kit to carry out for the patient with severe symptoms.
[background technology]
The unconscious patient with severe symptoms that maybe can not take care of oneself is carried out the difficult problem that mouth care is the puzzlement nursing staff always.
In the prior art, hospital needs two to three nursing stafves to cooperatively interact, assist just can finish when carrying out mouth care for the unconscious patient with severe symptoms that maybe can not take care of oneself.Concrete grammar is: first nursing staff wants assisting patients that mouth is opened, then by the moistening patient of the sterilized cotton ball of adsorbed water or disinfectant solution oral cavity, and clean, or directly water or disinfectant solution are injected patient's mouth by syringe, clean, second nursing staff's hands takes ordinary toothbrush to scrub for the patient, often needs the 3rd nursing staff in time hydrops unnecessary in the patient oral cavity to be utilized the negative pressure suction device sucking-off according to the hydrops situation in patient oral cavity.Practice shows, needs 15 fens clock times at least even veteran special and professional care personnel finish above-mentioned nursing process.
So the technical barrier that carries out mouth care for the patient with severe symptoms in the prior art is, first, need several nursing stafves, expended the human resources; The second, the whole process of controlling needs 15 minutes at least, has expended the more time; Three, whole nursing process complex steps is discontinuous, causes patient's mistake to inhale easily, and cleaning is not thorough, and most hospitals do not scrub with toothbrush positions such as teeth for simplifying the operation, only dip in the cancellation venom and simply clean, do not reach the mouth care of real meaning with sterilized cotton ball.
[summary of the invention]
For solve exist in the prior art the patient with severe symptoms is carried out mouth care the time needs several nursing stafves cooperatively interact, assist, expended the human resources, it is whole that to control the process consumed time long, and the nursing process difficulty is bigger, this technical problem of mouth care poor effect the invention provides a kind of oral care method that carries out the oral care kits of mouth care and use this care kit to carry out for the patient with severe symptoms.
The present invention solves technical scheme that the prior art problem adopted for a kind of oral care kits is provided, and described oral care kits comprises: be provided with the main body of first through channel and be provided with the working end of second through channel; Wherein, described main body is provided with air inlet, and described air inlet is communicated with interior first through channel that is provided with of the cavity of described main body, and the aperture of described air inlet is greater than the aperture of second through channel that is provided with in the cavity of described working end; Described working end further comprises second working end that is used to scrub first working end in oral cavity and is used to clean the oral cavity; Have at least one to be connected in described first working end and described second working end with described main body.
According to the preferred technical solution of the present invention: described main body is provided with inlet opening, and first through channel that is provided with in the cavity of described inlet opening and described main body is communicated with, and described inlet opening can be connected with priming device.
According to the preferred technical solution of the present invention: described inlet opening is provided with lid.
According to the preferred technical solution of the present invention: described main body is provided with first link and second link that is used to be connected negative pressure suction device that is used to connect described working end.
According to the preferred technical solution of the present invention: described first working end further comprises brush and the 3rd link, described brush is provided with first liquid-leadage hole, described first liquid-leadage hole is communicated with described second through channel, and first link that is provided with on described the 3rd link and the described main body is for removably connecting.
According to the preferred technical solution of the present invention: described the 3rd link and described first link are for being threaded or cassette is connected.
According to the preferred technical solution of the present invention: described second working end is provided with second liquid-leadage hole, described second liquid-leadage hole is communicated with described second through channel, described second working end further comprises cleans external member and the 4th link, wherein, described scouring external member is sleeved on the described second working end outer surface, and first link that is provided with on described the 4th link and the described main body is for removably connecting.
According to the preferred technical solution of the present invention: described the 4th link and described first link are for being threaded or cassette is connected.
According to the preferred technical solution of the present invention: described scouring external member is that sponges cover, Cotton Gossypii cover or other have the external member of adsorptive liquid function.
According to the preferred technical solution of the present invention: the aperture of described first through channel and described second through channel equates that the hole heart is relative.
The present invention also provides a kind of oral care method, and described oral care method has used oral care kits, and described oral care kits comprises: the main body and the working end that is provided with second through channel that are provided with first through channel; Wherein, described main body is provided with air inlet, and described air inlet is communicated with interior first through channel that is provided with of the cavity of described main body, and the aperture of described air inlet is greater than the aperture of second through channel that is provided with in the cavity of described working end; Described working end further comprises second working end that is used to scrub first working end in oral cavity and is used to clean the oral cavity; Have at least one to be connected in described first working end and described second working end with described main body; Described oral care method comprises: by priming device liquid is injected intraoral step through first through channel and second through channel and first liquid-leadage hole; The step of the oral cavity being scrubbed by first working end; Extract foreign body in mouth or hydrops out external step through first liquid-leadage hole, second through channel and first through channel by suction device.
The present invention also provides another kind of oral care method, and described oral care method has used oral care kits, and described oral care kits comprises: the main body and the working end that is provided with second through channel that are provided with first through channel; Wherein, described main body is provided with air inlet, and described air inlet is communicated with interior first through channel that is provided with of the cavity of described main body, and the aperture of described air inlet is greater than the aperture of second through channel that is provided with in the cavity of described working end; Described working end further comprises second working end that is used to scrub first working end in oral cavity and is used to clean the oral cavity; Have at least one to be connected in described first working end and described second working end with described main body; This kind oral care method comprises: by priming device liquid is injected intraoral step through first through channel and second through channel and second liquid-leadage hole; The step of the oral cavity being cleaned by second working end; Extract foreign body in mouth or hydrops out external step through second liquid-leadage hole, second through channel and first through channel by suction device.
Also used oral care kits in the third oral care method provided by the invention, described oral care kits comprises: the main body and the working end that is provided with second through channel that are provided with first through channel; Wherein, described main body is provided with air inlet, and described air inlet is communicated with interior first through channel that is provided with of the cavity of described main body, and the aperture of described air inlet is greater than the aperture of second through channel that is provided with in the cavity of described working end; Described working end further comprises second working end that is used to scrub first working end in oral cavity and is used to clean the oral cavity; Have at least one to be connected in described first working end and described second working end with described main body; This kind oral care method comprises: by priming device liquid is injected intraoral step through first through channel and second through channel and first liquid-leadage hole or second liquid-leadage hole; The step of the oral cavity being scrubbed by first working end; The step of the oral cavity being cleaned by second working end; Extract foreign body in mouth or hydrops out external step through first liquid-leadage hole or second liquid-leadage hole and second through channel and first through channel by suction device.
According to the preferred technical solution of the present invention: by priming device liquid is injected intraoral step through first through channel and second through channel and be specially the inlet opening of liquid being offered from described oral care kits by syringe and inject, described liquid is through first through channel and second through channel and first liquid-leadage hole or the second liquid-leadage hole inflow entrance intracavity.
After adopting technical solution of the present invention, the nursing staff of specialty can finish the mouth care to the patient with severe symptoms at short notice alone, human resources and time have been saved, and, second working end that is used to scrub first working end in oral cavity and is used to clean the oral cavity can be changed as required flexibly, makes more thorough to patient's mouth care.
[description of drawings]

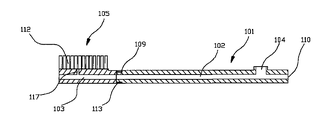

Fig. 1. oral care kits structural representation in oral care kits of the present invention and the care method;
Fig. 2. the first working end structural representation in the oral care kits;
Fig. 3. the second working end structural representation in the oral care kits;
Fig. 4. oral care kits preferred structure sketch map;
Fig. 5. oral care kits first working state schematic representation;
Fig. 6. oral care kits second working state schematic representation;
Fig. 7. first kind of oral care method flow chart in oral care kits of the present invention and the care method;
Fig. 8. second kind of oral care method flow chart in oral care kits of the present invention and the care method;
Fig. 9. the third oral care method flow chart in oral care kits of the present invention and the care method.
[specific embodiment]
Below in conjunction with accompanying drawing technical solution of the present invention is elaborated:
See also oral care kits structural representation in Fig. 1 oral care kits of the present invention and the care method.As shown in Figure 1, the invention provides a kind of oral care kits, described oral care kits comprises: the main body 101 and the working end that is provided with second through channel 103 that are provided with first through channel 102; Wherein, described main body 101 is provided with air inlet 104, described air inlet 104 is communicated with interior first through channel 102 that is provided with of the cavity of described main body 101, and the aperture of described air inlet 104 is greater than the aperture of second through channel 103 that is provided with in the cavity of described working end; Described working end further comprises second working end 106 that is used to scrub first working end 105 in oral cavity and is used to clean the oral cavity; Have at least one to be connected in described first working end 105 and described second working end 106 with described main body 101.
In Fig. 1, described main body 101 is provided with first link 109 and second link 110 that is used to be connected negative pressure suction device 111 that is used to connect described working end, the aperture of described first through channel 102 and described second through channel 103 equates that the hole heart is relative.
See also first working end, 105 structural representations in Fig. 2 oral care kits.As shown in Figure 2, described first working end 105 further comprises brush 112 and the 3rd link 113, described brush 112 is provided with first liquid-leadage hole 117, described first liquid-leadage hole 117 is communicated with described second through channel 103, and first link 109 that is provided with on described the 3rd link 113 and the described main body 101 is for removably connecting.
In the preferred technical solution of the present invention: described the 3rd link 113 and described first link 109 are for being threaded or cassette is connected.
See also the second working end structural representation in Fig. 3 oral care kits.As shown in Figure 2, described second working end 106 is provided with second liquid-leadage hole 118, described second liquid-leadage hole 118 is communicated with described second through channel 103, described second working end 106 further comprises cleans external member 114 and the 4th link 115, wherein, described scouring external member 114 is sleeved on described second working end 106 outer surfaces, and first link 109 that is provided with on described the 4th link 115 and the described main body 101 is for removably connecting.
In the preferred technical solution of the present invention: described the 4th link 115 and described first link 109 be for being threaded or cassette is connected, the external member that described scouring external member 114 can be made for sponges cover, Cotton Gossypii cover or other adsorbing material.
See also Fig. 4 oral care kits preferred structure sketch map.As shown in Figure 4, this oral care kits is on the basis of Fig. 1 structure, and described main body 101 is provided with inlet opening 107, and described inlet opening 107 is communicated with interior first through channel 102 that is provided with of the cavity of described main body 101.
In the preferred technical solution of the present invention: be provided with lid 108 on the described inlet opening 107.
See also Fig. 5 oral care kits first working state schematic representation.In Fig. 5, described oral care kits comprises: the main body 101 and first working end 105 that is provided with second through channel 103 that are provided with first through channel 102; Wherein, described main body 101 is provided with air inlet 104, described air inlet 104 is communicated with interior first through channel 102 that is provided with of the cavity of described main body 101, and the aperture of described air inlet 104 is greater than the aperture of second through channel 103 that is provided with in 105 cavitys of described first working end; Also be provided with inlet opening 107 on described main body 101, described inlet opening 107 is communicated with interior first through channel 102 that is provided with of the cavity of described main body 101.The aperture of second through channel 103 that is provided with on first through channel 102 that is provided with on the described main body 101 and described first working end 105 equates that the hole heart is relative.
When carrying out the oral cavity cleaning for the patient with severe symptoms, at first, by the syringe that is added with water or disinfectant solution aforesaid liquid is injected by described inlet opening 107, this liquid will flow into the patient oral cavity or flow out moistening bristle by described first liquid-leadage hole 117 that is provided with on the brush 112 through described second through channel 103 along described first through channel 102.At this moment, the nursing staff can take described first working end 105 of main body 101 drives of oral care kits to scrub in the patient oral cavity by hands, at this moment, described air inlet 104 is in folding condition, because the aperture of described air inlet 104 is greater than the aperture of second through channel 103 that is provided with in 105 cavitys of described first working end, so, even described negative pressure suction device 111 is in normally open at work, the intraoral hydrops of patient still can not be discharged from.When the nursing staff finds in the process of rinsing the mouth for the patient in the patient oral cavity that hydrops is more or waste liquid need be discharged when cleaning finishes, nursing staff's only with hand refers to block described air inlet 104, at this moment air inlet 104 can not be in communication with the outside, the oral care kits outer gas stream can not enter the cavity of described oral care kits by described air inlet 104, at this moment, effectively work of described negative pressure suction device 111 beginnings, captivation will enter the patient oral cavity along described first through channel 102 and described second through channel 103, and it is external that the intraoral waste liquid of patient also will be discharged the patient smoothly along described first through channel 102 and described second through channel 103.
Here need to prove, because of the aperture of described inlet opening 107 very little, so even when draining cover lid 108 not, also can not influence the operate as normal of described negative pressure suction device 111.
Scrub preceding to the patient oral cavity or scrub after also can clean by second working end 106.Operate also very simply, only need the nursing staff to be outwarded winding to be threaded again from described main body 101 in described first working end 105 and main bodys 101 are inserted in described second working end 106 get final product.Oral care kits second working state schematic representation that screws in behind second working end 106 can be consulted Fig. 6.In Fig. 6, the using method of described oral care kits is similar with the method for work under the oral care kits of introducing in Fig. 5 first duty.At first, by the syringe that is added with water or disinfectant solution aforesaid liquid is injected by described inlet opening 107, this liquid will flow into second working end 106 through described second through channel 103 along described first through channel 102, described second working end 106 is provided with second liquid-leadage hole 118, described second liquid-leadage hole 118 is communicated with described second through channel 103, by effusive liquid in described second liquid-leadage hole 118 can 106 surfaces, moistening described second working end scouring external member 114.When cleaning the patient oral cavity, can change described scouring external member 114 at any time as required.When the nursing staff finds in the process of rinsing the mouth for the patient in the patient oral cavity that hydrops is more or waste liquid need be discharged when cleaning finishes, nursing staff also only with hand refers to block described air inlet 104, at this moment air inlet 104 can not be in communication with the outside, the oral care kits outer gas stream can not enter the cavity of described oral care kits by described air inlet 104, at this moment, effectively work of described negative pressure suction device 111 beginnings, captivation will enter the patient oral cavity along described first through channel 102 and described second through channel 103, and it is external that the intraoral waste liquid of patient also will be discharged the patient smoothly along described first through channel 102 and described second through channel 103.For better drainage effect is arranged, when draining, also described scouring external member 114 can be taken off from described second working end 106.
See also first kind of oral care method flow chart in Fig. 7 oral care kits of the present invention and the care method. as shown in Figure 7, the present invention also provides a kind of oral care method, described oral care method has used oral care kits, and described oral care kits comprises: the main body 101 and the working end that is provided with second through channel 103 that are provided with first through channel 102; Wherein, described main body 101 is provided with air inlet 104, described air inlet 104 is communicated with interior first through channel 102 that is provided with of the cavity of described main body 101, and the aperture of described air inlet 104 is greater than the aperture of second through channel 103 that is provided with in the cavity of described working end; Described working end further comprises second working end 106 that is used to scrub first working end 105 in oral cavity and is used to clean the oral cavity; Have at least one to be connected in described first working end 105 and described second working end 106 with described main body 101; Described oral care method comprises: by priming device 116 liquid is injected intraoral step through first through channel 102 and second through channel 103 and first liquid-leadage hole 117; The step of scrubbing by 105 pairs of oral cavities, first working end; Extract foreign body in mouth or hydrops out external step through first liquid-leadage hole 117 and second through channel 103 and first through channel 102 by suction device 111.
By priming device 116 liquid is specially inlet opening 107 injections of liquid being offered from described oral care kits by syringe through first through channel 102 and the intraoral step of second through channel 103 injections in the preferred technical solution of the present invention shown in Figure 7, described liquid is through first through channel 102 and second through channel 103 and first liquid-leadage hole, 117 inflow entrance intracavity.
See also second kind of oral care method flow chart in Fig. 8 oral care kits of the present invention and the care method.As shown in Figure 8, the present invention also provides another kind of oral care method, described oral care method has also used oral care kits of the present invention, and this kind oral care method comprises: by priming device 116 liquid is injected intraoral step through first through channel 102 and second through channel 103 and second liquid-leadage hole 118; The step of cleaning by 106 pairs of oral cavities, second working end; Extract foreign body in mouth or hydrops out external step through second liquid-leadage hole 118 and second through channel 103 and first through channel 102 by suction device 111.
By priming device 116 liquid is injected intraoral step through first through channel 102 and second through channel 103 and second liquid-leadage hole 118 and be specially the inlet opening of liquid being offered from described oral care kits by syringe 107 and inject in the preferred technical solution of the present invention shown in Figure 8, described liquid is through first through channel 102 and second through channel 103 and second liquid-leadage hole, 118 inflow entrance intracavity.
See also the third oral care method flow chart in Fig. 9 oral care kits of the present invention and the care method.As shown in Figure 9, also used oral care kits in the third oral care method provided by the invention, this kind oral care method comprises: by priming device 116 liquid is injected intraoral step through first through channel 102 and second through channel 103 and first liquid-leadage hole or second liquid-leadage hole; The step of scrubbing by 105 pairs of oral cavities, first working end; The step of cleaning by 106 pairs of oral cavities, second working end; Extract foreign body in mouth or hydrops out external step through first liquid-leadage hole or second liquid-leadage hole and second through channel 103 and first through channel 102 by suction device 111.
The detailed process of above-mentioned oral care method can be referring to above for the related description of Fig. 5 and Fig. 6.
After adopting technical solution of the present invention, the nursing staff of specialty can finish the mouth care to the patient with severe symptoms at short notice alone, human resources and time have been saved, and, second working end 106 that is used to scrub first working end 105 in oral cavity and is used to clean the oral cavity can be changed as required flexibly, makes more thorough to patient's mouth care.
Above content be in conjunction with concrete optimal technical scheme to further describing that the present invention did, can not assert that concrete enforcement of the present invention is confined to these explanations.For the general technical staff of the technical field of the invention, without departing from the inventive concept of the premise, can also make some simple deduction or replace, all should be considered as belonging to protection scope of the present invention.
Claims (10)
1. oral care kits, it is characterized in that: described oral care kits comprises:
Be provided with the main body (101) of first through channel (102) and be provided with the working end of second through channel (103);
Wherein, described main body (101) is provided with air inlet (104), described air inlet (104) is communicated with interior first through channel (102) that is provided with of the cavity of described main body (101), and the aperture of described air inlet (104) is greater than the aperture of described second through channel (103) that is provided with in the cavity of described working end;
Described working end further comprises second working end (106) that is used to scrub first working end (105) in oral cavity and is used to clean the oral cavity;
Have at least one to be connected in described first working end (105) and described second working end (106) with described main body (101).
2. oral care kits according to claim 1 is characterized in that: described main body (101) is provided with inlet opening (107), and described inlet opening (107) is communicated with interior first through channel (102) that is provided with of the cavity of described main body (101).
3. oral care kits according to claim 2 is characterized in that: described inlet opening (107) is provided with lid (108).
4. oral care kits according to claim 2 is characterized in that: described main body (101) is provided with first link (109) and second link (110) that is used to be connected negative pressure suction device (111) that is used to connect described working end.
5. oral care kits according to claim 1, it is characterized in that: described first working end (105) further comprises brush (112) and the 3rd link (113), described brush (112) is provided with first liquid-leadage hole (117), described first liquid-leadage hole (117) is communicated with described second through channel (103), and described the 3rd link (113) is gone up described first link (109) of setting for removably connecting with described main body (101).
6. oral care kits according to claim 5 is characterized in that: described the 3rd link (113) and described first link (109) are for being threaded or cassette is connected.
7. oral care kits according to claim 1, it is characterized in that: described second working end (106) is provided with second liquid-leadage hole (118), described second liquid-leadage hole (118) is communicated with described second through channel (103), described second working end (106) further comprises cleans external member (114) and the 4th link (115), wherein, described scouring external member (114) is sleeved on the outer surface of described second working end (106), and described the 4th link (115) is gone up first link (109) of setting for removably connecting with described main body (101).
8. oral care kits according to claim 7 is characterized in that: described scouring external member (114) is sponges cover or Cotton Gossypii cover.
9. oral care method, it is characterized in that: described oral care method has used as weighing 1 described oral care kits, comprising:
By priming device (116) liquid is injected intraoral step through first through channel (102) and second through channel (103);
Step of the oral cavity being scrubbed by first working end (105) and/or the step of the oral cavity being cleaned by second working end (106);
Extract foreign body in mouth or hydrops out external step through second through channel (103) and first through channel (102) by suction device (111).
10. according to the described oral care method of claim 9, it is characterized in that: by described priming device (116) liquid is specially inlet opening (107) injection of described liquid being offered from described oral care kits by syringe through described first through channel (102) and the intraoral step of described second through channel (103) injection, described liquid is through described first through channel (102) and described second through channel (103) inflow entrance intracavity.
