Abstract

一种用于海底的电力电缆，包括由内至外设置的线芯(1)、屏蔽层(2)、绝缘(3)、绝缘体屏蔽层及内护层(4)、铠装内垫层(5)、铠装层(6)及铠装外保护层(7)，其特征在于：所述线芯(1)是由钢丝导线和铝导线组成，所述钢丝导线位于线芯(1)的中心位置，且钢丝导线与铝导线共同绞合成钢芯铝绞线结构所形成的线芯(1)。与现有技术相比，本发明采用线芯是由钢丝导线和铝导线组成，所述钢丝导线位于线芯的中心位置，且钢丝导线与铝导线共同绞合成钢芯铝绞线结构所形成的线芯。这种结构的优点在于，由铝替换了铜，不仅节省了成本，而且导电性也完全符合标准，而其中的钢丝绞铝的混合线，又能免补铝导线抗拉强度不足的问题，所以本发明制成的电缆线既降低了生产成本，而且导电性及抗拉强度均符合规定的标准。

Figure 201010134105

A power cable for the seabed, comprising a wire core (1), a shielding layer (2), insulation (3), an insulator shielding layer and an inner sheath (4), and an armored inner pad ( 5), armored layer (6) and armored outer protection layer (7), it is characterized in that: described wire core (1) is made up of steel wire conductor and aluminum wire, and described steel wire conductor is positioned at the wire core (1) The center position, and the steel wire conductor and the aluminum conductor are stranded together to form a core (1) formed by a steel-cored aluminum stranded wire structure. Compared with the prior art, the present invention uses a wire core composed of a steel wire conductor and an aluminum wire conductor, the steel wire conductor is located at the center of the wire core, and the steel wire conductor and the aluminum conductor are twisted together to form a steel-cored aluminum stranded wire structure. Core. The advantage of this structure is that copper is replaced by aluminum, which not only saves cost, but also fully meets the standard of conductivity, and the mixed wire of steel wire twisted aluminum can avoid the problem of insufficient tensile strength of aluminum wire, so The cable made by the invention not only reduces the production cost, but also the electrical conductivity and the tensile strength meet the prescribed standards.

Figure 201010134105

Description

The power cable that is used for the seabed
Technical field
The present invention relates to a kind of submarine cable technical field that is used for, especially refer to a kind of power cable that is used for the seabed.
Background technology
Existing a kind of patent No. is 200720108676.8 and is called that the Chinese utility model patent of " a kind of seabed cross-linked power cable " discloses a kind of structure, its structure comprises core, armouring inner covering, armour and the armouring outer jacket that is provided with from inside to outside, characteristics are that armour is made up of around the nonmagnetic metal silk of arranging many uniform ring, and the nonmagnetic metal silk is outside equipped with the plastics anticorrosive coat; Advantage is to substitute the zinc-coated wire sheathed structure with nonmagnetic metal silk sheathed structure both to have exempted serious eddy current, the magnetic hysteresis loss of taking the zinc-coated wire sheathed structure and producing, it is nearly 30% to make it allow ampacity to exceed than the permission ampacity of zinc-coated wire armoured cable, has guaranteed the tensile strength of seabed cross-linked power cable again; Be outside equipped with the plastics anticorrosive coat at the nonmagnetic metal silk, make nonmagnetic metal silk armoured cable place seawater for a long time and can not be corroded.But its shortcoming is it has done improvement to armour, and cost, tensile strength and the conductivity of conductor is not made improvements, so it is big to make this cable amount of copper consuming, promptly cost is higher, so its structure awaits to improve.
Summary of the invention
Technical problem to be solved by this invention is to provide at above-mentioned prior art present situation that a kind of cost of manufacture is low, cable tensile strength reaches the qualified power cable that is used for the seabed of electric conductivity greatly.
The present invention solves the problems of the technologies described above the technical scheme that is adopted: the power cable that originally is used for the seabed; comprise core, screen, insulating barrier, insulator screen and the sheath, armouring inner cushion layer, armour and the armouring external protection that are provided with from the inside to the outside; it is characterized in that: described core is made up of steel wire lead and aluminum conductor; described steel wire lead is positioned at the center of core, and steel wire lead and aluminum conductor are the formed core of steel reinforced aluminium conductor structure.
As improvement, described steel reinforced aluminium conductor structure is meant: some strands of steel wire leads are positioned at the center, and some strands of aluminum conductors are outside the steel wire lead and be twisted into the steel reinforced aluminium conductor conductor mutually.
As improvement, described screen comprises semi-conductor electricity band and conductor shield, and core is wrapped in the semi-conductor electricity band, and the semi-conductor electricity band is wrapped in the conductor shield.
Improve again, described insulator screen comprises that insulation screen, semiconductive water-blocking buffer layer, copper strips lapping layer, semiconductive water-blocking buffer layer are the insulator screen, and described sheath comprises plumbous cover and semiconductive polyethylene inner cushion layer, and it arranges routine position for being followed successively by insulation screen, semiconductive water-blocking buffer layer, copper strips lapping layer, semiconductive water-blocking buffer layer, plumbous cover and semiconductive polyethylene inner cushion layer from the inside to the outside.
Improve, described armouring inner cushion layer may be selected to be the pitch inner cushion layer of polypropylene rope as inner reinforcement again; And described armouring external protection is the pitch outer wrapping layer of polypropylene rope as inner reinforcement.
Improve, described armour is made up of many galvanized steel wire ropes again, and described galvanized steel wire rope is positioned at the structure of same periphery distribution with cross section and the protective layer that forms.
Improve, described armour is being provided with between galvanized steel wire rope every the magnetic aluminum-alloy wire again, and described galvanized steel wire rope is positioned on the same periphery with cross section every the magnetic aluminum-alloy wire.
As further improvement, also be provided with the optical cable layer between described armour and the armouring inner cushion layer, this optical cable layer comprises cable line, polyethylene interstitial wire and support aluminium alloy wire, described cable line, the cross section of polyethylene interstitial wire and support aluminium alloy wire is positioned on the same periphery, and the left side of per two cable lines is arranged in order and is the polyethylene interstitial wire, support aluminium alloy wire, the right of these two cable lines is arranged in order and is the polyethylene interstitial wire, support aluminium alloy wire, and per two cable lines and about each two polyethylene interstitial wire, the six roots of sensation line that the support aluminium alloy wire is formed consists of repetitive and rearranges the optical cable layer.
Compared with prior art, the present invention adopts core to be made up of steel wire lead and aluminum conductor, and described steel wire lead is positioned at the center of core, and steel wire lead and aluminum conductor are twisted into the formed core of steel reinforced aluminium conductor structure jointly.The advantage of this structure is, replaced copper by aluminium, not only provide cost savings, and the also complete conformance with standard of conductivity, and the blend of the strand of steel wire wherein aluminium, can exempt to mend the problem of aluminum conductor tensile strength deficiency again, so the cable that the present invention makes had both reduced production cost, and conductivity and tensile strength standard all up to specification.
Description of drawings

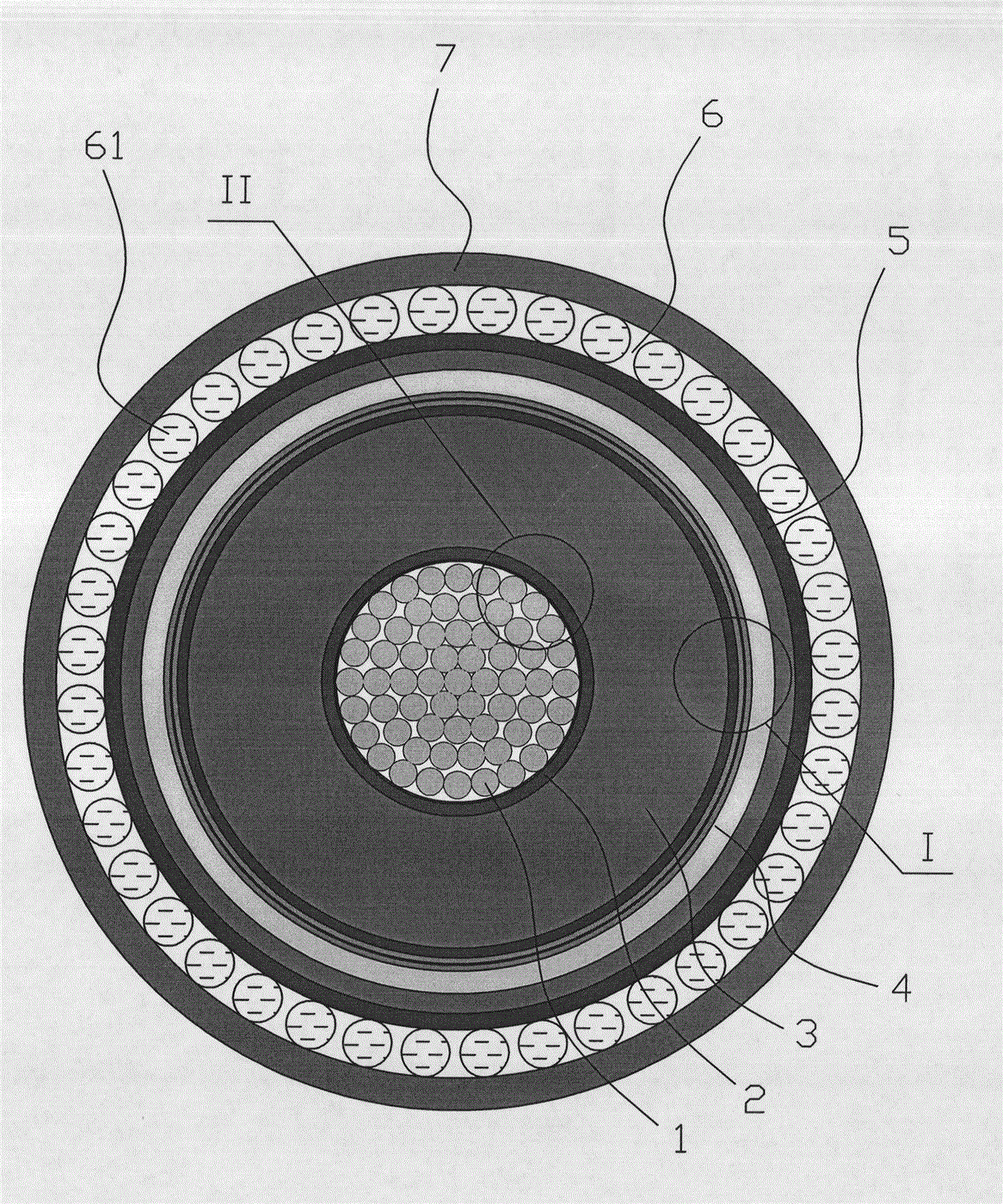

Fig. 1 is the structural representation of the embodiment of the invention;
Fig. 2 is the structural representation of the another kind of embodiment of the present invention;
Fig. 3 is the enlarged drawing of I portion among Fig. 1;
Fig. 4 is the enlarged drawing of II portion among Fig. 1;
Fig. 5 is the amplification view of local core cross section among Fig. 1.
Embodiment
Embodiment describes in further detail the present invention below in conjunction with accompanying drawing.
Embodiment one, as Fig. 1, Fig. 3, Fig. 4 and shown in Figure 5, is used for the power cable in seabed, comprises core 1, screen 2, insulating barrier 3, insulator screen and the sheath 4, armouring inner cushion layer 5, armour 6 and the armouring external protection 7 that are provided with from the inside to the outside.Armour 6 is made up of many galvanized steel wire ropes 61, and described galvanized steel wire rope 61 is positioned at the structure that same periphery distributes and the protective layer that forms with cross section.And core 1 is the mutual stranded conductor thread core that forms 1 by the blend of many aluminum conductors and the steel wire lead 11 strand aluminum conductors 11 that can increase cable tensile strength, and wherein steel wire lead 11 is positioned at the center of core 1.Screen 2 comprises semi-conductor electricity band 22 and conductor shield 21, and core 1 is wrapped in the semi-conductor electricity band 22, and semi-conductor electricity band 22 is wrapped in the conductor shield 21.And described insulator screen comprises that insulation screen 41, semiconductive water-blocking buffer layer 42, copper strips lapping layer 43, semiconductive water-blocking buffer layer 42 are the insulator screen, and described sheath 4 comprises plumbous cover 44 and semiconductive polyethylene inner cushion layer 45.It arranges routine position for being followed successively by insulation screen 41, semiconductive water-blocking buffer layer 42, copper strips lapping layer 43, semiconductive water-blocking buffer layer 42, plumbous cover 44 and semiconductive polyethylene inner cushion layer 45 from the inside to the outside.Indication armouring inner cushion layer 5 is the pitch inner cushion layer of polypropylene rope as inner reinforcement, and the armouring external protection adopts the pitch outer wrapping layer of polypropylene rope as inner reinforcement.
Embodiment two, and as shown in Figure 2, its basic structure is identical with embodiment one, and its difference is that armour 6 is being provided with every magnetic aluminum-alloy wire 9 between galvanized steel wire rope 61, and galvanized steel wire rope 61 is positioned on the same periphery with cross section every magnetic aluminum-alloy wire 9.And also be provided with optical cable layer 8 between armour 6 and the armouring inner cushion layer 5, this optical cable layer 8 comprises cable line 80, polyethylene interstitial wire 81 and support aluminium alloy wire 82, described cable line 80, the cross section of polyethylene interstitial wire 81 and support aluminium alloy wire 82 is positioned on the same periphery, and the left side of per two cable lines 80 is arranged in order and is polyethylene interstitial wire 81, support aluminium alloy wire 82, the right of these two cable lines 80 is arranged in order and is polyethylene interstitial wire 81, support aluminium alloy wire 82, and per two cable lines 80 and about each two polyethylene interstitial wire 81, the six roots of sensation line that support aluminium alloy wire 82 is formed consists of repetitive and rearranges optical cable layer 8.

Claims (9)

1.一种用于海底的电力电缆，包括由内至外设置的线芯(1)、屏蔽层(2)、绝缘层(3)、)、半导电阻水缓冲层(42)、铅套(44)及半导电聚乙烯内垫层(45绝缘体屏蔽层及内护层(4)、铠装内垫层(5)、铠装层(6)及铠装外保护层(7)，其特征在于：所述线芯(1)是由钢丝导线和铝导线组成，所述钢丝导线位于线芯(1)的中心位置，且钢丝导线与铝导线为钢芯铝绞线结构所形成的线芯(1)。1. A power cable for the seabed, comprising a wire core (1), a shielding layer (2), an insulating layer (3), ), a semiconductive resistance water buffer layer (42), and a lead sheath arranged from the inside to the outside (44) and semi-conductive polyethylene inner liner (45) insulator shielding layer and inner sheath (4), armored inner liner (5), armored layer (6) and armored outer protective layer (7), which It is characterized in that: the wire core (1) is composed of a steel wire conductor and an aluminum wire conductor, the steel wire conductor is located at the center of the wire core (1), and the steel wire conductor and the aluminum conductor are wires formed by a steel-cored aluminum stranded wire structure Core (1). 2.根据权利要求1所述用于海底的电力电缆，其特征在于：所述钢芯铝绞线结构是指：若干股钢丝导线位于中心位置，而若干股铝导线在钢丝导线外而相互绞合成钢芯铝绞线导体。2. The power cable for seabed according to claim 1, characterized in that: the structure of the aluminum-steel-reinforced wire refers to: several strands of steel wire conductors are located at the center, and several strands of aluminum conductors are twisted outside the steel wire conductors Composite aluminum conductors with steel cores. 3.根据权利要求1所述用于海底的电力电缆，其特征在于：所述屏蔽层(2)包括半导体电带(22)及导体屏蔽层(21)，线芯(1)被包裹于半导体电带(22)中，而半导体电带(22)被包裹于导体屏蔽层(21)中。3. The power cable for seabed according to claim 1, characterized in that: the shielding layer (2) comprises a semiconductor electrical tape (22) and a conductor shielding layer (21), and the wire core (1) is wrapped in a semiconductor In the electric tape (22), and the semiconductor electric tape (22) is wrapped in the conductor shielding layer (21). 4.根据权利要求1所述用于海底的电力电缆，其特征在于：所述绝缘体屏蔽层包括绝缘屏蔽层(41)、半导电阻水缓冲层(42)、铜带绕包层(43)、半导电阻水缓冲层(42)为绝缘体屏蔽层，而所述内护层(4)包括铅套(44)及半导电聚乙烯内垫层(45)，其排例位置为由内至外依次为绝缘屏蔽层(41)、半导电阻水缓冲层(42)、铜带绕包层(43)。4. The power cable for seabed according to claim 1, characterized in that: the insulator shielding layer comprises an insulating shielding layer (41), a semi-conductive resistance water buffer layer (42), a copper tape wrapping layer (43) 1. The semiconductive resistance water buffer layer (42) is an insulator shielding layer, and the inner protective layer (4) includes a lead sleeve (44) and a semiconductive polyethylene inner cushion layer (45), and its arrangement position is from inside to The outer layer is an insulating shielding layer (41), a semiconducting resistance water buffer layer (42), and a copper tape wrapping layer (43). 5.根据权利要求1所述用于海底的电力电缆，其特征在于：所述铠装内垫层(5)为聚丙烯绳作为内部加强筋的沥青内垫层。5 . The power cable for seabed according to claim 1 , characterized in that: the armored inner cushion ( 5 ) is an asphalt inner cushion with polypropylene ropes as internal reinforcing ribs. 6 . 6.根据权利要求1所述用于海底的电力电缆，其特征在于：所述铠装外保护层为聚丙烯绳作为内部加强筋的沥青外包裹层。6 . The power cable for seabed according to claim 1 , characterized in that: the armored outer protective layer is an asphalt outer wrapping layer with polypropylene ropes as internal reinforcements. 7 . 7.根据权利要求1至6中任一权利要求所述用于海底的电力电缆，其特征在于：所述铠装层(6)由多根镀锌钢丝绳(61)组成，所述镀锌钢丝绳(61)以横截面位于同一圆周面分布的结构而形成的保护层。7. The power cable for seabed according to any one of claims 1 to 6, characterized in that: the armor layer (6) is composed of a plurality of galvanized steel wire ropes (61), and the galvanized steel wire ropes (61) A protective layer formed with a structure in which the cross sections are located on the same circumferential surface. 8.根据权利要求7所述用于海底的电力电缆，其特征在于：所述铠装层(6)在位于镀锌钢丝绳(61)之间设置有隔磁铝合金丝(9)，所述镀锌钢丝绳(61)与隔磁铝合金丝(9)的横截面位于同一圆周面上。8. The power cable for seabed according to claim 7, characterized in that: said armor layer (6) is provided with a magnetic isolation aluminum alloy wire (9) between galvanized steel wire ropes (61), said The cross-sections of the galvanized steel wire rope (61) and the magnetic isolation aluminum alloy wire (9) are located on the same circumferential surface. 9.根据权利要求7所述用于海底的电力电缆，其特征在于：所述铠装层(6)与铠装内垫层(5)之间还设置有光缆层(8)，该光缆层(8)包括光缆线(80)、聚乙烯填充线(81)及支撑铝合金线(82)，所述光缆线(80)、聚乙烯填充线(81)及支撑铝合金线(82)的横截面位于同一圆周面上，且每两根光缆线(80)的左边依次排列为聚乙烯填充线(81)、支撑铝合金线(82)，该两根光缆线(80)的右边依次排列为聚乙烯填充线(81)、支撑铝合金线(82)，且每两根光缆线(80)及左右各两根聚乙烯填充线(81)、支撑铝合金线(82)所组成的六根线组成为重复单元而排列组成光缆层(8)。9. The power cable for seabed according to claim 7, characterized in that: an optical cable layer (8) is also arranged between the armored layer (6) and the armored inner pad (5), and the optical cable layer (8) Including optical cable (80), polyethylene filling wire (81) and supporting aluminum alloy wire (82), described optical cable (80), polyethylene filling wire (81) and supporting aluminum alloy wire (82) The cross sections are located on the same circumferential surface, and the left sides of every two optical cables (80) are arranged in sequence as polyethylene filling wires (81) and supporting aluminum alloy wires (82), and the right sides of the two optical cables (80) are arranged in sequence It is composed of polyethylene filling wire (81), supporting aluminum alloy wire (82), and every two optical cables (80) and two polyethylene filling wires (81) on the left and right, and supporting aluminum alloy wire (82). The wire groups are arranged as repeating units to form an optical cable layer (8).
