Abstract

The utility model relates to a checking tool for a tubular beam of an automobile, which comprises a base and a bracket. A bracket is arranged above the base, and a clamp and a checking tool are arranged on the bracket. The base is made of metal in a rectangular parallelepiped structure, and a bracket made of metal is arranged above the base. Stands are set at different heights. Front row supports, middle row supports and rear row supports which gradually decrease in height are arranged in sequence from back to front above the base. The rear row bracket is divided into a middle part and two side parts; the middle part is equipped with inspection tools, and the two sides of the rear row bracket are equipped with clamps for fixing the tubular beam; the middle row bracket and the front row bracket are equipped with inspection tools. The front of the front row bracket is provided with a dowel bracket for installing dowel pins. The invention is provided with a clamp and a checking tool, and the clamp clamps the tubular beam, and if the checking tool fails to meet the requirements, it is immediately modified, thereby reducing the displacement of the tubular beam and improving work efficiency. The invention has the advantages of good overall strength, good dimensional stability and improved detection efficiency.

Description

A Checking Fixture for Automobile Tubular Beams

technical field

The invention relates to a checking tool, in particular to a checking tool for a tubular beam of an automobile, and belongs to the technical field of automobile tooling.

Background technique

With the development of the economy and the improvement of living standards, the use of automobiles is increasing year by year. The relationship between vehicles and human beings is really inseparable, and between vehicle manufacturers, vehicle component manufacturers and drivers, not only the performance, safety and fuel-saving effect of the vehicle itself are pursued, but also the components of the vehicle are becoming more and more important. Pay attention.

The beam is a key component of the car, especially the beam of the dashboard of the car. The beam of the dashboard of the car is an important part to ensure the stable and reliable use of various instruments of the car, including the beam, the metal sheet and the mounting hole. The high-speed rotation of the high-power engine and the harsh road conditions of the vehicle are likely to cause strong vibration and jolts to the cab, resulting in disconnection or failure of the instrument circuit and some functions in the front control panel.

Because the tubular beam has good compression resistance, many cars now use tubular beams, such as the T250 tubular beam, as shown in Figure 1, the T250 beam is in the shape of a "T" shape and is made of metal. , including the main part of the beam, the middle part of the beam and the side part of the beam.

The main part of the beam is a horizontal tubular structure, the middle of the main part of the beam is raised, and the main part of the beam is provided with installation holes.

The middle part of the crossbeam is connected with the vertical ladder-like structure. The middle part of the crossbeam includes two vertical metal frames, and the ends of the metal frames are close to the middle; the two vertical metal frames are connected to the horizontal metal sheet, and the metal sheet is provided with installation holes.

The two sides of the main part of the beam are longitudinal side parts of the beam, the side parts of the beam are connected with the metal sheet, and installation holes are arranged on the side part of the beam and the metal sheet.

Shape correction means that after the workpiece has gone through various stamping processes, because its dimensional accuracy and surface shape cannot meet the requirements of the part, at this time, it is necessary to pass a special mold on the basis that its shape and size are already close to the requirements of the part. It is a stamping processing method that causes little plastic deformation to obtain qualified parts. The purpose of shape correction is to trim the unevenness or arc of the workpiece surface to meet the requirements of the drawing. Generally speaking, for stamping parts with high surface shape and size requirements, shape correction is often required. Shape correction is widely used in machinery manufacturing fields such as automobiles.

Fixtures and checking fixtures are often used in form correction work. The traditional fixture is made of a steel plate or steel pipe welded base and a metal bracket as structural parts. Due to the use of an integral steel plate or steel pipe welded structure, the fixture is very heavy and difficult to move. The traditional shape correction method is to use the inspection tool to inspect the beam. If the pin gauge can pass through the mounting hole on the beam and conforms to the hole diameter, the product is qualified. If the gauge pin cannot pass through the mounting hole on the beam, it needs to be fixed on the On the jig, use the tool, and make corrections. Due to the large size and weight of the tubular beam, it is inconvenient to move. This process needs to go through two processes of inspection tools and fixtures, which takes double the time and is time-consuming and labor-intensive.

Contents of the invention

The technical problem to be solved by the present invention is to provide a checker for automobile tubular beams, so as to solve many shortcomings of the existing checker. The invention is suitable for correcting the shape of tubular beams.

The technical problem to be solved in the present invention can be realized through the following technical solutions:

The utility model relates to a checking tool for a tubular crossbeam of an automobile, which includes a base and a bracket, and a bracket is arranged above the base, and is characterized in that a clamp and a checking tool are arranged on the bracket.

The base is made of metal in a cuboid structure, and a bracket made of metal is arranged above the base.

The brackets are set at different heights; the brackets are fixed on the base by bolts, and the positions of the brackets on the base are adjusted according to actual needs.

A rear row of supports, a middle row of supports and a front row of supports whose height gradually decreases are successively arranged above the base from back to front.

The rear row bracket is divided into a middle part and two side parts; the middle part is provided with inspection tools, and the two sides of the rear row bracket are provided with clamps for fixing the tubular beam;

Checking fixtures are set on the middle row of brackets;

Checking fixtures are arranged on the front row of brackets.

The clamp includes a clip, a lock, a handle, a protrusion and a clamp fixing part, the clamp fixing part is fixed on a metal bracket, the clip and the clamp fixing part are arranged to be rotationally connected, a handle is arranged above the clip, and the A rotating shaft is set at the connection between the clip and the handle, a lock is set at the end of the clip, and a protrusion is provided on the fixture fixing part; push the handle, turn the clip, and the lock on the clip is locked on the protrusion on the fixture fixing part below.

The checking tool includes gauge pins, springs, guide rails and checking tool fixing parts. The checking tool fixing parts are fixed on metal brackets. Guide rails are arranged on the checking tool fixing parts. pin, and a spring is arranged between the gauge pin and the guide rail.

Positioning pins are arranged above the base.

A locating pin bracket is arranged in front of the front row bracket, and a locating pin is arranged above the locating pin bracket.

The locating pin includes a metal rod, a connecting wire, and a locating pin fixing part, and the locating pin fixing part is fixed on the locating pin bracket; the locating pin bracket is arranged as a barrel-shaped structure, and the metal rod that plays a positioning role is accommodated in the middle, and the metal rod The bar is tied with a connecting iron wire, and the other end of the connecting iron wire is connected with the positioning pin bracket.

Instructions:

(1) Put the tubular crossbeam on the rear bracket, and fix the side parts of the crossbeam at the corresponding position with the clamp;

(2) Use the inspection tool to detect and press down the pin gauge;

(3) Check the results, the pin gauge of the inspection tool can pass through the installation hole of the tubular beam, and the product meets the requirements; the pin gauge of the inspection tool cannot pass through the installation hole of the tubular beam, and use tools to adjust the installation hole;

(4) Use the inspection tool to test again. The pin gauge of the inspection tool can pass through the installation hole set by the tubular beam, and the product meets the requirements.

Beneficial effect:

The invention is provided with a clamp and a checking tool, the clamp clamps the tubular beam, and the checking tool detects whether the installation hole meets the requirements, and if it does not meet the requirements, it is immediately modified, which reduces the displacement of the tubular beam and improves the working efficiency.

The invention has the advantages of good overall strength, good dimensional stability and improved detection efficiency.

Description of drawings

The present invention will be further described below in conjunction with the accompanying drawings and specific embodiments.

Fig. 1 is a structural schematic diagram of the present invention.

Fig. 2 is a schematic diagram of the clamp structure of the present invention.

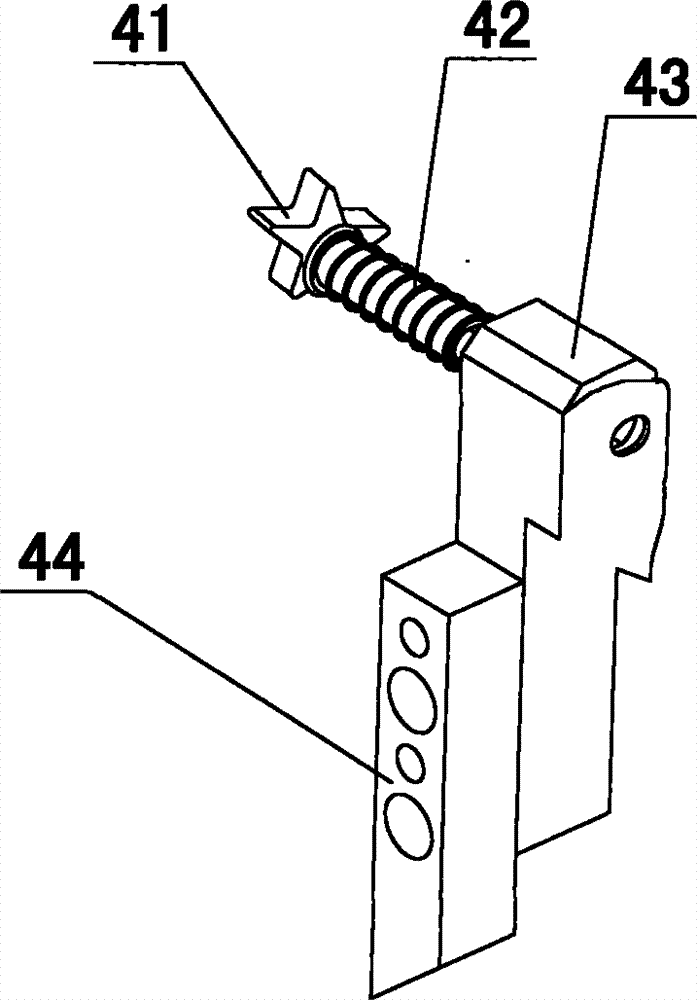

Fig. 3 is a schematic structural diagram of the inspection tool of the present invention.

Description of drawings: base 1, bracket 2, rear row bracket 21, middle row bracket 22, front row bracket 23, positioning pin bracket 24, clamp 3, clip 31, lock 32, handle 33, clamp fixing part 34, and Protrusion 35, checking tool 4, gauge pin 41, spring 42, guide rail 43, checking tool fixing part 44, positioning pin 5, metal bar 51, connecting iron wire 52, positioning pin fixing part 53, tubular beam 6.

Detailed ways

In order to make the technical means, creative features, goals and effects of the present invention easy to understand, the present invention will be further described below in conjunction with specific illustrations.

As shown in FIG. 1 , a checking tool for a tubular beam of an automobile includes a base 1 and a bracket 2 .

The base 1 is made of metal and has a cuboid structure, and a bracket 2 made of metal is arranged above the base 1 .

The bracket 2 is set at different heights; the bracket 2 is fixed on the base by bolts, and the position of the bracket 2 on the base 1 can be adjusted according to actual needs.

A rear row of supports 21 , a middle row of supports 22 and a front row of supports 23 , whose height gradually decreases, are successively arranged on the top of the base 1 from the back to the front.

The rear bracket is divided into a middle part and two side parts; the middle part is provided with inspection tools 4, and the two sides of the rear row bracket are provided with clamps 3 for fixing the tubular beam 6; the middle row bracket is provided with inspection tools 4; With 4.

The clamp 3 includes a clip 31, a lock catch 32, a handle 33, a protrusion 35 and a clamp fixing part 34, the clamp fixing part 34 is fixed on the metal bracket 2, the clamp 31 and the clamp fixing part 34 are arranged to be rotationally connected, and a handle is arranged above the clamp 31 33. The handle 33 is made of red plastic and has a rod-like structure, which is convenient to hold by hand. A rotating shaft is set at the connection between the clip 31 and the handle 33. The end of the clip 31 is provided with a lock 34, and the protrusion 35 provided on the clamp fixing part 34; push The handle 33 rotates the clip 31 , and the lock 32 on the clip 31 is locked under the protrusion 35 on the clip fixing part 34 .

The checking tool 4 includes a gauge pin 41, a spring 42, a guide rail 43 and a checking tool fixing part 44. The checking tool fixing part 44 is fixed on the metal bracket 2, and a guide rail 43 is set on the checking tool fixing part 44, and the middle of the guiding rail 43 is used for testing The gauge pin 41, a spring 42 is set between the gauge pin 41 and the guide rail 43, and a five-pointed star-shaped cover made of red plastic is set on the gauge pin 41, which is convenient to hold by hand, plays an anti-skid role, and is also convenient to distinguish from the fixture open.

The front of the front row support 23 is provided with a positioning pin support 24 , and the positioning pin 5 is provided above the positioning pin support 24 . The positioning pin 5 is also arranged above the base 1 .

Alignment pin 5 comprises metal bar 51, connecting iron wire 52, alignment pin holder 53, and alignment pin holder 53 adopts metal to be fixed on the alignment pin support; It is a barrel-shaped structure, containing a metal rod 51 for positioning in the middle. The metal rod 51 is provided with a hole, and the connecting wire 52 is tied to the hole of the metal rod 51. The other end of the connecting wire 52 is connected with the positioning pin bracket 24. A hanging tag with a logo is arranged on the connecting iron wire 52 to distinguish different positioning pins 5, and the positioning pins 5 will not be confused or lost.

Instructions:

(1) Put the tubular crossbeam 6 on the rear bracket, and fix the side parts of the crossbeam at the corresponding position with the clamp;

(2) Use the inspection tool 4 to detect, and press down the pin gauge 41;

(3) Check the results, the pin gauge 41 of the inspection tool can pass through the installation hole provided by the tubular beam 6, and the product meets the requirements; the pin gauge 41 of the inspection tool 4 cannot pass through the installation hole provided by the tubular beam 6, use the tool Adjust the mounting hole;

(4) Test with the inspection tool 4 again, the pin gauge of the inspection tool 4 can pass through the installation hole provided by the tubular crossbeam 6, and the product meets the requirements.

The present invention is provided with a clamp 3 and a checking tool 4. The clamp 3 clamps the tubular beam 6, and the checking tool 4 detects whether the installation hole meets the requirements. If it does not meet the requirements, it is immediately modified, which reduces the displacement of the tubular beam 6 and improves the work efficiency. efficiency. The invention has the advantages of good overall strength, good dimensional stability and improved detection efficiency.

The basic principles, main features and advantages of the present invention have been shown and described above. Those skilled in the industry should understand that the present invention is not limited by the above-mentioned embodiments, and that described in the above-mentioned embodiments and the description only illustrates the principles of the present invention, and the present invention also has various aspects without departing from the spirit and scope of the present invention. Variations and improvements all fall within the scope of the claimed invention. The protection scope of the present invention is defined by the appended claims and their equivalents.

Claims (3)

1. A checker for a tubular crossbeam of an automobile, comprising a base and a bracket, and a bracket is set above the base, and it is characterized in that: a clamp and a checker are set on the bracket, and the height is set sequentially from back to front above the base Gradually lowered rear row brackets, middle row brackets and front row brackets, the rear row brackets are divided into a middle part and two side parts; the middle part is provided with inspection tools, and the two sides of the rear row brackets are provided with clamps for fixing tubular beams; Checking tools are arranged on the bracket in the middle row; the checking tools include gauge pins, springs, guide rails and checking tool fixing parts, the checking tool fixing parts are fixed on the bracket, guide rails are arranged on the checking tool fixing parts, and the guide rails The gauge pin used for detection is penetrated in the middle, and a spring is arranged between the gauge pin and the guide rail; the clamp includes a clip, a lock, a handle, a protrusion and a clamp fixture, and the clamp fixture is fixed on the bracket. The clip and the fixture fixing part are arranged to be rotationally connected, a handle is set above the clip, a rotating shaft is set at the connection between the clip and the handle, a lock is set at the end of the clip, and a protrusion is set on the fixture fixing part; handle, turn the clip, and the snap lock on the clip is locked under the protrusion on the clip fixture; a positioning pin bracket is arranged in front of the front row bracket, and a positioning pin is arranged above the positioning pin bracket, and the positioning pin includes a metal Rod, connecting iron wire, positioning pin fixing part, the positioning pin fixing part is fixed on the positioning pin bracket; the positioning pin bracket is set as a barrel structure, and the metal rod that plays a positioning role is accommodated in the middle, and the connecting iron wire is tied on the metal rod, The other end of the connecting iron wire is connected with the positioning pin bracket. 2. A checking device for a tubular beam of an automobile according to claim 1, wherein the base is made of metal and has a cuboid structure, and the bracket is a bracket made of metal. 3. The inspection fixture according to claim 1, wherein the bracket is fixed on the base by bolts.
