CN101797877A - Rain sheltering air curtain for bus doors - Google Patents
Rain sheltering air curtain for bus doors Download PDFInfo
- Publication number
- CN101797877A CN101797877A CN 201010123673 CN201010123673A CN101797877A CN 101797877 A CN101797877 A CN 101797877A CN 201010123673 CN201010123673 CN 201010123673 CN 201010123673 A CN201010123673 A CN 201010123673A CN 101797877 A CN101797877 A CN 101797877A
- Authority
- CN
- China
- Prior art keywords
- bus
- air curtain
- air
- rain sheltering
- outlet device
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Pending
Links
Images
Landscapes
- Air-Conditioning For Vehicles (AREA)
Abstract
The invention discloses a rain sheltering air curtain for bus doors, which belongs to the technical field of a convenient assistant device of a bus and aims to overcome the defect that a rain canopy is not arranged between a traditional bus shelter and a bus door. The rain sheltering air curtain comprises an air outlet device and an air supply device, wherein the air outlet device is arranged above the bus door and an air outlet direction is horizontal or oblique upwards. The rain sheltering air curtain increases fewer apparatuses, has convenient installation, and is suitable for reforming a traditional bus and increasing the apparatuses of a new bus.
Description
Technical field
The present invention relates to the convenience-for-people auxiliary device technical field of bus, particularly relate to a kind of rain sheltering air curtain for bus doors.
Background technology
Along with the raising of social civilization degree, people-oriented for various common facilitiess, for people provide comfortable, convenient, safe condition as much as possible.With bus involved in the present invention, air-conditioning is arranged in the car, cool in summer and warm in winter, the bus shelter of having waited, a lot of cities also are provided with vehicle apart from station information display screen or the like at bus shelter.But, on this section small distance between bus shelter and the car door, can't establish the screening rain cover, when raining the weather of snow, to be subjected to the invasion and attack of sleet unavoidably.
Summary of the invention
The purpose of this invention is to provide a kind of rain sheltering air curtain for bus doors, overcome and between bus shelter and car door, do not establish the deficiency that hides rain cover at present.
The present invention is achieved by following technical proposals.
The present invention includes wind outlet device, air supply device, wind outlet device are loaded on the car door top, and the direction of air-out is level or oblique top.
Described air supply device can be a blower fan, is loaded on the two ends of wind outlet device, and the power supply of blower fan adopts the storage battery in the car, and master cock is located at operator's compartment and is controlled by chaufeur, is connected by electric wire between blower fan, master cock and the power supply.The wind-force of wind outlet device also can be provided by the compressed air tank in the car, and compressed air tank can be ad hoc, also can piece together usefulness with other facility, between compressed air tank and the wind outlet device pipeline is housed, and adorns electromagnetic valve on the pipeline, and the purpose of dress electromagnetic valve is for the convenient control of chaufeur.
The intent of the present invention is very obvious, because the direction of wind outlet device air-out is level or oblique top, original like this raindrop or the snowflake that will fall car door mouth place blocked by air curtain, and blowed to by wind-force on the screening rain cover of bus shelter, make this small pieces place of car door mouth exempt from the sleet invasion and attack, allow the people that get on or off the bus to close one's umbrella at leisure or to open an umbrella.
The invention has the beneficial effects as follows:
In the sleet sky, up and down during bus, this segment distance between car door and bus shelter is attacked by sleet no longer people.
Description of drawings

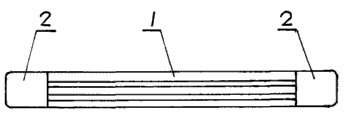

Fig. 1 is the present invention's effect scheme drawing in use; Structural representation when Fig. 2 is blower fan for air supply device of the present invention; Structural representation when Fig. 3 is compressed air tank for air supply device of the present invention.Among the figure: 1, wind outlet device, 2 blower fans, 3, compressed air tank, 4, pipeline, 5, electromagnetic valve, 6, bus, 7, bus shelter hides rain cover.
The specific embodiment
The invention will be further described below in conjunction with accompanying drawing and the specific embodiment.
Fig. 2 and Fig. 3 are concerning the personnel of present technique field, very simple and clear, so no longer repeat, only Fig. 1 is stated as follows below: wind outlet device 1 is loaded on the car door top of bus, when bus 6 stops on-board and off-board in the sleet sky, chaufeur can be opened master cock, wind outlet device 1 promptly has wind to go out, and forms one air curtain, and raindrop that fall or snowflake are under wind blows, all float towards bus shelter hide rain cover 7 above, make car door mouth one small pieces place exempt from the sleet invasion and attack.
Claims (3)
1. a rain sheltering air curtain for bus doors comprises wind outlet device, and air supply device is characterized in that, wind outlet device is loaded on the car door top, and the direction of air-out is level or oblique top.
2. a kind of rain sheltering air curtain for bus doors according to claim 1 is characterized in that, described air supply device is a blower fan, and described blower fan is loaded on the two ends of described wind outlet device, is connected by electric wire between blower fan, master cock and the power supply.
3. a kind of rain sheltering air curtain for bus doors according to claim 1 is characterized in that, described air supply device is a compressed air tank, between described compressed air tank and the described wind outlet device pipeline is housed, and electromagnetic valve is housed on the pipeline.
