Abstract
本发明公开了一种自位型辊式楔横轧机，包括机架、上轧辊、下轧辊和用于带动上轧辊上下移动的驱动装置，上轧辊的两端设置有上轴承座，下轧辊的两端设置有下轴承座，下轴承座的上端固定设置有预应力支座，预应力支座上螺接有调节杆，特点是下轴承座的下端与机架之间设置有第一自位调节装置，调节杆与上轴承座的下端面之间设置有第二自位调节装置，上轴承座的上端面与驱动装置之间设置有第三自位调节装置，其中位于操作侧的上轴承座的侧面、下轴承座的侧面均与机架之间设置有结构相同的轴向自位调节装置；优点是使轧机工作时轴承载荷均匀，保证了轴承的设计寿命，而且轧制出的轧件内部组织均匀，提高了轧制的精度和产品质量，实现轴类零件的楔横轧轧制的规模化生产。
The invention discloses a self-positioning roller type cross wedge rolling mill, which comprises a machine frame, an upper roller, a lower roller and a driving device for driving the upper roller to move up and down. There are lower bearing seats at both ends, and the upper end of the lower bearing seat is fixed with a prestressed support, and an adjusting rod is screwed on the prestressed support. Adjustment device, a second self-positioning adjustment device is provided between the adjustment rod and the lower end surface of the upper bearing seat, and a third self-positioning adjustment device is provided between the upper end surface of the upper bearing seat and the driving device, in which the upper bearing on the operating side The side of the seat, the side of the lower bearing seat and the machine frame are equipped with an axial self-positioning adjustment device with the same structure; the advantage is that the bearing load is uniform when the rolling mill is working, ensuring the design life of the bearing, and the rolled rolling The internal structure of the parts is uniform, the rolling precision and product quality are improved, and the large-scale production of cross wedge rolling of shaft parts is realized.
Description
Technical field
The present invention relates to a kind of plastic forming equipment of axial workpiece, relate in particular to a kind of self-potential roller-type cross wedge rolling mill.
Background technology
Cross wedge rolling is a kind of New Forming Process of axial workpiece, has advantages such as efficient, material-saving, has at home and abroad obtained using more widely.And along with the continuous development of cross wedge rolling technology, but the scope of its rolled products is also more and more big, and can rolling automobile axle shaft and railway vehicle axle etc. as adopting the Multi-wedge Cross Wedge Rolling simultaneous techniques.But because the roll barrel that longaxones parts such as rolling automobile axle shaft need is longer; The roll system strain of cross wedge rolling machine is bigger in the operation of rolling; The bearing load unbalance loading that causes milling train, bearing life be far below projected life, but also can cause rolled piece discontinuity in the operation of rolling; Make the rolled piece interior tissue inhomogeneous, thereby produce defectives such as rolled piece is loose with distortion.Therefore, present cross wedge rolling machine both domestic and external is difficult to satisfy the axial workpiece that longaxones parts or rolls many and carries out the rolling large-scale production of cross wedge rolling.
Summary of the invention
Technical problem to be solved by this invention provides a kind of when rolling axial workpiece; Can guarantee bearing load evenly, the rolled piece interior tissue is even, realizes that longaxones parts or rolls the self-potential roller-type cross wedge rolling mill that many axial workpiece carries out the rolling large-scale production of cross wedge rolling.
The present invention solves the problems of the technologies described above the technical scheme that is adopted: a kind of self-potential roller-type cross wedge rolling mill; Comprise frame, topping roll, bottom roll and be used to drive the drive unit that described topping roll moves up and down; The two ends of described topping roll are provided with top chock; The two ends of described bottom roll are provided with step; The upper end of described step is set with the prestressing force bearing; Be bolted with adjusting rod on the described prestressing force bearing, be provided with the first self-alignment adjusting device between the lower end of described step and the described frame, be provided with the second self-alignment adjusting device between the lower surface of described adjusting rod and described top chock; Be provided with the 3rd self-alignment adjusting device between the upper surface of described top chock and the described drive unit, wherein all with between the described frame be provided with the identical axial self-alignment adjusting device of structure in the side of the top chock of fore side, the side of step.
The described first self-alignment adjusting device comprises first attachment screw and the last convex globoidal piece, concave-concave cambered surface piece and the following convex globoidal piece that superpose and place successively from bottom to up; Described upward convex globoidal piece and the described cambered surface of convex globoidal piece down match with the cambered surface of described concave-concave cambered surface piece respectively; Described convex globoidal piece down is supported on the lower surface of described step; The described convex globoidal piece of going up is placed on the described frame; Described first attachment screw passes described convex globoidal piece, concave-concave cambered surface piece and last convex globoidal piece down successively with the fit system of matched in clearance, and the described center of circle of convex globoidal piece down and the axle center of described bottom roll coincide.
Described axial self-alignment adjusting device comprises the axial self-alignment piece of
type and is fixedly installed on the baffle plate on the described frame; The both sides of described step are wholely set the straight pin concentric with the axle center of described bottom roll; The plane of structure of described axial self-alignment piece is provided with circular hole; Described straight pin and described circular hole matched in clearance, the vertical face of described axial self-alignment piece is plugged between described baffle plate and the described frame.
Be provided with copper shoe between the plane of structure of described axial self-alignment piece and the described frame, described copper shoe is fixedly connected on the described axial self-alignment piece, makes axial self-alignment piece rub resistance, does not need frequent replacing.
The described second self-alignment adjusting device comprises the locating piece of second attachment screw, first time protruding sphere piece, the first concave-concave sphere piece and band convex edge; The upper end of described adjusting rod has been wholely set the first epirelief sphere piece; The described first concave-concave sphere piece is arranged between the described first epirelief sphere piece and the described first time protruding sphere piece; The sphere of the described first epirelief sphere piece and described first time protruding sphere piece matches with the sphere of the described first concave-concave sphere piece respectively; The convex edge of described locating piece is connected on the axle journal between described first epirelief sphere piece and the described adjusting rod; Described locating piece is fixedly connected through described second attachment screw with described first time protruding sphere piece; Be provided with the gap between the described first epirelief sphere piece, the described first concave-concave sphere piece and the described locating piece, described first time protruding sphere piece is supported on the lower surface of described top chock.
Described drive unit is arranged on the top of described top chock; Described drive unit comprises worm gear, worm screw, screw mandrel and is fixedly installed on the drive motors on the described housiung separator; Described worm screw is fixedly connected with the output shaft of described drive motors, and described worm gear is meshed with described worm screw, and described screw mandrel is fixedly connected with described worm gear is coaxial; Be set with transmission nut in the described frame, described screw mandrel and described transmission nut are spirally connected.
Described the 3rd self-alignment adjusting device comprises gland, snap ring and is arranged on the second epirelief sphere piece, the second concave-concave sphere piece in the described gland; Described gland is fixedly connected on the upper surface of described top chock; The described second epirelief sphere piece is pressed on the upper surface of described top chock; The lower end of described screw mandrel has been wholely set protruding sphere piece second time; The described second concave-concave sphere piece is arranged between the described second epirelief sphere piece and the described second time protruding sphere piece; The sphere of the described second epirelief sphere piece and described second time protruding sphere piece matches with the sphere of the described second concave-concave sphere piece respectively; Described snap ring is connected on the axle journal between described second time protruding sphere piece and the described screw mandrel; Described snap ring is fixedly connected on the upper surface of described gland, is provided with the gap between the described second epirelief sphere piece, the described second concave-concave sphere piece, described second time protruding sphere piece and the described gland, and the centre of sphere of the described second epirelief sphere piece and the axle center of described topping roll coincide.
Be connected easy disassembly through dovetail groove between the upper end of described prestressing force bearing and described step.
The self-alignment principle of milling train is when upper and lower roll receives the roll-force effect and produces the elastic bending deflection deformation among the present invention, and upper and lower bearing block is followed inclination and the wallowing motion of roller curve; And when upper and lower roll unloads, leaning on the elastic return of roll to make roller curve revert to horizontal line, upper and lower bearing block is followed and is set back.
Compared with prior art; Advantage of the present invention is to make milling train possess the self-alignment regulatory function through the self-alignment adjusting device is set on milling train; Thereby bearing load is even when having guaranteed milling train work, guaranteed the projected life of bearing, and the rolled piece interior tissue that rolls out is even; Improve rolling precision and product quality, realized the rolling large-scale production of cross wedge rolling that longaxones parts or rolls many axial workpieces.
Description of drawings
Fig. 1 is the leverage sketch of the present invention under Light Condition;
Fig. 2 is the leverage sketch of the present invention under as-rolled condition;

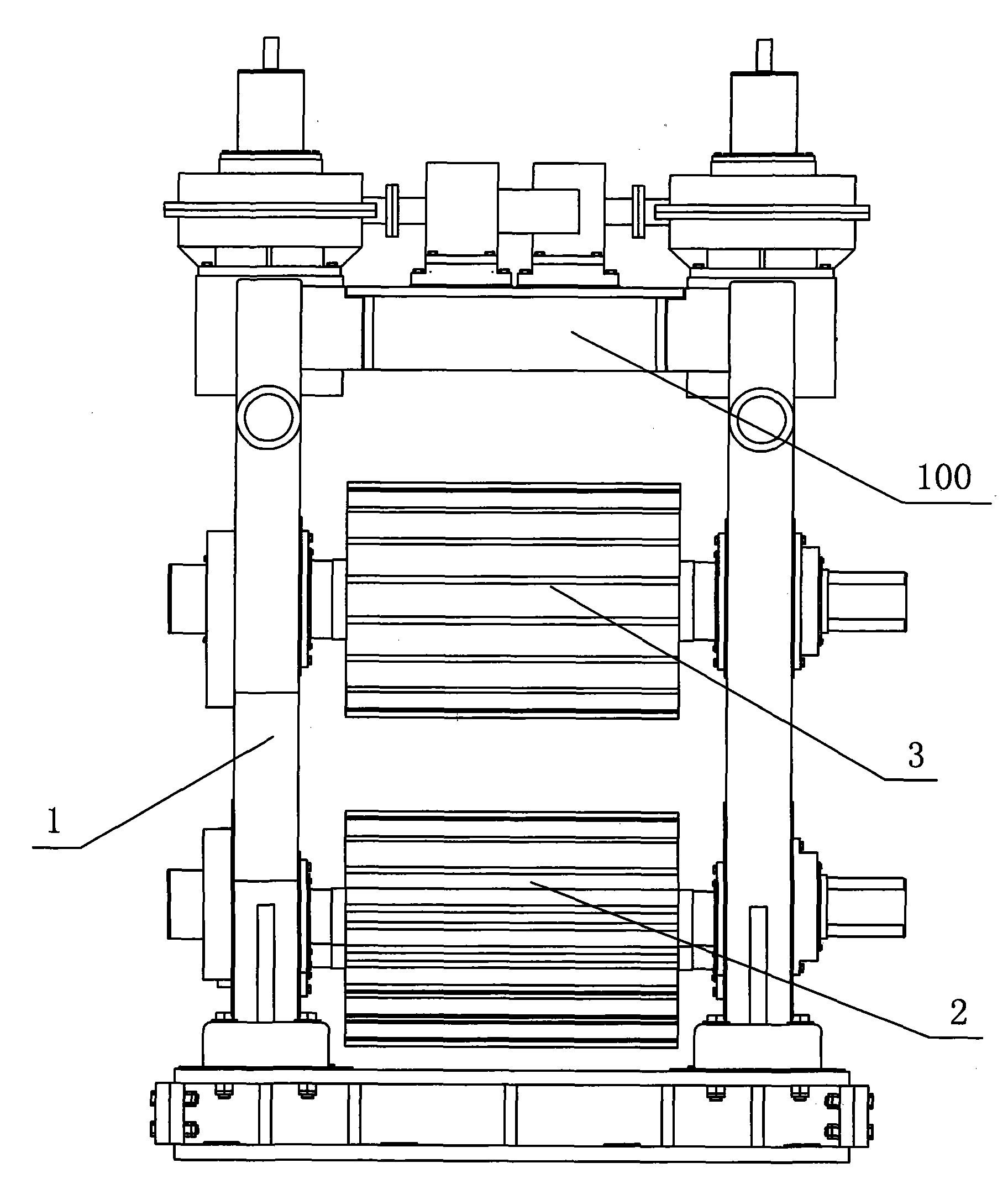

Fig. 3 is a front view of the present invention;
Fig. 4 is a side view of the present invention;
Fig. 5 is the structural representation of drive unit of the present invention;
Fig. 6 is the front view of the upper and lower roll system of the present invention;
Fig. 7 is the side view of the upper and lower roll system of the present invention;
Fig. 8 is the vertical view of bottom roll of the present invention system;
Fig. 9 is the enlarged diagram at A place among Fig. 7;
Figure 10 is the B-B cutaway view among Fig. 8.
The specific embodiment
Embodiment describes in further detail the present invention below in conjunction with accompanying drawing.
As shown in the figure, a kind of self-potential roller-type cross wedge rolling mill comprises frame 1, topping roll 3, bottom roll 2 and is used to drive the drive unit that topping roll 3 moves up and down; The two ends of topping roll 3 are provided with top chock 31, and the two ends of bottom roll 2 are provided with step 5, are provided with the first self-alignment adjusting device between the lower end of step 5 and the frame 1; The first self-alignment adjusting device comprises first attachment screw 11 and the last convex globoidal piece 12, concave-concave cambered surface piece 13 and the following convex globoidal piece 14 that superpose and place successively from bottom to up, and the cambered surface of last convex globoidal piece 12 and following convex globoidal piece 14 matches with the cambered surface of concave-concave cambered surface piece 13 respectively, and following convex globoidal piece 14 is supported on the lower surface of step 5; Last convex globoidal piece 12 is placed on the frame 1, and first attachment screw 11 passes down convex globoidal piece 14, concave-concave cambered surface piece 13 and last convex globoidal piece 12 successively with the fit system of matched in clearance, and the axle center of the center of circle of following convex globoidal piece 14 and bottom roll 2 coincides; The upper end of step 5 is fixedly connected with prestressing force bearing 6 through dovetail groove, is bolted with adjusting rod 7 on the prestressing force bearing 6, is provided with the second self-alignment adjusting device between adjusting rod 7 and the top chock 31; The second self-alignment adjusting device comprises the locating piece 18 of the protruding sphere piece of second attachment screw 15, first time 16, the first concave-concave sphere piece 17 and band convex edge, and the upper end of adjusting rod 7 has been wholely set the first epirelief sphere piece, 71, the first concave-concave sphere pieces 17 and has been arranged between the first epirelief sphere piece 71 and the first time protruding sphere piece 16; The sphere of the first epirelief sphere piece 71 and first time protruding sphere piece 16 matches with the sphere of the first concave-concave sphere piece 17 respectively, and the convex edge of locating piece 18 is connected on the axle journal between the first epirelief sphere piece 71 and the adjusting rod 7, and locating piece 18 is fixedly connected through second attachment screw 15 with first time protruding sphere piece 16; Be provided with the gap between the first epirelief sphere piece 71, the first concave-concave sphere piece 17 and the locating piece 18, first time protruding sphere piece 16 is supported on the lower surface of top chock 3, wherein all with between the frame 1 is provided with the identical axial self-alignment adjusting device of structure in the side of the top chock 31 of fore side, the side of step 5; Axially the self-alignment adjusting device comprises the axial self-alignment piece 8 of copper shoe 10,
type and is fixedly installed on the baffle plate 9 on the frame 1, and the both sides of step 5 are wholely set the straight pin 51 concentric with the axle center of bottom roll 2, and axially the plane of structure of self-alignment piece 8 is provided with circular hole 81; Straight pin 51 and circular hole 81 matched in clearance, copper shoe 10 is fixedly connected on the axial self-alignment piece 8 and is arranged between the plane of structure and frame 1 of axial self-alignment piece 8, and axially the vertical face of self-alignment piece 8 is plugged between baffle plate 9 and the frame 1; Drive unit is arranged on the top of top chock 31, and drive unit comprises worm gear 23, worm screw 22, screw mandrel 24 and be fixedly installed on the drive motors 21 on the housiung separator 100 that worm screw 22 is fixedly connected with the output shaft of drive motors 21; Worm gear 23 is meshed with worm screw 22, and screw mandrel 24 and worm gear 23 coaxial fixed connections are set with transmission nut 25 in the frame 1; Screw mandrel 24 is spirally connected with transmission nut 25; Be provided with the 3rd self-alignment adjusting device between the upper surface of top chock 31 and the screw mandrel 24, the 3rd self-alignment adjusting device comprises gland 26, snap ring 27 and is arranged on the second epirelief sphere piece 28, the second concave-concave sphere piece 29 in the gland 26 that gland 26 is fixedly connected on the upper surface of top chock 31 through screw; The second epirelief sphere piece 28 is pressed on the upper surface of top chock 31; The lower end of screw mandrel 24 has been wholely set second time protruding sphere piece 241, the second concave-concave sphere piece 29 and has been arranged between the second epirelief sphere piece 28 and the second time protruding sphere piece 241, and the sphere of the second epirelief sphere piece 28 and second time protruding sphere piece 241 matches with the sphere of the second concave-concave sphere piece 29 respectively; Snap ring 27 is connected on the axle journal between second time protruding sphere piece 241 and the screw mandrel 24; Snap ring 27 is fixedly connected on through screw on the upper surface of gland 26, is provided with the gap between the second epirelief sphere piece 28, the second concave-concave sphere piece 29, second time protruding sphere piece 241 and the gland 26, and the centre of sphere of the second epirelief sphere piece 28 and the axle center of topping roll 3 coincide.
Design considerations of the present invention is: upper and lower roll system of the present invention is reduced to leverage mechanism shown in Figure 1; The leverage mechanism of upper and lower roll system constitutes by last self-alignment rod member I, following self-alignment rod member II and axial restraint self-alignment rod member III three parts; It is six bars, eight hinges, one sliding secondary mechanisms, and under no-load condition, its free degree is: F=3 * 6-2 * 9=0; Therefore, this leverage mechanism is that static determinacy is stable.And under as-rolled condition,, obtain roll system leverage mechanism shown in Figure 2 according to heavy mechanism leverage characteristic and elastic theory; It is seven bars, nine hinges, one sliding secondary mechanisms; Its free degree is: F=3 * 7-2 * 10=1, have one degree of freedom, and can realize from bit motion.
In the foregoing description; The self-alignment rod member II that last convex globoidal piece 12, concave-concave cambered surface piece 13 and following convex globoidal piece 14 constitute in the leverage mechanisms of bottom roll system; Realize from bit function through cambered surface; The self-alignment rod member I that the first epirelief sphere piece 71 on first time protruding sphere piece 16, the first concave-concave sphere piece 17 and the adjusting rod 7 constitutes in the leverage mechanisms of bottom roll system; Realize from bit function through sphere, and the self-alignment rod member III that axial self-alignment piece 8 and step 5 constitute in the leverage mechanisms of bottom roll system, through realizing cooperating of the circular hole 81 in straight pin on the step 5 51 and the axial self-alignment piece 8 axially from bit function; The self-alignment rod member II that the second epirelief sphere piece 28, the second concave-concave sphere piece 29 and second time protruding sphere piece 241 constitute in the leverage mechanisms of topping roll system; Realize from bit function through sphere; The self-alignment rod member I that the first epirelief sphere piece 71 on first time protruding sphere piece 16, the first concave-concave sphere piece 17 and the adjusting rod 7 constitutes in the leverage mechanisms of topping roll system; Realize from bit function through sphere; The structure of self-alignment rod member III in the structure of self-alignment rod member III in the leverage mechanism of topping roll system and the leverage mechanism of bottom roll system is identical, and therefore, milling train of the present invention has the self-alignment regulatory function.
Claims (3)
