The invention relates to rail vehicle bogie parameter detection equipment, in particular to a ferry slide used for rail vehicle bogie parameter detection equipment. , Accurate appearance and other technical problems. The device is mainly composed of a bridge approach groove movable track (2) and a ferry slide carrier (4), and the approach bridge groove movable track (2) is two, which are fixed in parallel on the ferry slide carrier (4) , and the transverse spacing can be adjusted; the two ends of the movable track (2) or the carrier of the ferry slide (4) of the approach bridge are respectively equipped with connecting mechanisms; the carrier of the ferry slide (4) is fixed to the The base (C) is connected with an active fit. Through this device, the bogie of the rail vehicle under test can be smoothly ferried to the test platform, and can be smoothly ferried to the road track after the test is completed, which makes up for the shortage of existing bogie parameter testing equipment in the world.

Description

Ferry slide table for rail vehicle bogie parameter detection equipment

technical field

The invention relates to a parameter detection device for a rail vehicle bogie, in particular to a ferry slide device.

Background technique

At present, some bogie parameter test equipment with different functions have been developed at home and abroad, but almost all test equipment are difficult to guide the bogie to the test equipment smoothly, accurately and quickly when testing the bogie, especially the whole vehicle. This brings limitations to the application of various test equipment, especially the test of slewing stiffness has brought serious limitations, such as the various developed by Windhoff Company of Germany, NENCKI Company of Switzerland and American Standard Vehicle Bogie Company (SCT). Similar problems appear in bogie parameter test benches. Internationally, slide table structures are mostly applied to machine tools or other testing equipment, but there is no record of using the ferry slide table device in bogie parameter testing equipment.

Contents of the invention

The purpose of the present invention is to provide a ferry slide for rail vehicle bogie parameter detection equipment that can guide the bogie and the entire vehicle to the test bench for the shortcomings of the current bogie parameter test bench technology.

The above-mentioned purpose of the present invention can be realized by the following technical solutions, which are described as follows in conjunction with the accompanying drawings:

A ferry slide for rail vehicle bogie parameter detection equipment, mainly composed of a bridge approach groove movable track 2 and a ferry slide carrier 4, the approach bridge groove movable track 2 is two, fixed in parallel on the ferry on the slide platform carrier 4, and the lateral spacing can be adjusted; the two ends of the movable track 2 of the approach bridge groove or the ferry slide platform carrier 4 are respectively equipped with connecting mechanisms; Base C uses active mate connections.

The movable track 2 of the bridge approach groove is fixedly connected to a plurality of threaded holes with different row pitches arranged in parallel on the carrier body 4 of the ferry slide through bolts and hexagon socket head cap screws.

The connecting mechanism adopts a platform-vehicle connection hook 1, and the hook can be fixedly connected with the bogie test bench and the auxiliary connection parts of the test bench foundation.

The carrier body 4 of the ferry slide is slidably connected with the rolling guide rail fixed on the civil foundation C through the rolling slide seat 3 .

The movable track 2 of the bridge approach groove is equipped with a track wheel chock assembly D, and the track wheel chock assembly D is composed of a track wheel chock 5 and a wheel chock shaft pin 6, and the track wheel chock 5 is placed on the approach bridge groove movable track 2 In the groove, wheel chock shaft pin 6 is coaxially fitted with the shaft hole of track wheel chock 5 and the shaft hole of bridge approach groove movable track 2.

There are a plurality of axial holes of the movable groove track 2 , which are arranged symmetrically along the axis of the movable groove track 2 .

Technical effects of the present invention: The School of Transportation of Jilin University has developed a dynamic detection system for the stiffness parameters of the closed-loop diagonally braced rail vehicle bogie, and has applied for a patent for invention, application number: 200910067024.8. However, the technical problem of the bogie and the whole vehicle on the platform has not been well resolved. A ferry slide table used for the detection equipment of the rail vehicle bogie parameters proposed by the present invention is designed to cooperate with the test system. , by making small adjustments to the test bench in the original system, the smooth connection between the ferry slide device and the test bench can be realized, so as to ensure that the bogie is guided to the test bench of the detection system smoothly, accurately and quickly. Through the sliding ferry of the ferry slide device between the bogie parameter test platform and the road track, the rail vehicle bogie under test can be smoothly ferried to the test platform, and the rail vehicle bogie can be smoothly ferried to the road after the test is completed The track, that is, the ferry slide, sends the tested bogie out of the test stand. The ferry slide will make up for the shortage of existing bogie parameter testing equipment in the world, and has important practical significance and broad application space for upgrading bogie products.

Description of drawings

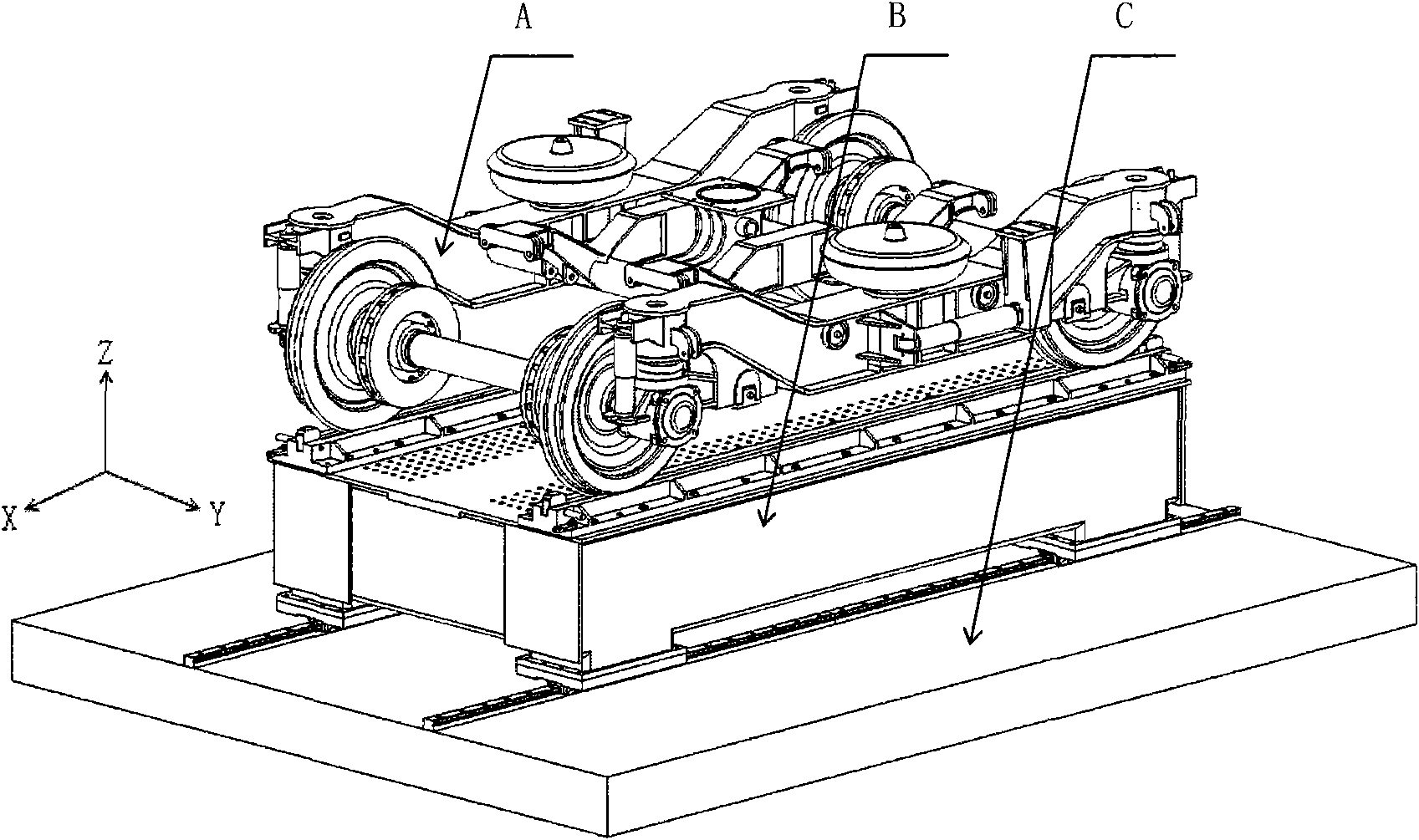

Figure 1 Schematic diagram of a ferry slide with a bogie;

Figure 2 left view of the ferry slide with bogies;

Figure 3 Schematic diagram of the ferry slide;

Figure 4 is a partial enlarged schematic diagram of the ferry slide;

Fig. 5 schematic diagram of track wheel chock assembly;

Figure 6 is a schematic diagram of the carrier of the ferry slide;

Figure 7 is a schematic diagram of the internal structure of the carrier of the ferry slide;

Figure 8 The first working process of the ferry slide, that is, the bogie drives onto the ferry slide;

Figure 9 The second working process of the ferry slide, that is, the ferry slide sends the bogie to the test bench for testing;

Figure 10 The third working process of the ferry slide, that is, the ferry slide sends the tested bogie out of the test stand.

In the figure: A- bogie under test; B- ferry slide; C- civil foundation; D- track wheel chock assembly; E- rail vehicle; F- ferry slide; G- bogie parameter test bench; 1- Platform and car connecting hook; 2- movable track of bridge approach groove; 3- rolling slide seat; 4- carrier of ferry slide platform; 5- track wheel chock;

Detailed ways

The specific content of the present invention and its implementation will be further described below in conjunction with the illustrations shown in the accompanying drawings. The embodiment listed here is only one kind of implementation of the technical solution of the present invention, but not the only one.

A ferry slide device for rail vehicle bogie parameter detection equipment, mainly composed of a bridge approach groove movable track 2 and a ferry slide carrier 4, said approach bridge groove movable track 2 is two, fixed in parallel On the carrier 4 of the ferry slide, and the lateral spacing can be adjusted; the movable track 2 of the approach bridge groove or the two ends of the carrier 4 of the ferry slide are respectively equipped with connecting mechanisms; the carrier 4 of the ferry slide is fixed on the The civil foundation C adopts movable fit connection.

The movable track 2 of the bridge approach groove is fixedly connected to a plurality of threaded holes with different row pitches arranged in parallel on the carrier body 4 of the ferry slide through bolts and hexagon socket head cap screws.

The connecting mechanism adopts a platform-vehicle connection hook 1, and the hook can be fixedly connected with the bogie test bench and the auxiliary connection parts of the test bench foundation.

The carrier body 4 of the ferry slide is slidably connected with the rolling guide rail fixed on the civil foundation C through the rolling slide seat 3 .

The movable track 2 of the bridge approach groove is equipped with a track wheel chock assembly D, and the track wheel chock assembly D is composed of a track wheel chock 5 and a wheel chock shaft pin 6, and the track wheel chock 5 is placed on the approach bridge groove movable track 2 In the groove, wheel chock shaft pin 6 is coaxially fitted with the shaft hole of track wheel chock 5 and the shaft hole of bridge approach groove movable track 2.

There are a plurality of shaft holes of the groove movable track 2 , which are arranged correspondingly along the axial direction of the groove movable track 2 .

Referring to Figures 1 and 2, the present invention is mainly composed of platform, car connecting hook 1, approach bridge groove movable track 2, rolling slide seat 3, ferry slide carrier 4 and track wheel chock assembly D, wherein the track wheel chock assembly Cheng D is made up of track wheel chock 5 and wheel chock shaft pin 6, wherein the movement of the ferry slide is realized by the sliding fit connection between the rolling slide seat 3 and the guide rail fixed on the civil foundation C.

Referring to Figures 3, 4, 6, and 7, the tail end of the connecting hook 1 of the platform and the vehicle is fixedly connected with the carrier body 4 of the ferry slide, and the connecting hook at the front end is respectively fixedly connected with the auxiliary connecting parts of the bogie test bench and the test bench foundation , such an arrangement can ensure that the ferry slide is limited in front of the guide bogie upper slide and the test bench. The groove movable track 2 of the approach bridge is fixedly connected with the carrier body 4 of the ferry slide platform through bolts and hexagon socket head screws, wherein a large number of threaded holes with different row spacings are arranged in parallel on the carrier body 4 of the ferry slide platform. The fixed connection of threaded holes with different row spacings can realize the adjustment of the lateral spacing of the movable rails 2 of the two approach grooves, so as to meet the needs of bogie tests with different wheelbases. The bottom surface of the carrier body 4 of the ferry slide is equipped with a plurality of rolling slides 3, eight in the present embodiment, and the rolling slides 3 are connected with the rolling guide rails fixed on the civil foundation C by sliding fit.

Referring to Fig. 5, two track wheel chock assemblies D are respectively arranged on each approach groove movable track 2 on the ferry slide, and the track wheel chock assembly D is composed of a track wheel chock 5 and a wheel chock shaft pin 6, and the wheel chock The shaft pin 6 is coaxially connected with the shaft hole of the track wheel block 5, and the track wheel block 5 is placed in the groove of the movable track 2 of the groove of the approach bridge, and the wheel block shaft pin 6 is connected with numerous shaft holes on the movable track 2 of the groove of the approach bridge Coaxial fit connection, wherein the shaft pin holes arranged in different positions of the movable track 2 of the approach bridge groove can meet the adjustment of the D position of the track wheel chock assembly, so as to realize the limit of bogie wheel sets with different wheelbases behind the upper ferry slide The needs of the track wheel chock 5 and the tread of the wheel are close together when the wheels are spaced.

Referring to Figures 8, 9, and 10, for the bogie parameter test bench, two ferry slide devices should be arranged at the front and rear ends of the test bench, so as to realize the process of getting on and off the bogie and the whole vehicle smoothly. Before the bogie or the whole vehicle is on the sliding platform, the two platform and vehicle connection hooks 1 at one end (tail end) of the ferry sliding platform are fixedly connected with the auxiliary connection parts of the test bench foundation, and the connection is released after the bogie or the whole vehicle is on the sliding platform And slide to the test platform, through the two platforms at the other end (front end) of the slide platform, the vehicle connection hook 1 is fixedly connected with the auxiliary connection parts of the test platform, the bogie or the whole vehicle is driven into the test platform for testing, after the test is completed, another The platform ferry sliding platform device completes the process of evacuating the bogie or the whole vehicle from the test platform. The process of evacuating the test platform is opposite to that of connecting the hook 1 between the platform and the car in the process of getting on the test platform, but the principle is the same.

Claims (6)

1. A ferry slide for rail vehicle bogie parameter detection equipment, mainly composed of a bridge approach groove movable track (2) and a ferry slide carrier (4), it is characterized in that the described approach bridge groove is movable There are two tracks (2), which are fixed in parallel on the carrier (4) of the ferry slide, and the transverse spacing can be adjusted; A connection mechanism is installed; the carrier body (4) of the ferry slide is connected with the civil foundation (C) by means of movable cooperation. 2. The ferry slide for rail vehicle bogie parameter detection equipment according to claim 1, characterized in that, the movable track (2) of the approach bridge groove is connected to the carrier of the ferry slide by bolts and hexagon socket head cap screws (4) A plurality of threaded holes with different row pitches arranged in parallel on the top are fixedly connected. 3. the ferry slide for rail vehicle bogie parameter detection equipment according to claim 1, is characterized in that, described connecting mechanism adopts platform, car to connect hook (1), and its hook can be connected with bogie test bench and the auxiliary connection parts of the test bench foundation for fixed connection. 4. The ferry slide for rail vehicle bogie parameter detection equipment according to claim 1, characterized in that, the ferry slide carrier (4) is fixed on the civil foundation through the rolling slide (3) Rolling rails on (C) make a slip-fit connection. 5. The ferry slide for rail vehicle bogie parameter detection equipment according to claim 1, characterized in that, the track wheel chock assembly (D) is installed on the movable track (2) of the groove of the approach bridge, the The track wheel chock assembly (D) is composed of the track wheel chock (5) and the wheel chock shaft pin (6). (6) coaxially fit and connect with the shaft hole of the track wheel block (5) and the shaft hole of the bridge approach groove movable track (2). 6. The ferry slide for rail vehicle bogie parameter detection equipment according to claim 5, characterized in that, the groove movable track (2) has a plurality of shaft holes, and the movable track along the groove (2) Axial corresponding arrangement.
