Abstract
The invention relates to a garlic sprout harvester and belongs to the field of agricultural machinery. The garlic sprout harvester can erect a single row of garlic sprout stems and gather the garlic sprout stems into a bundle, vertically gash the epidermis of each garlic sprout stem at certain height, transversely make a cut with certain depth in the gashed epidermis and draw the garlic sprouts by using a drawing device. The invention solves the problem of mechanized harvesting of garlic sprouts. The technical proposal of the invention can increase the production rate for harvesting garlic sprouts, reduce the labor intensity for harvesting garlic sprouts and enhance the mechanization level of garlic planting.
Description
Technical field
The present invention relates to a kind of garlic shoot reaping machine, can extract the garlic bolt of garlic shoot under erectility with the maturing stage, realize the garlic shoot mechanized, belong to agricultural mechanical field.
Background technology
The garlic shoot results are the important operations in the garlic cultivation, and its operation is seasonal strong.Traditional harvesting method mainly is to rely on the artificial garlic shoot that extracts, and this harvesting method production efficiency is low, garlic shoot production cost height, and have a strong impact on the output and the quality of garlic shoot.Up to the present, the correlation technique that does not also have the garlic shoot reaping machine.
Present situation at garlic shoot results technology, the present invention discloses a kind of garlic shoot reaping machine, after adopting garlic bolt to hold up straight gathering bunchy, certain altitude at garlic bolt is vertically scratched its epidermis, at the otch of the epidermis place transverse cuts certain depth of scratching, extract a kind of mechanized harvest method of garlic shoot by draw-out device.
At the defective of manual results garlic shoot, a kind of garlic shoot reaping machine disclosed by the invention to improving the productivity ratio of gathering in the crops garlic shoot, reduces labour intensity, and the garlic shoot results improve quality and output that garlic shoot is gathered in the crops in good time, to improve garlic shoot harvesting mechanization degree.
Summary of the invention
At the garlic shoot results state of the art, the objective of the invention is to disclose a kind of garlic shoot reaping machine, it is characterized in that constituting by garlic shoot feeding unit [101], longitudinal cut device [102], cross sections device [103], draw-out device [104], collecting box 2 and actuating unit.Described garlic shoot feeding unit [101] feeds roller 8 by an a pair of left-handed left side to helicon and dextrorotation constitutes to the right side of helicon feeding roller 7; Described cross sections device [102] is made of helical tooth blade 13 and spiral knife rest 6; Described cross sections device [103] is by runner pawl 4, baffle plate frame 14, double rocking lever 15, spacing shelves nail 16, back-moving spring 19, and blade 17, knife rest 18 and bearing pin 20 are formed; Described draw-out device [104] extracts roller 12 by an a pair of left-handed left side to cone-type spiral and dextrorotation constitutes to the right side of cone-type spiral extraction roller 3.
Described garlic shoot reaping machine is characterized in that garlic shoot feeding unit [101] left side feeding roller 8 and right feeding roller 7 have semicircle spiral bulge-structure.
Described garlic shoot reaping machine is characterized in that being inlaid with in the circular arc spiral knife rest 6 of longitudinal cut device [102] helical groove structure of helical tooth blade 13.
Described garlic shoot reaping machine it is characterized in that 3～6 pawls that the runner pawl 4 of the pushing garlic bolt stem stalk of cross sections device [103] extends radially, and front end has convex structure.
Described garlic shoot reaping machine is characterized in that the cone-type spiral shape left side extraction roller 12 of draw-out device [104] and the right roller 3 that extracts have the rectangular coil structure.
Compared with prior art, the present invention has realized the garlic shoot mechanized harvest.
A kind of garlic shoot reaping machine of the present invention can overcome the work of manual results garlic shoot slight big, results efficient is low, the loss of garlic shoot is big and can not be according to the shortcoming of results in good time in farming season.Adopt technical scheme of the present invention can reduce labour intensity, improve the utilization percent of garlic shoot, reduce the yield loss of garlic shoot, realize in good time mechanized harvest.
Description of drawings

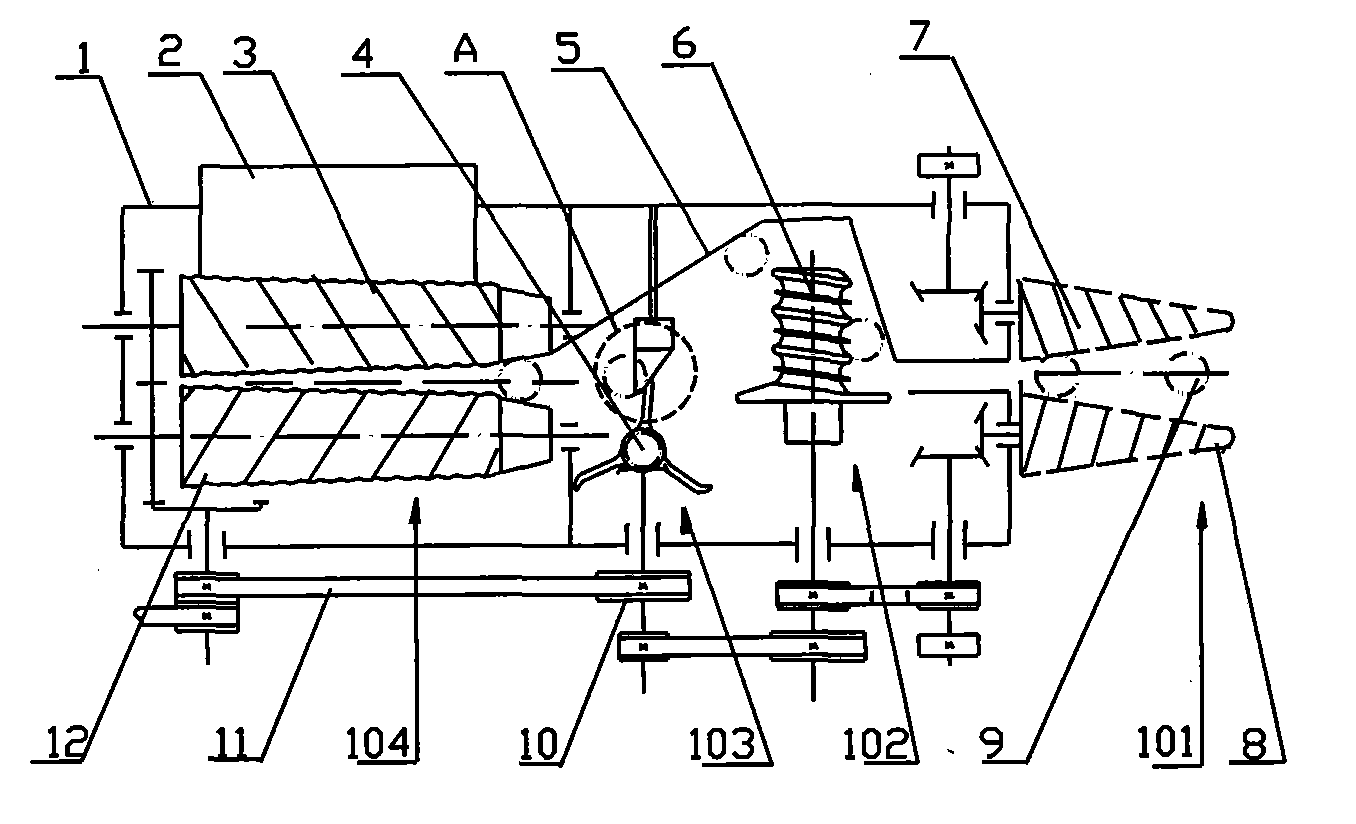

Fig. 1 is each mechanism's plan structure schematic diagram of garlic shoot reaping machine
Fig. 2 is the feeding unit structural representation
Fig. 3 is a longitudinal cut apparatus structure schematic diagram
Fig. 4 is a cross sections apparatus structure schematic diagram
Fig. 5 is the draw-out device structural representation
The meaning that each legend mark is represented respectively in the accompanying drawing is as follows:
The 1-frame, 2-collecting box, right roller, the 4-runner pawl of extracting of 3-, the 5-deflector, 6-spiral knife rest, the right feeding of 7-roller, 8-left side feeding roller, 9-garlic bolt stem stalk, 10-belt wheel, 11-V band, 12-extracts roller, 13-cutter, 14-baffle plate frame in a left side, the 15-double rocking lever, 16-limiting block nail, 17-blade, the 18-knife rest, 10-back-moving spring, 20-bearing pin
The 101-feeding unit, 102-longitudinal cut device, 103-cross sections device, 104-draw-out device
Embodiment
Provide specific embodiment below in conjunction with accompanying drawing
As Fig. 1, Fig. 2, Fig. 3, Fig. 4 and shown in Figure 5.When the garlic shoot reaping machine advances, garlic shoot stem stalk 9 is fed by feeding unit [101], and through a pair of feeding roller 7 and 8 support gathering bunchys, and through deflector 5 importing longitudinal cut devices [102], garlic shoot stem stalk is pushed to a side by the spiral in the spiral knife rest 6, with the cutter 13 in the middle of the time slot garlic shoot stem stalk 9 is longitudinally scratched its external skins, import cross sections device [103], garlic bolt stem stalk 9 is pressed into 14 on baffle plate frame by runner pawl 4, runner pawl 4 rotates and drives double rocking lever simultaneously, double rocking lever drives knife rest 18 and rotates, the blade 17 that is installed in knife rest 18 ends is laterally cut certain depth with the garlic shoot root, runner pawl 4 continues to promote 9 bendings of garlic shoot stem stalk fractures garlic shoot, when no garlic shoot stem stalk 9 enters baffle plate frame 14, knife rest 18 is returned to initial position under back-moving spring 19 effects, garlic shoot stem stalk 9 is being imported into garlic shoot draw-out device [104], arrive right the extraction between roller 3 and the left side extraction roller 12, under the effect of frictional force, garlic shoot is drawn out of, because two rotating speed differences that extract roller, then the garlic shoot of Chou Chuing is thrown in the collecting box 2 of a side.The walking required drive of power that above-mentioned Working mechanism is required and machine is obtained by the power take-off or the engine of actuating unit from tractor.
Technical scheme of the present invention can be according to the power size of supporting tractor, design feeding unit [101], longitudinal cut device [102], cross sections device [103] and the draw-out device [104] of different work fabric widths such as single file, multirow, these constitute other embodiment of the present invention.
Claims (10)
1. a garlic shoot reaping machine is characterized in that being made of garlic shoot feeding unit [101], longitudinal cut device [102], cross sections device [103], draw-out device [104], collecting box 2 and actuating unit; Described garlic shoot feeding unit [101] feeds roller 8 by an a pair of left-handed left side to helicon and dextrorotation constitutes to the right side of helicon feeding roller 7; Described cross sections device [102] is made of helical tooth blade 13 and spiral knife rest 6; Described cross sections device [103] is by runner pawl 4, baffle plate frame 14, double rocking lever 15, spacing shelves nail 16, back-moving spring 19, and blade 17, knife rest 18 and bearing pin 20 are formed; Described draw-out device [104] extracts roller 12 by an a pair of left-handed left side to cone-type spiral and dextrorotation constitutes to the right side of cone-type spiral extraction roller 3.
2. as claim 1 described garlic shoot reaping machine, it is characterized in that left side feeding roller 8 and right feeding roller 7 have semicircle spiral bulge-structure.
3. as claim 1 or 2 described garlic shoot reaping machines, the lead angle that it is characterized in that left side feeding roller 8 and right feeding roller 7 is between 30 °～50 °.
4. as claim 1 described garlic shoot reaping machine, it is characterized in that being inlaid with spirality cutter 13 in the circular arc helicla flute of spiral knife rest 6.
5. as claim 1 described garlic shoot reaping machine, it is characterized in that pushing 3～6 pawls that the runner pawl 4 of garlic bolt stem stalk extends radially, and front end has convex structure.
6. as claim 1 described garlic shoot reaping machine, it is characterized in that double rocking lever 15 and baffle plate frame 14 and knife rest 18 are hinge access node structure.
7. as claim 1 described garlic shoot reaping machine, it is characterized in that back-moving spring 19 is housed on the bearing pin 20, and the one end is stuck on the knife rest 18.
8. as claim 1 described garlic shoot reaping machine, it is characterized in that roller 12 is extracted on a left side and the right roller 3 that extracts is the rectangular coil structure.
9. as claim 1 or 8 described garlic shoot reaping machines, it is characterized in that roller 12 is extracted on a left side and the right roller 3 that extracts is rubber rollers.
10. as claim 1 or 8 described garlic shoot reaping machines, it is characterized in that roller 12 is extracted on a left side and the lead angle of roller 3 is extracted between 15 °～30 ° in the right side.
