CN101581462B - Ecological bath system - Google Patents

Abstract

The invention discloses an ecological bathing system, which comprises: a heating device communicated with a hot water tank through pipelines to form a heating system; The water pipe is connected to the tap water supply pipe, and the hot water supply port on the hot water tank and the warm water supply port on the warm water tank are respectively connected with the pipeline, water saver, control valve and water mixer to form a bathing water supply subsystem; pedal type heat recovery device The recovery cavity is connected with the liquid storage tank, the compressor, the first immersion condensing coil arranged in the hot water tank, the second immersion condensing coil arranged in the warm water tank, and the set The third immersion condensing coil, dry filter and electronic expansion valve in the preheating tank are connected with the recovery cavity of the pedal heat recovery to form a waste heat recovery subsystem; the recovery cavity of the pedal heat recovery The outlet of the body is connected with the reclaimed water treatment subsystem through pipelines.

Description

An ecological bathing system

technical field

The invention relates to a bathing equipment system adopting resource recycling technology, in particular to an ecological bathing system applicable to various bathing places, saving bathing resources and convenient for regulation. the

Background technique

The current way of bathing that people use in their daily lives is an extensive use of resources. As shown in Figure 1, people’s bathing process is as follows: hot water is obtained after heating, and people do not control hot water during the bathing process. The use of hot water, and the hot water flows away from the drain as sewage. In this bathing method, when the water temperature drops during the bathing process, it is often necessary to heat the bathing water with a large temperature difference of about 20-45°C. In terms of energy, heating each ton of bathing water needs to consume about 28-55kwh of heat energy. In the process of showering, about 30% of the invalid water discharge occurs when the "mixed water" washes hair, soaps, and body washes. At this time, the pollution level of the ground water after bathing is relatively low, and it is easier to treat and reuse, but it is directly drained. The sewage discharged from the road and the toilet is mixed and then discharged. This existing bathing method not only leads to a large waste of water and heat energy resources, but also causes certain pollution to the environment due to the discharged sewage. the

At present, in the existing bathing system, a kind of bathing heating equipment using solar energy is often used. This heating equipment can make good use of the natural energy of solar energy, which greatly reduces the waste of existing energy. Since this kind of solar energy depends on the irradiation of solar energy to heat the water in it, according to the current energy demand for bathing, the heat available from 10 square meters of solar energy is 24kwh, which can heat 0.58 tons of water, and a water tank with 0.58 tons of water can be placed The volume is large, and it takes up a lot of space. Due to the limited space resources in the city, it is still difficult to apply this large-scale solar heating equipment in a large area in the city, and the process of manufacturing solar heating equipment also consumes a lot of energy. .

Contents of the invention

The embodiment of the present invention provides an ecological bathing system and solar heating equipment. Through the cooperation of various subsystems, the system recycles the waste heat of bathing water, uses water and heat resources in a refined manner, and solves the waste of energy in the existing bathing system. , The problem of polluting the environment. the

The purpose of the present invention is achieved by the following technical solutions:

An embodiment of the present invention is an ecological bathing system, which includes:

Heating equipment, hot water tank, warm water tank, preheating water tank, water pump, water mixer, pedal heat recovery, compressor, liquid storage tank, first immersion condensing coil, second immersion condensing coil, second Triple soaker condensing coil, filter drier and electronic expansion valve;

Wherein, the heating equipment is connected with the hot water tank through pipelines to form a heating system;

The warm water tanks are respectively communicated with the hot water tank and the preheating water tank through pipelines, the preheating water tank is provided with a cold water inlet pipe connected to the tap water supply pipe, the hot water tank is provided with a hot water supply port, and the warm water tank is provided with warm water The water supply port, the hot water supply port and the warm water supply port are respectively connected through the hot water supply pipeline, the warm water supply pipeline, the water saver, the control valve and the water mixer to form a water saving water supply system;

The pedal heat recovery device is arranged correspondingly to the water mixer, and the recovery cavity of the pedal heat recovery device is sequentially connected with the liquid storage tank, the compressor, and the first immersion condenser provided in the hot water tank through pipelines. Coil, the second immersion condensing coil set in the warm water tank, the third immersion condensing coil set in the preheating water tank, dry filter and electronic expansion valve, and the evaporator of the pedal heat recovery The pipes are connected into a waste heat recovery system;

The reclaimed water outlet of the recovery chamber of the pedal heat recovery device is connected with the reclaimed water treatment system through a pipeline. the

The heating equipment includes: any one of solar heat pump heaters, solar heat collectors, electric heaters or boiler heaters. the

When the heating equipment adopts any one of solar collectors, electric heaters or boiler heaters, the hot water outlet of the electric heater or boiler heater communicates with the water inlet of the hot water tank through pipelines and water pumps, The drain of the hot water tank communicates with the water return port of the electric heater or the boiler heater through a pipeline through a water pump. the

When the heating equipment adopts a solar heat pump heater, the outlet of the evaporating coil of the evaporative solar heat collector of the solar heat pump heater is connected with the three-way valve, the liquid storage tank, the compressor, and the first immersion condensing coil successively through the pipeline. , second immersion condensing coil, third immersion condensing coil, filter drier, electronic expansion valve, and evaporative coil inlet connections for evaporative solar collectors. the

The solar heat pump heater also includes: a temperature sensor is arranged in the evaporative solar collector, and the temperature sensor is connected with an intelligent controller, and the temperature sensor, the intelligent controller and a three-way valve connected with the intelligent controller It constitutes the working state start control circuit of the evaporative solar heat collector. the

The evaporative solar heat collector is a flat plate solar heat collector, the plate is provided with ventilation holes, the front of the plate is provided with fins, and the back of the plate is provided with a cavity, the cavity is provided with an evaporation coil, and one end of the evaporation coil is As the outlet of the evaporating coil of the solar collector, the other end of the evaporating coil is used as the inlet of the heat pipe of the solar collector, and one end of the cavity where the evaporating coil is located is provided with an exhaust fan. the

The reclaimed water treatment system includes: a cut-off valve, a hair filter, an air flotation aerator, a multimedia filter, a backwash valve, a sterilizer, and a reclaimed water storage tank are sequentially connected through pipelines; wherein, the The reclaimed water storage tank is provided with a plurality of water level electrodes for measuring the water level, and the reclaimed water storage tank is connected with an overflow pipe. the

The pedal type heat recovery device specifically includes: a coarse filter layer, a recovery cavity, an evaporation coil and a water leakage base; the coarse filter layer is arranged on the recovery cavity, the evaporation coil is arranged in the recovery cavity, and the bottom of the recovery cavity is a water leakage base. the

The pedal-type heat recovery device also includes: a bath water temperature sensor arranged in the pedal-type heat recovery device, which is connected to an intelligent controller, and the intelligent controller is connected to the access control circuit of the three-way valve, and the temperature sensor, the intelligent controller And the three-way valve constitutes the working state start control circuit of the waste heat recovery system. the

The pipeline between the pedal type heat recovery device and the liquid storage tank is provided with a temperature sensor for detecting and recovering the temperature of the bath water, the temperature sensor is connected with the intelligent controller, and the intelligent controller is connected with the electronic expansion valve to jointly form a The control circuit for adjusting the opening degree of the electronic expansion valve. the

It can be seen from the technical solutions provided by the above-mentioned embodiments of the present invention that the embodiments of the present invention form an ecological cycle bathing system by organically connecting the heating system with the water-saving water supply system, waste heat recovery system, and reclaimed water treatment system, wherein the waste heat recovery system Cooperating with the reclaimed water treatment system, it adopts the heat exchange and heat pump heat recovery method of total heat recovery, and completes the complete waste heat recovery of the high-temperature ground water in the bath, which can achieve energy saving very well, and because the subsystems are organically connected Can effectively save space. And when the bathing system of the present invention uses solar energy as a heat source, it can make full use of solar energy. When a solar heat collector is used, the temperature of the hot water is greater than the ambient temperature and reaches the maximum value every day. At this time, solar energy cannot be used. And the present invention adopts the solar heat collector of the principle of evaporative heat absorption, so that the temperature of the heat collecting plate is always lower than the solar radiation temperature, even lower than the ambient temperature, so that the utilization of solar heat includes not only direct solar radiant heat, but also solar radiant heat. The ambient air is hot. Solar collectors are no longer only available in the sun, and the utilization rate is more than twice that of existing solar collectors, creating conditions for solar collectors to slim down; the bathing system greatly reduces bathing energy consumption, because both Both solar energy collection and bathing energy recovery heating use the combination of heat pump technology and computer control technology, so the COP value of the system heating can be guaranteed to be above 4, which means that the energy consumption of the system is 1/4 of that of electric water heaters, and that of gas heating. 1/5 of the water, 1/2 of the solar water heater; this system has formed an efficient, harmonious and conveniently regulated ecological cycle chain of water, energy, space, and natural resources in the bathing process. the

Description of drawings

Fig. 1 is the bath process flow diagram that prior art provides;

Fig. 2 is the structural representation of the bathing system of the embodiment of the present invention;

Fig. 3 is the schematic flow chart of the bathing process of the bathing system of the embodiment of the present invention;

Fig. 4 is the structural representation of the connection of each part of the shower system of embodiment one of the present invention;

Fig. 5 is the front structural representation of the evaporative solar heat collector of embodiment one of the present invention;

Fig. 6 is the side structure schematic diagram of the evaporative solar heat collector of embodiment one of the present invention;

Figure 7 is a schematic structural view of a pedal heat recovery device according to Embodiment 1 of the present invention;

Fig. 8 is the structural representation of the bathing system of embodiment two of the present invention;

Fig. 9 is the schematic diagram of the mixed water treatment that prior art provides;

Fig. 10 is the schematic diagram of the mixed water treatment that the embodiment of the present invention provides;

The labels in the figure are: 1-evaporative solar collector, 1-1-fin, 1-2-air vent, 1-3-evaporation coil, 1-4-cavity, 1-5-plate, 2-fan, 3-pedal heat recovery device, 3-1-coarse filter layer, 3-2-evaporation coil, 3-3-leakage base, 3-4-recovery cavity, 4-water pump, 41-middle Water pump, 6-backwash valve, 7-sterilizer, 8-reclaimed water storage tank, 81-stop valve, 82-hair filter, 83-air flotation aerator, 84-multimedia filter, 9-three Through valve, 10-liquid storage tank, 11-electronic expansion valve, 12-compressor, 13-dry filter, 14-temperature sensor, 141-temperature sensor, 142-temperature sensor, 143-temperature sensor, 144-water temperature detection Temperature sensor, 15-preheating water tank, 151-third immersion condensing coil, 18-water mixer, 19-hot water tank, 191-first immersion condensing coil, 20-warm water tank, 201-second Immersion condensing coil, 21a, 21b-control valve, 211-hot water supply pipeline, 212-warm water supply pipeline, 213-water saver, 22-intelligent controller, 23-water level electrode, 24-water level electrode, 25-water level electrode, 26-overflow pipe. the

Detailed ways

The embodiment of the present invention provides an ecological bathing system, which is a heating system composed of heating equipment and a hot water tank, a pedal type heat recovery device, a first immersion type condensing coil, a second immersion type condensing coil, a third immersion type The waste heat recovery subsystem composed of condensing coil, dry filter and electronic expansion valve, and the economizer composed of hot water tank, warm water tank, warm water supply pipeline, hot water supply pipeline, water saver, control valve and water mixer The water supply system is organically connected with the reclaimed water treatment system composed of hair filter, air flotation aerator, multi-media filter, backwash valve, sterilizer and reclaimed water storage tank. Water, heat energy, and bathing water are rationally used to achieve the purpose of efficient and energy-saving utilization of resources. the

For ease of understanding, further description will be given below in conjunction with the accompanying drawings and specific embodiments. the

Embodiment one

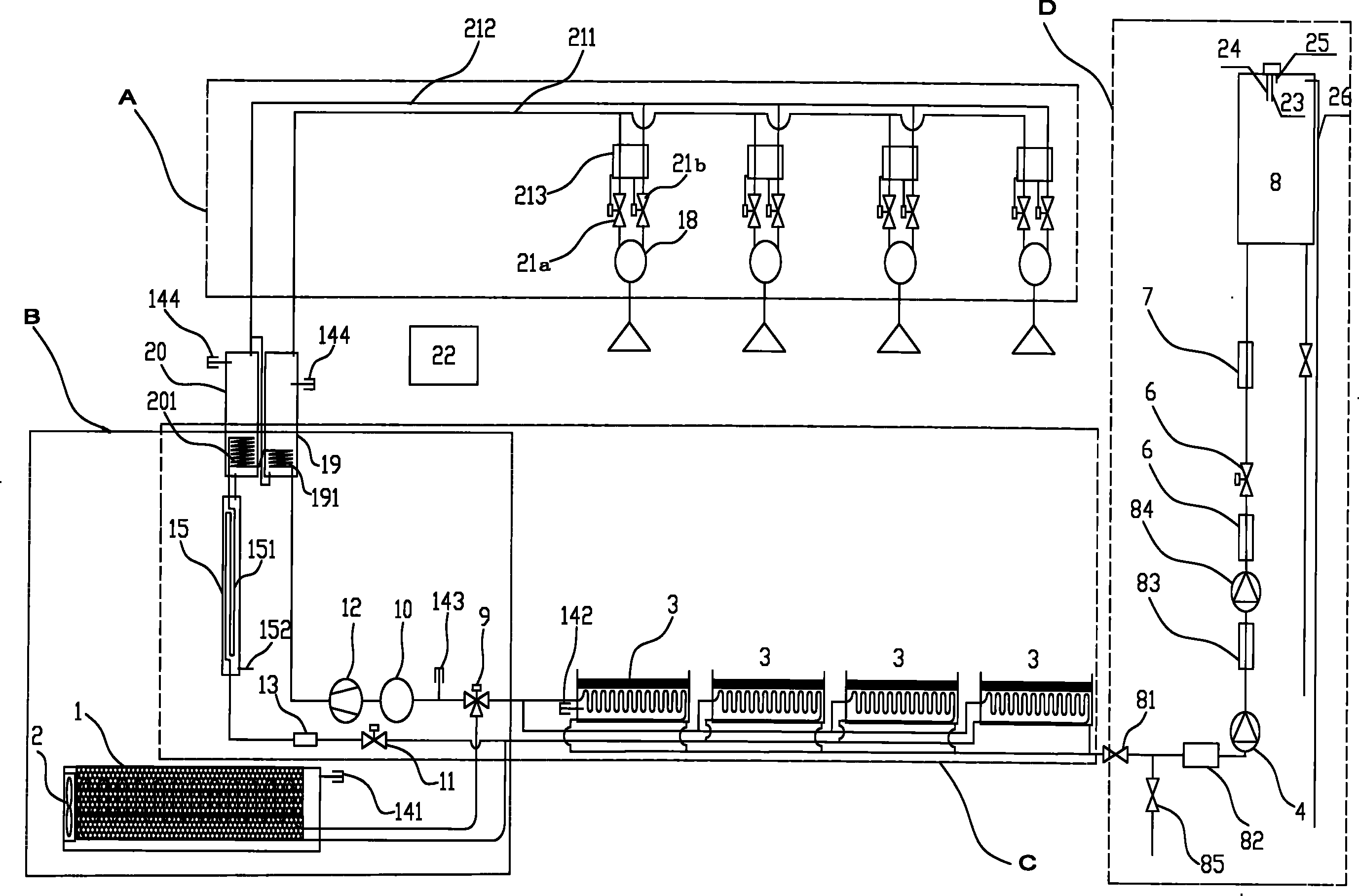

As shown in Figure 2, an embodiment of the present invention provides an ecological bathing system, which includes four parts: a heating system, a water-saving water supply system, a waste heat recovery system and a reclaimed water treatment system, wherein the waste heat recovery system is connected with the heating system, The water-saving water supply system is connected with the reclaimed water treatment system to form a bathing system. Through this system, more refined utilization of water from heating to waste heat recovery of bathing water can be realized. The specific application process is shown in Figure 3.

In the above-mentioned ecological bathing system, the heating equipment as a heat source in the heating system can use any one of solar heaters, solar collectors, heat pump heaters, electric heaters or boiler heaters, when the heating equipment adopts When the solar heat pump heater is used, the connection relationship of the various components of the ecological bathing system is shown in Figure 4, which specifically includes: the outlet of the evaporation coil of the evaporative solar heat collector 1 of the solar heat pump heater is connected with the three-way valve 9 in turn through the pipeline. , liquid storage tank 10, compressor 12, first immersion condensing coil 19, second immersion condensing coil 19, third immersion condensing coil 19, dry filter 13, electronic expansion valve 11 and evaporative solar energy The inlet of the evaporating coil of collector 1 is connected. Wherein, the heater communicates with the hot water tank 20 through pipelines to form a heating system B;

The warm water tank 20 communicates with the hot water tank 19 and the preheated water tank 15 through pipelines respectively, the preheated water tank 15 is provided with a cold water inlet pipe 151 connected to a tap water supply pipe, and the hot water tank 19 is provided with a hot water supply port, The warm water tank 20 is provided with a warm water supply port, and the hot water supply port and the warm water supply port pass through the hot water supply pipeline 211, the warm water supply pipeline 212, the water saver 213, the control valves 21a, 21b and the water mixer 18 respectively. Connect to form a water-saving water supply system A; among them, the water mixer and its supporting water-saving devices and control valves can be installed in multiples as required, and connected in parallel to the hot water supply pipeline 211 and the warm water supply pipeline 212;

The pedal heat recovery device 3 is arranged correspondingly to the water mixer 18, and the recovery cavity of the pedal heat recovery device 3 is arranged in sequence with the liquid storage tank 10, the compressor 12, and the hot water tank 19 through pipelines. The first immersion condensing coil 191, the second immersing condensing coil 201 set in the warm water tank 20, the third immersing condensing coil 151 set in the preheating water tank 15, the drying filter 13 and The electronic expansion valve 11 and the evaporating coil of the pedal heat recovery device 3 are connected to form a waste heat recovery system C;

The reclaimed water outlet of the recovery cavity of the pedal type heat recovery device 3 is connected with a shut-off valve 81, a hair filter 82, an air flotation aerator 83, a multimedia filter 84, a backwash valve 6, The sterilizer 7 and the reclaimed water storage tank 8 are connected through a reclaimed water treatment system D formed by sequentially connecting pipelines. the

Wherein, the specific structure of evaporative solar heat collector 1 is referring to Fig. 5, 6, and this evaporative solar heat collector 1 is flat-plate solar heat collector, has ventilation hole 1-2 on the plate 1-5, and plate 1- 5 Fins 1-1 are arranged on the front, and a cavity 1-4 is arranged on the back of the plate 1-5. The cavity 1-4 is provided with an evaporation coil 1-3, and one end of the evaporation coil 1-3 is used as a solar heat collector The heat pipe outlet of the device, the other end of the evaporation coil 1-3 is used as the heat pipe inlet of the solar collector, and the exhaust fan 2 is provided at one end of the cavity 1-4 where the evaporation coil 1-3 is located. The temperature of the evaporative solar collector 1 increases rapidly when there is sunshine, and the temperature sensor 141 installed in the evaporative solar collector 1 detects the change, and transmits it to the intelligent controller 22, and the intelligent controller 22 performs calculation processing according to other signals , to determine whether the system enters the working mode of solar heat collection. In the working mode of solar heat collection, the three-way valve 9 closes the waste heat recovery circuit, connects the evaporative solar collector 1, and the compressor 12 presses the high-temperature and high-pressure gas into the first immersion condensing coil 191, the second immersion condensing coil The coil 201, the third immersion condensing coil 151, the water temperature in the hot water tank 19, the high-temperature and high-pressure gas is cooled by water, passes through the dry filter 13, and is adjusted by the electronic expansion valve 11 to become a low-temperature and low-pressure liquid. Evaporative solar collectors 1. Since the evaporation temperature of the working medium liquid is very low, it can absorb all the solar energy, send it to the liquid storage tank 10 through the low-temperature and low-pressure saturated steam, and then return to the compressor 12 . The temperature sensor 143 is arranged on the pipeline between the pedal heat recovery device 3 and the liquid storage tank 10, and is used for saturated steam detection. The intelligent controller 22 is connected with the temperature sensor 143, and the electronic expansion is adjusted by the signal of the temperature sensor 143. The opening of the valve 11 enables the system to operate efficiently regardless of whether the sun is sufficient or not. When there is no sunlight, the blower fan 2 can be turned on so that the fins on the evaporative solar heat collector 1 can absorb the energy in the air. In FIG. 4 , 144 is a water temperature detection temperature sensor of the pressurized water tank, which is used to control the start and stop of heating the water temperature of the pressurized water tank during solar heat collection and heat recovery. the

Among them, the pedal type heat recovery device 3 in the waste heat recovery system is composed of a coarse filter layer 3-1, a recovery cavity 3-4, an evaporation coil 3-2 and a water leakage base 3-3; the coarse filter layer 3-1 is set on On the recovery cavity, the evaporation coil 3-2 is arranged in the recovery cavity, and the bottom of the recovery cavity is a leaky base 3-3. The coarse filter layer is used to prevent hair and large particles of dirt from entering the recall cavity or soaking tube heat exchanger, and enables the floor water from bathing to flow into the evaporating coil at a relatively uniform speed, creating conditions for uniform heat exchange. The leaky base is used to bear the weight of the human body, and there is space for the filter layer and the tube heat exchanger to be placed on the upper and lower sides, and the bathing floor water is immediately discharged or stored to be treated as reclaimed water. the

And the bath water temperature sensor 142 that is provided with in the pedal type heat recovery device 3, it is connected with intelligent controller 22, and intelligent controller 22 connects the access control circuit of three-way valve 9, by temperature sensor 142, intelligent controller 22 and three The through valve 9 constitutes the working state startup control circuit of the waste heat recovery system. When using this bathing system to take a bath, the floor water of bathing enters the evaporation coil 3-2 in the pedal heat recovery device 3 through the hair filter 3-1 (coarse filter) on the pedal heat recovery device 3, see Fig. 7 . Hair filters can be disposable or reusable. Bathing floor water passes through the hair filter to intercept hair and large particles of dirt, and the bathing floor water is delayed into the evaporative bath floor water pedal heat recovery device 3, which is recovered by the evaporative coil 3-2 in Fig. 7 Falling water energy. When the evaporative bath floor water heat recovery device has bath floor water, the temperature sensor 142 detects a change and transmits it to the intelligent controller 22. The intelligent controller 22 can determine whether the system enters the bath floor water heat recovery through calculation and processing according to other signals. Working mode, in the working mode of waste heat recovery of bathing floor water, the three-way valve 9 connects the waste heat recovery circuit, closes the evaporative solar heat collector 1, and the compressor 12 presses high-temperature and high-pressure gas into the first immersion condensing coil 191, The second immersion condensing coil 201 and the first immersion condensing coil 151, the high-temperature and high-pressure gas passes through each water tank in the condensing coil and is cooled by water, then passes through the dry filter 13 and is adjusted by the electronic expansion valve 11 to become low temperature The low-pressure liquid enters the evaporation coil 3-2 in the pedal heat recovery device 3. the

The hot water supply pipeline 211, the warm water supply pipeline 212, the water saver 213, the control valves 21a, 21b, and the water mixer 18 form an energy-saving constant temperature water supply. The water temperature of the warm water supply pipeline 212 connected to the warm water tank is about 36 degrees, and the hot water provided by the hot water supply pipeline 211 is at 50 degrees. The control valve 21a controls the warm water, the control valve 21b controls the hot water, and the water saver 213 The control valve 21a and the control valve 21b adopt such a structure of the water saver that can simultaneously control warm water and hot water to enter the water mixer 18. The control function of the water saver 213 is in place in time, which is conducive to water saving and water temperature control without changing the pipeline and water temperature. Mixed water mode (that is, personalized water temperature adjustment), in addition, mixing hot water and warm water is more than mixing hot water and cold water, the amount of hot water is used less, the operation time of mixing water is short, and the interference between uses is small, which can achieve water saving. Purpose. the

Among them, the reclaimed water treatment system collects the bathing floor water under the pedal type heat recovery device 3, and the sewage first passes through the hair filter to block hair and other large-scale dirt, and then sends the sewage into the air flotation aerator through the sewage pump 41. Under the action of the voltage, the floating aerator precipitates 10-20 micron bubbles with strong oxidation and negative ion characteristics on the two electrodes. Numerous tiny bubbles contact with the sewage in a large area during the floating process, and at the same time play a role in oxidation and sterilization. Organic molecular adsorption and flocculation can achieve the effect of high-efficiency water purification, and then the treated water is pressurized by the water pump 42 to pass through the ultrafiltration membrane 5 after being separated by flocculation foam, and the backwash valve 6 is opened. After disinfection by the sterilizer 7 (ultraviolet, ozone, etc. ) into the reclaimed water storage tank 8 to preserve and wait for use. The water level electrodes 23 and 25 are connected to the intelligent controller 22 to issue a backwash command to open the backwash valve 6, and the water in the reclaimed water storage tank 8 backwashes the ultrafiltration membrane 5 under the action of the gravity drop, and the accumulated dirt is passed through the reclaimed water pump 41 Rush into the pedal type heat recovery device 3 and then open the drain plug to be released by the backwash blowdown valve 85. When the water level electrodes 23, 24 were conducting, the intelligent controller 22 closed the backwash valve 6. In Fig. 4, 26 is the overflow pipe of the non-pressurized reclaimed water storage tank, which prevents water from being introduced into the sewer when the control fails. the

The intelligent controller determines the start, stop and position of the compressor, three-way valve, electronic expansion valve and fan through the real-time temperature fed back from the 4 temperature measurement points. The start and stop of the water pump and the solenoid valve are determined by the feedback signals from the two water level measurement points and the temperature measurement point. the

In the bathing system of the embodiment, solar energy provides no less than 70% of the energy. The solar energy contribution rate is higher than that of the balcony wall-mounted solar water heater. And because of "10 ℃ bathing", the original energy consumption is reduced by 60%. This means that the ecological bathing water heater can provide the same hot water capacity when the solar heat collecting area and the water tank are reduced by 60% compared with the common solar water heater. The "slimming" of solar water heaters has created excellent conditions for the application of solar energy in cities. It can change the appearance image of the solar water heater, which is large and bulky. It can create a great form and appearance that integrates with the building. Sewage treatment technology uses filtration, flocculation, sewage discharge, disinfection, water storage, and reclaimed water for water supply. Let the bathing water, which accounts for one-third of people's domestic water, be classified and collected for resource treatment, and realize efficient recycling with a small investment for secondary use. the

The essential feature of the bathing system in this embodiment is that the solar heat pump water heater is combined with the heat pump heat recovery device, and the solar heat collector 1 (solar energy and air source evaporator) of the solar heat pump water heater is installed outdoors for solar energy and low-temperature heating in the air. Grade energy collection. The heat pump heat recovery device is installed indoors to quickly recover the heat energy of the bathing water, so that it can be reused nearby. The three-way valve switches the input and output of the solar heat collector and the heat recovery device (indoor and outdoor evaporators). A low-temperature mixing valve is placed between the tap water and the low-temperature water supply pipeline of the mixing valve to keep the water temperature of the low-temperature water supply pipeline at about 30 degrees. The purpose is to reduce the difference between the evaporation temperature and the condensation temperature of the system in the heat pump heat recovery mode The minimum, the system cop value reaches the maximum. When the electronic expansion valve 11 makes the capacity of the system vary from a wide range between 15% and 100%, it ensures that the system always works efficiently. The intelligent controller determines the start, stop and position of the compressor, three-way valve, electronic expansion valve and fan through the real-time temperature fed back from the 4 temperature measurement points. The start and stop of the water pump and the solenoid valve are determined by the signals fed back from the two water level measurement points and the temperature measurement point. The bathing system adopts a metal tubular structure with honeycomb fins through the solar heat collector 1 (solar energy, air source evaporator), and can be added with a forced convection fan. Metal honeycomb fins on metal tubes are installed on the south side of the building at an inclination angle to the local latitude. When there is sunlight, the honeycomb fins can absorb solar energy to the maximum extent, and when there is no sunlight, the metal honeycomb fins can greatly increase the area in contact with the air. Absorb low-grade energy in the air. the

The three-way valve 9 is used for the time-sharing function conversion between the evaporative solar heat collector 1 and the bath floor water pedal heat recovery device 3. The two functions of solar heat collection and energy recovery are a compressor 12 for optimizing the system. Necessary ways to reduce costs. the

Since the thermal energy of bathing ground water is recycled, the energy consumption in the bathing process is greatly reduced. Its main energy comes from solar energy. The characteristics of the circular chain are in line with the ecological concept of establishing a harmonious coexistence between man and nature, so it is called an ecological water heater. the

Example two

As shown in Figure 8, in the ecological bathing system provided by this embodiment, its heating equipment can adopt any one of solar collectors, electric heaters or boiler heaters 101. For ease of description, this embodiment uses boiler heaters As an example for illustration, the hot water outlet of the boiler heater 21 communicates with the water inlet of the hot water tank 19 through a pipeline, and the drain of the hot water tank 19 is connected through any one of the pipeline, the water pump 4 and the boiler heater 101. The water port is connected; a temperature sensor 141 is provided in the hot water tank 19, and the temperature sensor 141 is connected with the intelligent controller 22, and the water pump of the heating system is formed by the temperature sensor 141, the intelligent controller 22 and the water pump 4 connected with the intelligent controller 22 4 The working state starts the control circuit. The other parts of the system and the connection relationship of each part are the same as the implementation one. Wherein, the heating device may also adopt a solar heat collector or an electric heater, which does not limit the present invention. the

The bathing system of this embodiment can provide heat in a more flexible manner because the heat source can be non-solar energy, so that the application range of the system is wider, and it can be used in various places where a bathing system is required. the

The mixed water treatment part of the bathing system in the above-mentioned embodiments 1 and 2 is also an essential difference from the prior art. FIG. ℃ tap water is mixed to obtain 4 parts of 43 ℃ bathing water. The maximum temperature difference of this mixing method is 44 ℃, and the operating time is long (1-3 minutes) compared with the outlet water temperature difference of 33 ℃, which is difficult to operate and vulnerable to impact. Use 6-20 liters of water. Hot water consumption is high. Ordinary mixed water has a large temperature difference and takes a long time to operate. The amount of water used is 50 liters per person, and one ton of water can generally only wash 20 people.

Figure 10 is a schematic diagram of the water mixing treatment of the bathing system in the embodiment of the present invention, in which, 4 parts of 43 °C bath water are obtained by mixing 1 part of 54 °C hot water with 3 parts of 39 °C tap water, and the maximum temperature difference of this mixing method is 15 ℃, with a temperature difference of 4 ℃ from the outlet water, the operation time is short (10-30 seconds), easy to operate, the system temperature is stable, and the water is 1-3 liters. Use a lot of warm water. Due to the change of mixed water (technical water saving) and the application of water saving device (active water saving), the use of water is reduced from 60 liters per capita to 33 liters per ton of bathing water, which can wash 30 people. the

To sum up, the ecological bathing system of the embodiment of the present invention makes full use of solar energy, so that limited resources can be used in a high-level and refined manner. Realize the ecological balance of the city and complete the water ecological cycle process of tap water → heating water → hot water → bathing water → ground water → reclaimed water. the

The waste heat recovery technology adopted in the embodiment of the present invention recovers part of the temperature difference between ground water and tap water through heat exchange and heat pump heat recovery, and produces warm water with a temperature of about 37-42°C and hot water with a temperature of about 55°C . Warm water is used to supply the water storage tank of the solar heating system, which is continuously heated by solar energy to obtain mixed water for bathing, and hot water at 52-60°C and hot water heated by solar energy are used for energy storage and hot water supply. the

The bathing system of the embodiment of the present invention organically combines solar heating technology, heat recovery technology, water-saving technology and water treatment technology to form water, energy, space, and natural resources to serve the human body to bathe and realize high efficiency and harmony , health, and self-regulating ecological cycle chain, so that energy saving, water saving, and space saving are originally diversified technical issues into a complete system, and the principles of reduction, reuse, and resource utilization are established to achieve low consumption Low emissions and high efficiency. the

The above is only a preferred embodiment of the present invention, but the scope of protection of the present invention is not limited thereto. Any person skilled in the art within the technical scope disclosed in the present invention can easily think of changes or Replacement should be covered within the protection scope of the present invention. Therefore, the protection scope of the present invention should be determined by the protection scope of the claims. the

Claims (10)

1. A kind of ecological bathing system, is characterized in that, this system comprises: Heating equipment, hot water tank (19), warm water tank (20), preheated water tank (15), water pump (4), water mixer (18), pedal heat recovery device (3), compressor (12), Liquid storage tank (10), first immersion condensing coil (191), second immersion condensing coil (201), third immersion condensing coil (151), filter drier (13) and electronic expansion valve (11); Wherein, the heating device communicates with the hot water tank (20) through pipelines to form a heating system; The warm water tank (20) is communicated with the hot water tank (19) and the preheated water tank (15) respectively through pipelines, and the preheated water tank (15) is provided with a cold water inlet pipe (151) connected to a tap water supply pipe. The box (19) is provided with a hot water supply port, and the warm water tank (20) is provided with a warm water supply port, and the hot water supply port and the warm water supply port pass through the hot water supply pipeline (211) and the warm water supply pipeline ( 212) and water-saving device (213), control valves (21a, 21b) and water mixer (18) are connected to form a water-saving water supply system; The pedal heat recovery device (3) is arranged corresponding to the water mixer (18), and the recovery cavity of the pedal heat recovery device (3) is connected with the liquid storage tank (10), the compressor (12) through the pipeline in sequence. ), the first immersion condensing coil (191) set in the hot water tank (19), the second immersion condensing coil (201) set in the warm water tank (20), the preheating water tank The third immersion type condensation coil (151), the dry filter (13), the electronic expansion valve (11) and the evaporation coil of the pedal heat recovery device (3) arranged in (15) are connected to form a waste heat recovery system; The reclaimed water outlet of the recovery chamber of the pedal type heat recovery device (3) is connected with the reclaimed water treatment system through a pipeline (81). 2. The system of claim 1, wherein the heating device comprises: Any of solar heat pump heaters, solar collectors, electric heaters or boiler heaters. 3. The system according to claim 2, wherein when the heating equipment adopts any one of solar collectors, electric heaters or boiler heaters, the hot water of the electric heaters or boiler heaters The outlet is communicated with the water inlet of the hot water tank (19) by the pipeline and the water pump, and the drain of the hot water tank (19) is communicated with the water return port of the electric heater or the boiler heater by the pipeline through the water pump (4). the 4. The system according to claim 2, wherein when the heating equipment adopts a solar heat pump heater, the outlet of the evaporation coil of the evaporative solar heat collector (1) of the solar heat pump heater is sequentially connected with the Three-way valve (9), liquid storage tank (10), compressor (12), first immersion condensing coil (19), second immersion condensing coil (19), third immersion condensing coil ( 19), the drying filter (13), the electronic expansion valve (11) and the evaporation coil inlet of the evaporative solar heat collector (1) are connected. the 5. The system according to claim 4, wherein the solar heat pump heater further comprises: a temperature sensor (141) is arranged in the evaporative solar heat collector (1), and the temperature sensor (141 ) is connected with intelligent controller (22), constitutes the evaporative solar heat collector (1) by temperature sensor (141), intelligent controller (22) and the three-way valve (9) that is connected with intelligent controller (22) The working state starts the control circuit. the 6. The system according to claim 4 or 5, characterized in that, the evaporative solar heat collector (1) is a flat-plate solar heat collector, and the flat plate (1-5) has vent holes (1-5). 2), fins (1-1) are set on the front of the plate (1-5), and a cavity (1-4) is set on the back of the plate (1-5), and an evaporator is arranged in the cavity (1-4) Pipe (1-3), one end of the evaporating coil (1-3) is used as the outlet of the evaporating coil of the solar collector, and the other end of the evaporating coil (1-3) is used as the inlet of the heat pipe of the solar collector, and the evaporating coil ( 1-3) One end of the cavity (1-4) is provided with an exhaust fan (2). the 7. The system according to claim 1 or 2, characterized in that, the reclaimed water treatment system comprises: a shut-off valve (81), a hair filter (82), an air flotation aerator (83), a multi-media Filter (84), backwash valve (6), sterilizer (7) and reclaimed water storage tank (8) are connected successively by pipeline; Wherein, described reclaimed water storage tank (8) is provided with multiple An overflow pipe (26) is connected in the water level electrodes (23, 24, 25) and the reclaimed water storage tank (8) for measuring the water level. the 8. The system according to claim 1, characterized in that, the pedal heat recovery device specifically comprises: a coarse filter layer (3-1), a recovery cavity (3-4), an evaporation coil (3-2 ) and the leaky base (3-3); the coarse filter layer (3-1) is set on the recovery cavity, the evaporation coil (3-2) is set in the recovery cavity, and the bottom of the recovery cavity is the leaky base (3-3 ). the 9. The system according to claim 1 or 8, characterized in that, the pedal heat recovery device further comprises: a bath water temperature sensor (142) arranged in the pedal heat recovery device (3), which is connected to the intelligent The controller (22) is connected, the intelligent controller (22) is connected to the access control circuit of the three-way valve (9), and the waste heat recovery system is composed of the temperature sensor (142), the intelligent controller (22) and the three-way valve (9). The working state starts the control circuit. the 10. The system according to claim 1, characterized in that, a temperature sensor for detecting the temperature of recycled bath water is set on the pipeline between the pedal heat recovery device (3) and the liquid storage tank (10) (143), the temperature sensor (143) is connected to the intelligent controller (22), and the intelligent controller (22) is connected to the electronic expansion valve (11) to jointly form a control circuit for adjusting the opening of the electronic expansion valve (11). the
