Abstract

The invention relates to an electric shock killing device for adult diamondback moths, in particular to a mobile electric shock killing device for adult diamondback moths. The device includes a mobile vehicle (1), a power grid (2) and a power supply (3) with a high voltage generating circuit. The power grid (2) is arranged on the side of the mobile vehicle (1) moving direction, and the power supply (3) is arranged on the mobile vehicle (1) and connected to the power grid (2) through a high-voltage generating circuit; the device is manually controlled along the side of the vegetable field. The ditch moves to the front, so that the adult diamondback moths that are startled and fly upwards are caught and killed by electric shock through the grid. Compared with the traditional technology, the invention has the technical effects of convenient operation, high efficiency and no pollution, and is used for direct killing diamondback moth in standardized agricultural vegetable fields.

Description

Mobile diamondback moth adults electric shock killing device

technical field

The invention relates to a device for killing adults of diamondback moth by electric shock, in particular to a mobile device for killing adults of diamondback moth by electric shock. Grid electric shock hunt.

Background technique

Plutella xylostella is a worldwide pest that damages cruciferous vegetables. It damages the leaves of cruciferous vegetables, such as cabbage, cauliflower, cabbage, radish, cabbage, green vegetables, etc. The annual damage loss is more than 30%, and its adult length is 6-7 mm, with a wingspan of 12 to 16 mm. The body color of the male adult is heavier, and the forewings are mostly brown. From the base of the wing to the outer edge, there are three obvious curved ripples along the entire rear edge. When resting, the two closed wings The upper light-colored part is assembled into three oblique squares, and the trailing edge of the wings is dense and long, and each wing is in the shape of a boat. It is nocturnal, has phototaxis, and has weak flying ability. When frightened, it flies short distances between plants and can mate many times in its life. The forewings of the male moth are light grayish brown, and the distal segment of the abdomen is tubular and undivided. Eggs are oval, about 0.5 mm long, from milky white at the beginning to light yellow-green at the end. The larvae are about 10-12 mm long, light green in color, spindle-shaped, with sparse long black setae on the body surface. The pupa is about 5-8 mm long, green at first, and then grayish brown. There are cocoons, off-white, sparse and transparent. Its main habits are as follows: 1. The annual generation algebra is 3-19 generations from north to south. For example, 3-4 generations in the north, 18-19 generations will occur in Taiwan; 2. Overwintering insect state, in the north, the pupae survives the winter in the sun-lit dead leaves and weed piles, and in the south, the adults mainly hide in the fallen leaves and leaves of the stumps. Overwinter on weeds. The adults of the overwintering generation in Shandong appear in April, and the first generation of larvae appears at the end of April; 3. The adults are nocturnal, hiding in the dense branches and leaves of plants during the day, and become active near dusk to lay eggs. Most active at midnight. Adults have phototaxis, and adults live longer. The oviposition period is long and uneven, so the generation overlap phenomenon is serious; 4, oviposition habit, a female generally lays about 200 eggs, mostly in the depression between the leaf veins on the back of the leaf, single scattered eggs and 3 ～5 small egg masses basically account for half each; 5. Each ecological period, the egg period is about 5 days, the larvae have a total of 4 instars, about 12-27 days, and the pupae period is 8-14 days; 6. Larval habits, more after maturity Cocooning and pupating on the back of leaves or fallen leaves. When the larvae are disturbed, they will violently twist and retreat or spin silk drooping; 7. The environment for occurrence, the optimum temperature for development is 20-30°C, when the weather is warm and there is little rain Serious damage. The occurrence is heavier in spring in the north, and the spring and autumn in other areas are heavier than summer.

The current traditional micro-pollution and pollution-free control techniques: 1. Agricultural control, including timely removal of weeds and litter to eliminate overwintering pupae and mature larvae. Reasonably arrange vegetable crops to avoid planting cruciferous vegetables in a small area year after year; 2. Biological control. The natural enemies of diamondback moths mainly include spiders, lacewings, frogs, and parasitic diamondback moth seedling wasps and diamondback moth gnats. wait. In addition, granulose virus has a certain control effect on the population of diamondback moth. In the application of microbial pesticides, you can choose 1000 times liquid of BT emulsion or bacteria powder of Cerocidal bacteria, or HD-1 bacteria powder, or 500-1000 times liquid spray of 7216 bacteria powder with a spore content of 10 billion/g, after 7 days Spray it again. In order to improve the adhesion rate of biological bacteria powder, 0.1% washing powder can be evenly mixed into the bacteria solution; 3. Trapping, using the phototaxis habit of diamondback moth, trap adults with black light or other light sources at 7-11 in the evening , the time is mainly arranged in April-May and August-September; 4. The use of sex attractants. In recent years, there are two methods of successful experiments and set-up points of application. One is to put 1 to 2 female moths into 60 In the purpose gauze net, a potion pot is set under the net to lure the males to hunt and kill. According to the experiment, 220-500 males can be lured at one time. The second is to cut off the rear end of the abdomen of the female moth, extract the sex inducer with an organic solvent such as benzene or methylene chloride, and spray or drop it on a small paper tube made of absorbent paper (a small paper tube uses a 5 x 5 cm square. Paper rolls), hang the paper slips with wire and hang them 1 cm above the wooden basin with washing powder or odorless pesticides, hang them in the field every evening, and take them back in the morning. The one-time lure extract can generally be used for 7 to 10 days , in a radius of 100 meters, it can trap nearly a thousand male moths at most in one night; 1000-1500 times liquid. Spray control before the 2nd instar larvae.

Although the various traditional methods mentioned above can achieve a certain effect to a certain extent or in combination, they may also cause another biological hazard risk due to the shortcomings of their respective prevention and control, such as biological control, which are difficult to implement and control. The use of traps and sex lures is limited by their radiation range and requires a lot of tools and manpower input, making it difficult to popularize and apply. Chemical control is the most basic method at present, but due to the many generations of Plutella xylostella in my country, the serious overlapping of generations, and the inconsistency of field larval ages, the Plutella xylostella has developed extremely high resistance to pyrethroid pesticide control after long-term use of pesticides. The control effect of pyrethroid pesticides is extremely poor, and high resistance to organophosphorus and carbamate pesticides has been produced, and the control effect of single agent in the field is not ideal. Although high-efficiency, low-toxicity, and low-residue compound preparations have good effects, their prices are relatively expensive, which greatly increases the cost of prevention and control.

Contents of the invention

The technical problem to be solved by the present invention is to provide a mobile electric shock killing device for adult diamondback moths that is manually controlled to move along the side ditch of the vegetable field to startle the adult diamondback moths to fly upwards and crash into the power grid for electric shock killing. The invention can not only save a large amount of investment in capital, manpower and material resources, but also has the technical effects of convenient operation, high efficiency and no pollution.

In order to solve the above-mentioned technical problems, a mobile type diamondback moth adult electric shock killing device of the present invention is characterized in that: the device includes a mobile vehicle that can move forward along the side ditch of the vegetable field controlled by manpower, a power grid, and a power grid with a high-voltage generating circuit. The power supply, the power grid is arranged horizontally on the side of the mobile vehicle moving direction, the grid surface and the vegetable leaf surface keep a certain distance, the power supply is arranged on the mobile vehicle and connected to the power grid through a high-voltage generating circuit; the power grid includes a fixed frame and horizontal connecting rods; the power grid includes upper and lower net layers connected to the positive and negative poles, and the power grid is provided with conjoined trapping net skirts on the left and right sides and the rear side. Alarmed diamondback moth adults fly upward and crash into the grid for electric shock hunting.

After the above-mentioned structure is adopted in the present invention, the mobile vehicle is manually controlled to move forward along the side ditch of the vegetable field, and the grid adjusts the height of the mesh surface fixed on the mobile vehicle so that a certain distance is maintained between the grid surface and the vegetable leaf surface. After the power switch is turned on, the positive and negative grids of the power supply are connected through the separate circuits of the high-voltage generating circuit to form a positive and negative bipolar circuit. Compared with the traditional technology, the invention has the technical effects of convenient operation, high efficiency and no pollution, and is used for direct killing diamondback moth in standardized agricultural vegetable fields, and its use can not be limited by the use time.

Further improvement scheme of the present invention:

In the above-mentioned mobile adult diamondback moth electric shock killing device, the mobile vehicle includes two symmetrical and synchronous left and right mobile vehicles, and the power grid is arranged horizontally between the left and right mobile vehicles. To apply to wider (more than 1.2 meters) designed vegetable fields, the left and right mobile vehicles connected to the corresponding wider grid are controlled by two people moving forward synchronously.

In the above-mentioned mobile adult diamondback moth electric shock killing device, grids arranged in a horizontal direction are arranged symmetrically on the left and right sides of the moving direction of the mobile vehicle. The left and right symmetrical power grids on both sides of the mobile vehicle maintain a left-right balance, making it easier to control the mobile vehicle when it moves, and can double the work efficiency.

The above-mentioned mobile diamondback moth adult electric shock killing device, the mobile car includes a moving wheel, a push rod that doubles as a frame, and a handle. The moving wheel is arranged on the lower part of the push rod, and the handle is arranged on the upper part of the push rod. Just push forward.

In the above-mentioned mobile adult diamondback moth electric shock killing device, the grid includes a fixed frame, several sub-grids buckled in the fixed frame and horizontal connecting rods. The positive and negative poles of each sub-grid are respectively connected in series, and the small sub-grids are convenient for disassembly and assembly and reduce production costs.

In the above-mentioned mobile adult diamondback moth electric shock killing device, the power grid is provided with one-piece rounding net skirts on the left, right and rear sides. The trapping net skirt hangs down to the vegetable leaf surface to trap and alarm the diamondback moth.

In the above-mentioned mobile type adult diamondback moth electric shock killing device, a horizontal shock lever is provided on the lower side of the power grid, and the end of the shock lever is fixedly connected with the push rod. The scaring rod can be adjusted relative to the fixed height on the push rod, and when in use it is level with the vegetable leaf surface to startle the diamondback moth. A drooping startling net can be set on the startling rod to adapt to the uneven vegetable leaf surface to achieve a better effect of alarming the diamondback moth.

In the above-mentioned mobile type adult diamondback moth electric shock killing device, the grid is arranged on a horizontal connecting rod to be able to rotate to adjust the angle of the grid surface, and the end of the horizontal connecting rod is fixedly connected to the push rod to adjust the height of the grid surface. To adjust the height and angle of the net surface for optimal electric shock hunting.

The above-mentioned mobile type diamondback moth adult electric shock killing device, the sub-grid includes a sub-fixed frame and an upper and lower net layer connected to positive and negative electrodes when energized, and the grids of the upper and lower net layers are staggered to facilitate the diamondback moth to fly into it. When the power grid is connected, the positive and negative power grids can be turned on and killed by electric shock.

Description of drawings

The present invention will be described in further detail below in conjunction with the embodiments in the accompanying drawings, but this does not constitute any limitation to the present invention.

Fig. 1 is a schematic structural view of a specific embodiment of the present invention;

Fig. 2 is the right view of Fig. 1;

Fig. 3 is the top view of Fig. 1;

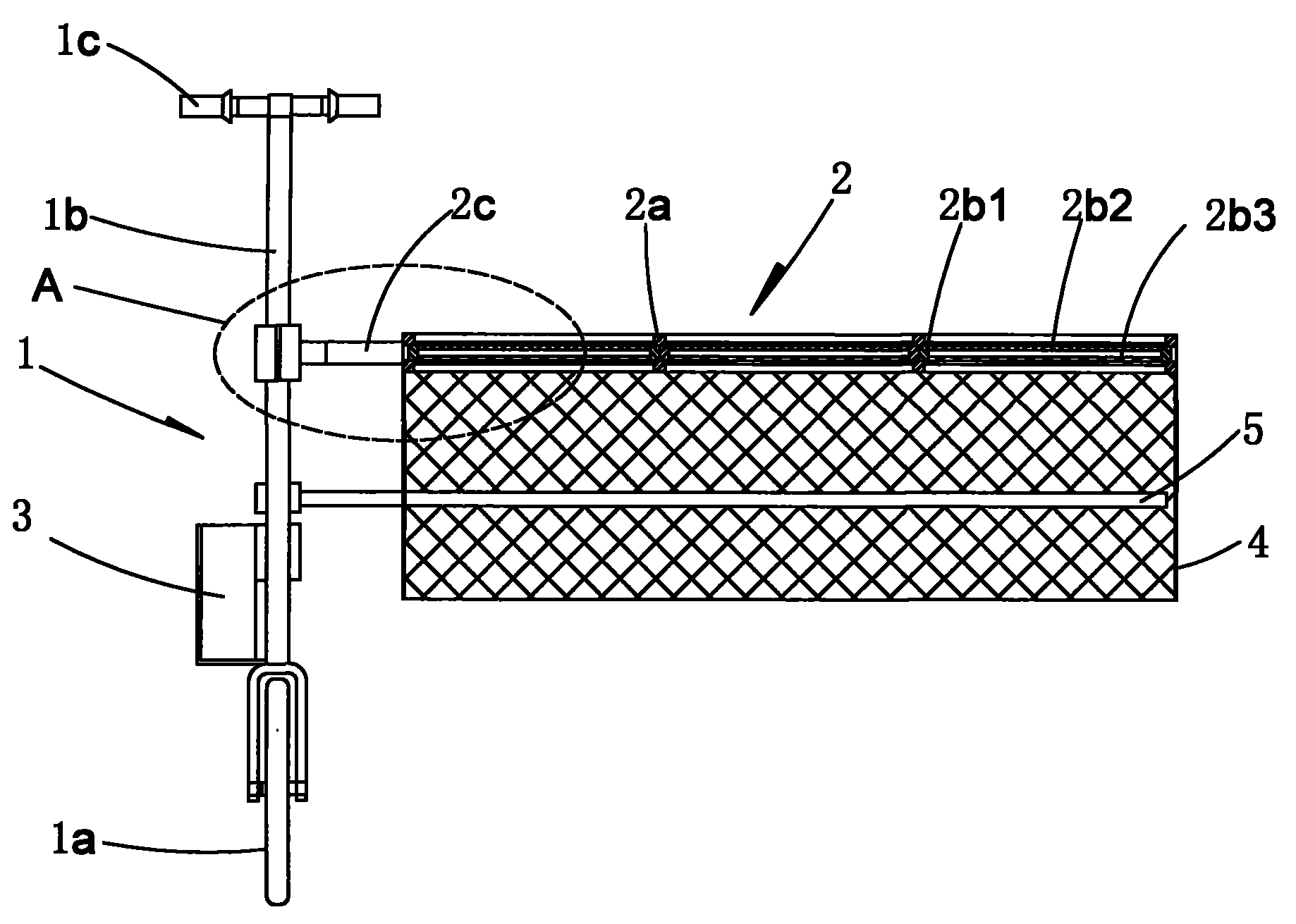

Fig. 4 is a further improved structural schematic diagram of a specific embodiment of the present invention;

Fig. 5 is a schematic structural diagram of a second embodiment of the present invention;

Figure 6 is a top view of Figure 5;

Fig. 7 is a schematic structural diagram of a second embodiment of the present invention;

Fig. 8 is a further improved structural schematic diagram of Embodiment 3 of the present invention;

Fig. 9 is a top view of Fig. 7;

Fig. 10 is another kind of specific implementation structural diagram of mobile vehicle of the present invention;

FIG. 11 is a partially enlarged view of part A of FIG. 4 .

In the figure: 1 is the mobile car, 1a is the moving wheel, 1b is the push rod, 1c is the handle, 2 is the grid, 2a is the fixed frame, 2b1 is the sub-fixed frame, 2b2 is the upper layer, 2b3 is the lower layer, 3 is Power supply, 4 is the net skirt, 5 is the shock pole, and 6 is the shock net.

Detailed ways

Example 1

Referring to Fig. 1, Fig. 2, Fig. 3, Fig. 4 and Fig. 11, the mobile diamondback moth adult electric shock killing device includes a mobile vehicle 1, a power grid 2 and a power supply 3 with a high-voltage generating circuit, and the power grid 2 is in a horizontal direction It is arranged on the side of the mobile vehicle 1 in the moving direction, and the power supply 3 is arranged on the mobile vehicle 1 and connected to the power grid 2 through a high-voltage generating circuit. Wherein the power supply 3 is arranged on the other side of the mobile vehicle 1 opposite to the grid 2 to balance the gravity of the grid 2 . The high-voltage generating circuit of the power supply is arranged in the power box body, and the high-voltage generating circuit generally includes a booster and a circuit protection device, an on-off indicator light and an on-off switch, and the on-off indicator light and the on-off switch are arranged on the handle for convenient control. When the grid 2 is turned on, the input power supply voltage is 6V, the output pulse voltage is a safe voltage of 3KV-7KV, and the current is 100-200mA, which is a safe current that is harmless to human body. The mobile vehicle 1 includes the mobile wheel 1a, the push rod 1b and the handle 1c which doubles as the vehicle frame; the grid 2 includes a fixed frame 2a, six sub-grids 2b buckled in the fixed frame 2a and a horizontal connecting rod 2c; the grid 2 is arranged in a horizontal The connecting rod 2c can be rotated to adjust the angle of the mesh surface, and the end of the horizontal connecting rod 2c is buckled and fixedly connected with the push rod 1b to adjust the height of the mesh surface; the sub-grid 2b includes a sub-fixed frame 2b1 and upper and lower mesh layers 2b2, 2b3 of positive and negative electrodes. The grid spacing of the power grid 2 is 16-20mm, and the upper and lower grid layers 2b2 and 2b3 are arranged in a staggered position, and the spacing between them is 3-8mm.

Referring to Fig. 4, the power grid 2 is provided with a conjoined trapping net skirt 4 on the left and right sides and the rear side, and the lower side of the power grid 2 is also provided with a horizontally arranged startle bar 5, and the end of the startle bar 5 is connected to the The push rod 1b is snapped and fixedly connected. The shocking rod 5 can be adjusted relatively to its fixed height with the push rod 1b, and when in use is level with the vegetable leaf surface to startle the diamondback moth.

Example 2

Referring to Fig. 5 and shown in Fig. 6, mobile diamondback moth adult electric shock killing device, mobile car comprises two symmetrical and synchronous mobile left and right mobile cars 1 ', 1 ", and grid 2 is horizontally arranged on left and right mobile cars 1 ', 1 " between. The power grid 2 includes a fixed frame 2a, six sub-grids 2b buckled in the fixed frame 2a, and a horizontal connecting rod 2c; It is fixedly connected with the push rod 1b of the left and right mobile vehicles 1′, 1″ to adjust the height of the mesh surface, and the two ends of the horizontal connecting rod 2c are respectively provided with rotatable hinged adjustment heads, which can automatically adjust the position deviation problem when moving.

Example 3

Referring to Fig. 7 and Fig. 9, the mobile diamondback moth adults are electrocuted and killed, and the left and right sides of the moving direction of the mobile vehicle 1 are symmetrically provided with a power grid 2 arranged in a horizontal direction. The mobile vehicle 1 includes the mobile wheel 1a, the push rod 1b and the handle 1c which doubles as the vehicle frame; the grid 2 includes a fixed frame 2a, six sub-grids 2b buckled in the fixed frame 2a and a horizontal connecting rod 2c; the grid 2 is arranged in a horizontal The connecting rod 2c can be rotated to adjust the angle of the mesh surface, and the end of the horizontal connecting rod 2c is snapped and fixedly connected with the push rod 1b to adjust the height of the mesh surface. The grids 2 on the left and right sides can be adjusted to different heights respectively, so as to adapt to vegetable leaf surfaces of different heights on both sides. Referring to shown in Fig. 8, the power grid 2 is provided with one-piece encirclement net skirt 4 on the left and right sides and the rear side, and the lower side of the power grid 2 is also provided with a horizontally arranged startle bar 5, and the end of the startle bar 5 is connected with the pusher. The rod 1b is snapped and fixedly connected. The shocking rod 5 can be adjusted relatively to its fixed height with the push rod 1b, and when in use is level with the vegetable leaf surface to startle the diamondback moth. The drooping startling net 6 can be set on the startling rod 5 to adapt to the uneven vegetable leaf surface to better startle the effect of diamondback moth.

When the present invention is used in practice, the mobile vehicle 1 is manually controlled to move forward along the side ditch of the vegetable field, and the grid 2 can adjust the height of the mesh surface fixed on the mobile vehicle, so that the grid surface of the grid 2 is kept at a certain distance from the vegetable leaf surface . After turning on the switch of the power supply 3, the upper and lower net layers 2b2 and 2b3 of the positive and negative poles of the power supply are connected through the respective circuits of the high-voltage generating circuit to form a positive and negative bipolar circuit. Net layers 2b2, 2b3 are hunted and killed by electric shock.

The embodiments described above are only preferred embodiments of the present invention. As mobile car 1 can also be designed as a side-by-side two-wheel structure (refer to shown in 10) or front and back two-wheel structure or the structure of more than two wheels, realize balance grid gravity and increase stability; The frame of the mobile vehicle 1 is provided with an independent fixed pole, and the horizontal connecting rod 2c of the power grid 2 is connected with the pole to achieve a buckle-fixed connection according to the height of the grid surface as required. Wherein the fixed pole itself can also adopt the telescopic sleeve type structure, the horizontal connecting rod 2c of the grid 2 is fixedly connected with the upper end of the pole, and the technical effect of lifting adjustment can be realized by fixing the pole after telescopic adjustment. The grid 2 can also be composed of a plurality of foldable sub-grid grids, hinged connections are arranged between the sub-grid grids, the phase circuits of the sub-grid grids are connected in series and connected to the high-voltage generating circuit of the power supply 3, and the foldable sub-grid It can realize the technical effect that the power grid 2 is convenient for production, mold making and transportation, and when the rotation position is not enough during use, the length can be reduced by dismantling and the technical effect can be conveniently placed after disassembly; Negative electrodes parallel to each other with wire structure or three-layer mesh structure. It should be pointed out that those skilled in the art can make some structural adjustments and improvements without departing from the principle of the present invention, and these should also be considered as belonging to the protection scope of the present invention.

Claims (7)

1. A mobile type diamondback moth adult electric shock catching and killing device is characterized in that: the device comprises a mobile vehicle (1), a power grid (2) and a power supply (3) with a high-voltage generating circuit, and the power grid (2) is in a horizontal direction It is arranged on the side of the mobile vehicle (1) in the direction of movement, and its grid surface is kept at a certain distance from the vegetable leaf surface. The power supply (3) is arranged on the mobile vehicle (1) and connected to the grid (2) through a high-voltage generating circuit; The power grid (2) includes a fixed frame (2a) and a horizontal connecting rod (2c); the power grid includes upper and lower net layers connecting the positive and negative poles, and the power grid (2) is provided with connected bodies on the left and right sides and the rear side The trapping net skirt (4) alarms diamondback moth adults to fly upwards and crash into the power grid to catch and kill by electric shock when the manpower control moves forward along the side ditch of the vegetable field. 2. The mobile type diamondback moth adult electric shock killing device according to claim 1, characterized in that: the mobile vehicle includes two symmetrical and synchronous left and right mobile vehicles (1', 1 "), and the power grid (2) is in the form of The horizontal direction is arranged between the left and right mobile vehicles (1', 1"). 3. The mobile type diamondback moth adult insect killing device by electric shock according to claim 1, characterized in that: grids (2) arranged in a horizontal direction are arranged symmetrically on the left and right sides of the moving direction of the mobile vehicle (1). 4. The mobile type diamondback moth adult electric shock killing device according to claim 1, 2 or 3, characterized in that: the mobile vehicle (1) comprises a mobile wheel (1a), a push rod (1b) which doubles as a vehicle frame, and handle (1c). 5. The mobile type diamondback moth adult electric shock killing device according to claim 1, 2 or 3, characterized in that: the grid (2) includes several sub-grids (2b) buckled in the fixed frame (2a) , the sub-grid (2b) includes a sub-fixed frame (2b1). 6. mobile type diamondback moth adult electric shock killing device according to claim 4, is characterized in that: described grid (2) lower side is also provided with the startle lever (5) that horizontal direction is arranged, and described startle lever ( 5) The end is snapped and fixedly connected with the push rod (1b). 7. The mobile type diamondback moth adult electric shock killing device according to claim 4, characterized in that: the grid (2) is arranged on the horizontal connecting rod (2c) and can rotate to adjust the angle of the mesh surface, and the horizontal connecting rod (2c) The end is snapped and fixedly connected with the push rod (1b) to adjust the height of the mesh surface.
