CN101491903B - Plate type computer cutting device with automatic feeding function - Google Patents

Abstract

The invention discloses a flat-panel computer cutting machine with automatic feeding function, which includes a workbench, a movable bridge sliding back and forth along the workbench, a feeding frame and a cutting head. A clamping device, the clamping device is two pneumatic chucks distributed on both sides of the movable bridge. There is a sheet material bead on the paper feeding side of the workbench. The sheet material bead is connected to the workbench through screws, and the screw is connected with a spring that exerts pressure on the sheet material bead. After the cutting step, the chuck clamps the sheet, and the movable bridge drives the chuck to move forward together. At this time, the cut flat sheet is pushed away from the cutting area of the worktable, and the flat sheet to be cut is pulled into the cutting area. Carry out the cutting of the next step, and repeat the cycle continuously to realize automatic material feeding, save labor costs and improve production efficiency.

Description

A flat computer cutting machine with automatic feeding function

Technical field:

The invention relates to a tablet computer cutting machine.

Background technique:

As we all know, clothing plate making, leather products and paper products are all cut and cut on flat sheet materials. The cutting process is completed by using a tablet computer cutting machine. Every time a cutting step is completed, the operator must manually The sheet to be processed is pulled to the cutting area of the workbench. Since the cutting machine needs to be manually fed, the production efficiency is low, and at least one worker is required to operate, which increases labor costs.

Invention content:

The object of the present invention is to provide a flat computer cutting machine with an automatic feeding function in order to overcome the above-mentioned shortcomings of the prior art.

In order to achieve the above object, the technical solution provided by the present invention is: a tablet computer cutting machine with automatic feeding function, including a workbench, a movable bridge that slides back and forth along the workbench, a feeding frame and a cutting head. A clamping device controlled by a computer is installed on the top.

The clamping device is two pneumatic chucks distributed on both sides of the movable bridge.

There is a sheet bead on the paper feeding side of the workbench.

The sheet material bead is connected with the workbench through screws, and the screw is pierced with a spring that exerts pressure on the sheet material bead.

After the above-mentioned improvement of the computerized flat panel cutting machine, after each cutting step is completed, the chuck clamps the sheet, and the movable bridge drives the chuck to move forward together. At this time, the cut flat sheet is pushed away from the cutting area of the workbench. , the flat sheet to be cut is pulled into the cutting area for the next step of cutting, and the cycle is repeated continuously to realize fully automatic feeding, saving labor costs and improving production efficiency.

Description of drawings:

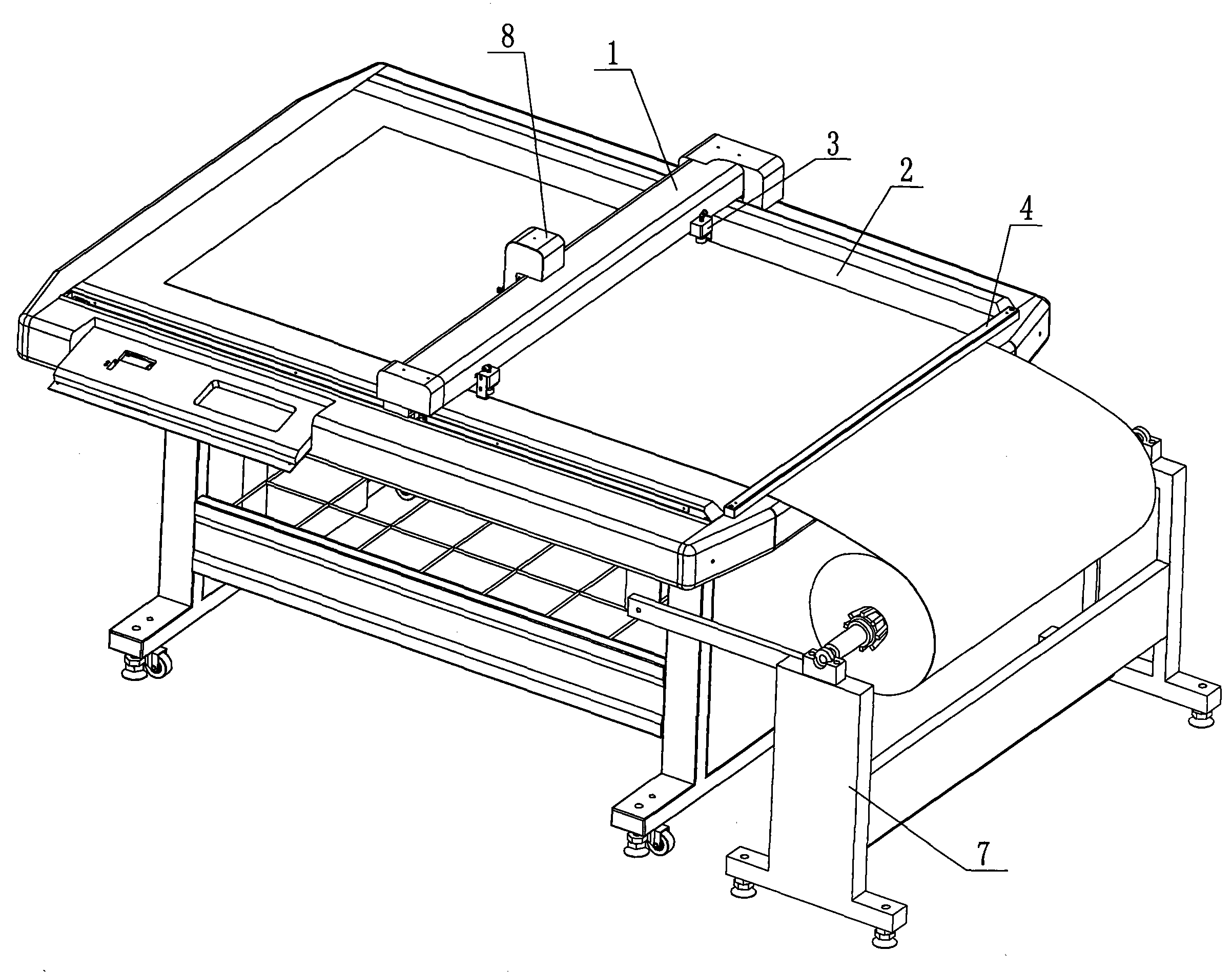

Fig. 1 is the schematic diagram of the three-dimensional structure of the tablet computer cutting machine of the present invention;

Fig. 2 is a three-dimensional exploded view of the tablet computer cutting machine of the present invention;

FIG. 3 is an enlarged view of part A of FIG. 2 .

Detailed ways:

Now elaborate the present invention in conjunction with accompanying drawing:

This tablet computer cutting machine is specially designed for cutting cardboard or leather. It includes a working table 2, a movable bridge 1, a feeding frame 7 and a cutting head 8. The movable bridge 1 can slide forward and backward along the slide rail according to the instructions of the computer. 1. Pneumatic chucks 3 are installed on both sides of the clamping action controlled by the computer. The clamping action of the pneumatic chuck 3 is also controlled by the computer. On the paper feeding side of the workbench 1, there is a sheet material bead 4, and the sheet material The bead 4 is connected to the workbench 2 through the screw 5, and the screw 5 is pierced with a spring 6 that exerts pressure on the bead 4, so that the cardboard or leather is straightened after passing through the bead 4, the purpose is to ensure that the cardboard or leather The two edges of the cylinder are always between the upper and lower clips of the pneumatic chuck 3.

The working steps of the tablet computer cutting machine are as follows:

a. The computer instructs the pneumatic chuck 3 to clamp the edge of the cardboard or leather;

b. The movable bridge 1 drives the pneumatic chuck 3 to slide forward together, pulling the cardboard or leather to the cutting area of the workbench 2;

c. Release the pneumatic chuck 3 to cancel the clamping action on the cardboard or leather;

d. The cutting head 8 on the movable bridge 1 performs the cutting action;

e. After the cutting is completed, the movable bridge 1 returns to the starting position, the pneumatic chuck 3 clamps the cardboard or leather again, the movable bridge 1 and the pneumatic chuck 3 slide forward, and the cut cardboard or leather is pushed away from the workbench, At the same time the cardboard or leather behind is pulled to the cutting area for cutting.

Repeatedly and continuously, the entire working process does not need to stay workers to operate, and realizes automatic production.

The embodiments described above are only preferred embodiments of the present invention, and are not intended to limit the scope of the present invention. Therefore, all equivalent changes made according to the shape, structure and principle of the present invention should be covered by the scope of the present invention. within the scope of protection.

Claims (4)

1. A tablet computer cutting machine with automatic feeding function, including a workbench (2), a movable bridge (1) sliding back and forth along the workbench (2), a feeding frame (7) and a cutting head (8) , the cutting head (8) is installed on the movable bridge (1) and slides along the direction perpendicular to the feeding direction. The bridge (1) moves together to the clamping device in the cutting area. 2. A tablet computer cutting machine with automatic feeding function according to claim 1, characterized in that: the clamping device is two pneumatic chucks ( 3). 3. A tablet computer cutting machine with automatic feeding function according to claim 1, characterized in that: a sheet bead (4) is arranged on the paper feeding side of the workbench (2). 4. A kind of tablet computer cutting machine with automatic feeding function according to claim 3, characterized in that: the sheet metal bead (4) is connected with the workbench (2) by a screw (5), and the screw (5) ) is pierced with a spring (6) that exerts pressure on the sheet material bead (4).
