Abstract
本发明涉及脚部按摩器技术领域，特指一种脚部按摩器及穴位按摩方式，本发明通过不同的按摩方式和穴位组合刺激脚部的穴位，刺激脚底板反射带机能，促进血液循环，进而使相对应的器管血行畅通，具有更好的按摩保健功能；脚部按摩器包括脚部架和腿部架，脚部架上设置有脚部按摩装置，腿部架装设在脚部架上端，腿部架上设置有腿部按摩装置；本发明通过腿部架以及设置在腿部架上的腿部按摩装置能够针对人的膝盖和大腿进行按摩，增加按摩器的按摩功能，本发明解决了目前的脚部按摩器无法对人的膝盖和大腿进行按摩的问题。
The invention relates to the technical field of foot massagers, in particular to a foot massager and acupoint massage methods. The invention stimulates the acupoints of the feet through different massage methods and combinations of acupoints, stimulates the reflex function of the soles of the feet, and promotes blood circulation. And then make the corresponding organ blood flow unimpeded, have better massage health care function; The foot massager includes foot frame and leg frame, foot massage device is arranged on the leg frame, leg frame is installed on the foot At the upper end of the frame, a leg massage device is arranged on the leg frame; the present invention can massage people's knees and thighs through the leg frame and the leg massage device arranged on the leg frame, and increase the massage function of the massager. The invention solves the problem that the current foot massager cannot massage people's knees and thighs.
Description
Technical field:
The present invention relates to the foot massage device technical field, refer in particular to a kind of foot massage device and acupuncture-point massaging way.
Background technology:
At present, various forms of foot massage devices are arranged on the market, foot massage device can only be massaged people's foot.For example, the patent No. has disclosed a kind of foot massage device for " 200620060273.6 " patent name for the Chinese patent of " foot massage device ", it provides a kind of masseur that can massage people's foot, but it can only be massaged at people's foot, its massage assembly can't touch people's knee joint and thigh, can't massage people's knee joint and thigh.Moreover foot massage device is not massaged at the acupuncture point, and human body does not have good comfort during massage, can not bring into play the health care of foot massage device fully.
Other has, the patent No. has disclosed another kind of foot massage device for " 200620012794.4 " patent name for the Chinese patent of " foot massage device ", it includes shell and inner mechanical driving, on shell, be provided with guidance panel and place the groove of foot, portion is provided with motor in the enclosure, roller set, motor, connect by the tradition axle between roller set, be connected with pedal on the power transmission shaft, on pedal, be provided with electric heating piece, on shell, be provided with the groove of placing shank, groove surfaces is sealed with the cloth cover, be respectively equipped with air bag in inside grooves cloth cover both sides, air bag connects air pump by pipeline, and it is massaged when having realized foot and shank by the combination with foot massage device and little leg massager.This masseur can only be massaged at people's foot and calf equally, because its highest calf that can only massage the people of massage assembly, therefore, its massage assembly also can't touch people's knee joint and thigh, can't massage people's knee joint and thigh, this is the major defect that present foot massage device exists.Equally, the foot massage device in this patent is not massaged at the acupuncture point yet, and human body does not have good comfort during massage, can not bring into play the health care of foot massage device fully.
Summary of the invention:
The objective of the invention is to provide a kind of and can massage kneed foot massage device at the deficiencies in the prior art, it can be massaged at people's knee joint and thigh by the shank massage machine that is arranged on the shank frame, has solved the problem that present foot massage device can't be massaged people's knee joint and thigh.
Another object of the present invention is to provide the acupuncture-point massaging way of foot massage device at the deficiencies in the prior art, it is by the acupuncture point of different massaging ways and acupuncture point combination of stimulation sole, stimulate sole zone of reflections function, blood circulation promoting, and then make corresponding organ pipe blood capable unimpeded, reach the effect of treatment renal insufficiency, gastric ulcer, dysentery, constipation, eyestrain, headache and head fatigue, high hypotension, heart disease, hepatopathy etc., finally reach the effect that life lengthening, youth are everlasting, have better health care massage function.
For achieving the above object, the present invention is achieved by the following technical solutions:
A kind ofly can massage kneed foot massage device, it comprises foot's frame and shank frame, and foot's frame is provided with foot massager, and the shank frame is installed in foot frame upper end, and the shank frame is provided with the shank massage machine.
The shank frame is fixed on foot frame upper end, and the shank frame is provided with two for people's knee joint or the shank massage district that shank is put into, and two medial surface in shank massage district are respectively arranged with the shank massage machine.
The shank frame is hinged on foot frame upper end, and shank frame rear end is connected with the foot frame, and shank frame front end is a free end; The shank frame is provided with two for people's knee joint or the shank massage district that shank is put into, and two medial surface in shank massage district are respectively arranged with the shank massage machine.
The shank massage machine is the shank massage air bag, and the shank massage air bag is installed in one second cover body.
The medial surface in shank massage district is provided with the second infrared heating cloth, and the second infrared heating cloth is installed in second cover body.
Foot's frame is provided with two foot massage districts that supply people's foot to put into, and two medial surface in foot massage district are respectively arranged with foot massager; Foot massager is a massage air bag, two medial surface in foot massage district are respectively arranged with foot upper back massage air bag, foot middle and upper part massage air bag and foot rear lower massage air bag from top to bottom, foot upper back massage air bag, foot middle and upper part massage air bag and foot rear lower massage air bag are installed in respectively in first cover body, and the bottom in foot massage district is provided with the foot bottom massage air bag; The medial surface in foot massage district is provided with the first infrared heating cloth, and the first infrared heating cloth is installed in first cover body.
A kind of acupuncture-point massaging way of foot massage device, the massaging way of foot massage device is as follows:
Foot massage device shakes massage by the electromagnetic shaker of foot massager to trigeminus reflex district, Lineiting cave, the brain echo area of toe section;
The finger-like depressor of foot massage device by foot massager carries out air pressure to the Yongquan acupoint of sole and refers to massage;
The massage air bag of foot massage device by foot massager carries out air pressure to the calcaneal point reflection district of sleeping peacefully and refers to massage;
Foot massager is massaged in trigeminus reflex district, Lineiting cave, brain echo area, Yongquan acupoint and the point reflection district of sleeping peacefully at one time at least;
Wherein, be provided with foot massager in foot's frame of foot massage device, foot massager comprises the electromagnetic shaker of trigeminus reflex district, Lineiting cave and brain echo area corresponding to the human body sole, corresponding to the finger-like depressor that air pressure drives that passes through of the Yongquan acupoint of human body sole, corresponding to the massage air bag in the point reflection district of sleeping peacefully of human body sole.
Foot massage device also comprises following massaging way: by knee joint and the thigh massage of the shank massage machine in the shank frame to the people, wherein, the foot frame upper end of foot massage device is provided with the shank frame, and the shank massage machine is set in the shank frame.
Foot massage device also comprises following massaging way: by the rotation and the angle of regulating the shank frame, the shank massage machine is massaged the zones of different of knee joint and thigh respectively, is gas-pressure massaging to the massage of knee joint and thigh.
Foot massage device also comprises following massaging way: by the activated carbon electrothermal cloth that can produce far infrared is set in the shank frame, make human body deep layer cell produce appropriateness resonance sympathetic response by activated carbon far infrared that electrothermal cloth produces.
Beneficial effect of the present invention: the present invention includes foot's frame and shank frame, foot's frame is provided with foot massager, and the shank frame is installed in foot frame upper end, and the shank frame is provided with the shank massage machine; The present invention can massage at people's knee joint and thigh by shank frame and the shank massage machine that is arranged on the shank frame, increase the massage functions of masseur, the invention solves the problem that present foot massage device can't be massaged people's knee joint and thigh.
Beneficial effect of the present invention: the present invention shakes massage by the foot massager in the foot's frame that is arranged on foot massage device to trigeminus reflex district, Lineiting cave, the brain echo area of toe section, the Yongquan acupoint of sole is carried out air pressure refer to massage, the calcaneal point reflection district of sleeping peacefully is carried out air pressure refer to massage, it is by the acupuncture point of different massaging ways and acupuncture point combination of stimulation foot, stimulate sole zone of reflections function, blood circulation promoting, and then make corresponding organ pipe blood capable unimpeded, have better health care massage function.
Description of drawings:

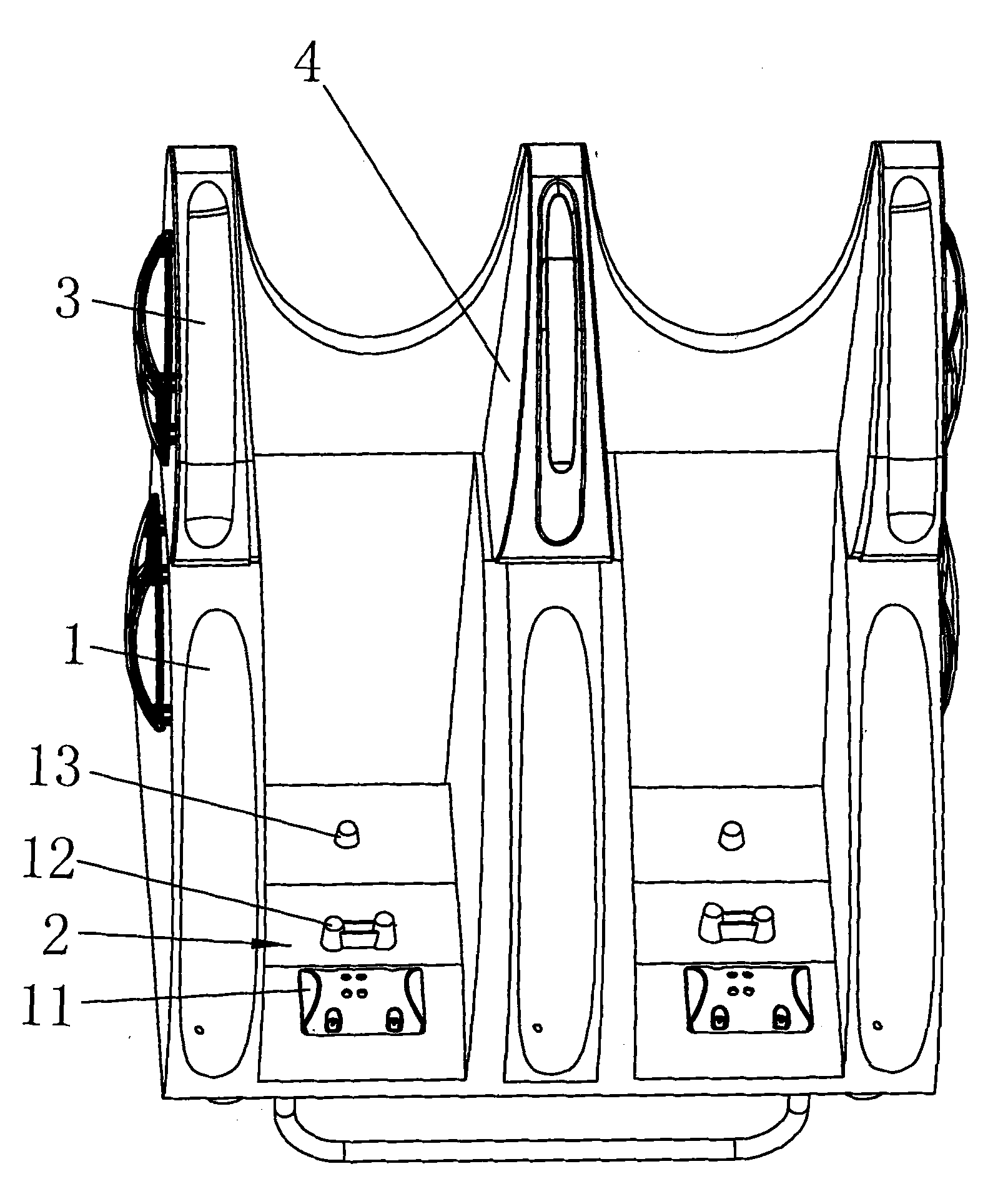

Accompanying drawing 1 is the structural representation of foot massage device of the present invention;
Accompanying drawing 3 is the structural representation after the shank frame of accompanying drawing 2 rotates an angle;
Accompanying drawing 4 is the decomposing schematic representation of the shank frame of accompanying drawing 2.
The specific embodiment:
The acupuncture-point massaging way of foot massage device, the massaging way of foot massage device is as follows:
Foot massage device shakes massage by trigeminus reflex district, Lineiting cave, the brain echo area of 11 pairs of toe section of electromagnetic shaker of foot massager 2; Foot massage device mainly stimulates nervi trigeminus, Lineiting cave, brain echo area, hypophysis, brain, eye, ear, neck, cerebellum is unfolded loosen.
The Yongquan acupoint of foot massage device by 12 pairs of soles of finger-like depressor of foot massager 2 carries out air pressure and refers to massage; The Yongquan acupoint of sole is carried out air pressure refer to massage main stimulation Yongquan acupoint, promote the blood circulation of liver, kidney, the heart.
Wherein, foot massage device is seen accompanying drawing 1, be provided with foot massager 2 in foot's frame 1 of foot massage device, foot massager 2 comprises the electromagnetic shaker 11 of trigeminus reflex district, Lineiting cave and brain echo area corresponding to the human body sole, corresponding to the finger-like depressor 12 that air pressure drives that passes through of the Yongquan acupoint of human body sole, corresponding to the massage air bag 13 in the point reflection district of sleeping peacefully of human body sole.
The invention provides a kind of massaging way that people foot is massaged, it is by the acupuncture point of different massaging ways and acupuncture point combination of stimulation sole, stimulate sole zone of reflections function, blood circulation promoting, and then make corresponding organ pipe blood capable unimpeded, reach the effect of treatment renal insufficiency, gastric ulcer, dysentery, constipation, eyestrain, headache and head fatigue, high hypotension, heart disease, hepatopathy etc., finally reach the effect that life lengthening, youth are everlasting, have better health care massage function.
Foot massage device of the present invention also comprises following massaging way: by knee joint and the thigh massage of the shank massage machine in the shank frame 3 to the people, wherein, foot's frame 1 upper end of foot massage device is provided with shank frame 3, and shank massage machine 4 is set in the shank frame 3.
In addition, can also shank massage machine 4 be massaged respectively to the zones of different of knee joint and thigh by rotation and the angle of regulating shank frame 3, be gas-pressure massaging to the massage of knee joint and thigh, removes human-body fatigue and slender U.S. lower limb by gas-pressure massaging.
At last, can also make human body deep layer cell produce appropriateness resonance sympathetic response, eliminate the tired hardship of human body by far infrared by being arranged on shank frame 3 interior activated carbon far infrareies that electrothermal cloth produces, warm body collateral dredging, accelerate blood circulation, activation histiocyte, enhance metabolism, improve body immunity; Wherein, be provided with the activated carbon electrothermal cloth that can produce far infrared in the shank frame 3.
Can massage kneed foot massage device, see accompanying drawing 1 to 4, it comprises foot's frame 1 and shank frame 3, and foot's frame 1 is provided with foot massager 2, and shank frame 3 is installed in foot's frame 1 upper end, and shank frame 3 is provided with shank massage machine 4.
Described foot frame 1 is provided with two foot massage districts 7 that supply people's foot to put into, and two medial surface in foot massage district 7 are respectively arranged with foot massager 2.Foot massager 2 is a massage air bag, massage air bag can be massaged in the mode of pushing, pushing or vibrating, two medial surface in foot massage district 7 are respectively arranged with foot upper back massage air bag, foot middle and upper part massage air bag and foot rear lower massage air bag from top to bottom, and foot upper back massage air bag, foot middle and upper part massage air bag and foot rear lower massage air bag are installed in respectively in first cover body 8.Foot upper back massage air bag, foot middle and upper part massage air bag and foot rear lower massage air bag can be massaged foot upper back, foot middle and upper part and foot rear lower respectively.
The bottom in described foot massage district 7 also is provided with the foot bottom massage machine.The foot bottom massage machine is the foot bottom massage air bag, and the foot bottom massage air bag of the bottom by being arranged on foot massage district 7 can be massaged people's sole, and foot massage district 7 can carry out omnibearing massage to people's foot and calf.
The medial surface in described foot massage district 7 is provided with the first infrared heating cloth 10, the first infrared heating cloth 10 is the activated carbon electrothermal cloth, the activated carbon electrothermal cloth can produce far infrared, the far infrared that the activated carbon electrothermal cloth passes through to be produced makes human body deep layer cell produce appropriateness resonance sympathetic response, eliminates the tired hardship of human body by far infrared, warm body collateral dredging, the accelerate blood circulation, the activation histiocyte enhances metabolism, and improves body immunity.The first infrared heating cloth 10 is installed in first cover body 8.The first infrared heating cloth 10 heats by infrared ray, and 10 couples of people's of the first infrared heating cloth foot and calf heat with warming, and blood circulation promoting strengthens massage effect and health care massage function.
Described shank frame 3 is provided with two for people's knee joint or the shank massage district 5 that shank is put into, and two medial surface in shank massage district 5 are respectively arranged with shank massage machine 4.
Described shank massage machine 4 is the shank massage air bag, and the shank massage air bag is installed in one second cover body 6.
The medial surface in described shank massage district 5 is provided with the second infrared heating cloth 9, the second infrared heating cloth 9 is the activated carbon electrothermal cloth, the activated carbon electrothermal cloth can produce far infrared, the far infrared that the activated carbon electrothermal cloth passes through to be produced makes human body deep layer cell produce appropriateness resonance sympathetic response, eliminates the tired hardship of human body by far infrared, warm body collateral dredging, the accelerate blood circulation, the activation histiocyte enhances metabolism, and improves body immunity.The second infrared heating cloth 9 is installed in second cover body 6.The second infrared heating cloth 9 heats by infrared ray, the second infrared heating cloth 9 at the same time or separately to people's knee joint, shank heat, warming, blood circulation promoting strengthens massage effect and health care massage function.
Described shank frame 3 is hinged on foot's frame 1 upper end, and shank frame 3 rear ends are connected with foot frame 1, and shank frame 3 front ends are free end.Shank frame 3 can rotate around its rear end, therefore, can regulate shank frame 3, shank frame 3 is adjusted to optimal angle, shank frame 3 can be massaged people's knee joint and thigh at the same time or separately, increase the massage functions of masseur, it has solved the problem that present masseur can't be massaged people's knee joint and thigh.
Certainly, described shank frame 3 can also be fixed on foot's frame 1 upper end.It can massage people's shank equally.
Foot massage device of the present invention is the vapour-pressure type masseur that can massage human acupoint, meridians and muscle, because stimulate sole zone of reflections function with modes such as " press, rub, by, rub, strike ", but blood circulation promoting, and then make corresponding organ pipe blood capable unimpeded, reach the effect of treatment renal insufficiency, gastric ulcer, dysentery, constipation, eyestrain, headache and head fatigue, high hypotension, heart disease, hepatopathy etc.Finally reach life lengthening, the effect that the youth is everlasting.
In addition, at this moment epoch of civilization still, people thirst for especially slender U.S. lower limb and pursue, and the present invention just is being based on above and the classical product developed at 2.
The above only is preferred embodiment of the present invention, so all equivalences of doing according to the described structure of patent claim of the present invention, feature and principle change or modify, is included in the patent claim of the present invention.
Claims (10)
1, a kind ofly can massage kneed foot massage device, it comprises foot's frame (1), foot's frame (1) is provided with foot massager (2), it is characterized in that: it also comprises shank frame (3), shank frame (3) is installed in foot's frame (1) upper end, and shank frame (3) is provided with shank massage machine (4).
2, according to claim 1ly a kind ofly can massage kneed foot massage device, it is characterized in that: shank frame (3) is fixed on foot's frame (1) upper end, shank frame (3) is provided with two for people's knee joint or the shank massage district (5) that shank is put into, and two medial surface in shank massage district (5) are respectively arranged with shank massage machine (4).
3, according to claim 2ly a kind ofly can massage kneed foot massage device, it is characterized in that: shank frame (3) is hinged on foot's frame (1) upper end, and shank frame (3) rear end is connected with foot's frame (1), and shank frame (3) front end is a free end; Shank frame (3) is provided with two for people's knee joint or the shank massage district (5) that shank is put into, and two medial surface in shank massage district (5) are respectively arranged with shank massage machine (4).
4, each describedly a kind ofly can massage kneed foot massage device according to claim 1 to 3, and it is characterized in that: shank massage machine (4) is the shank massage air bag, and the shank massage air bag is installed in one second cover body (6).
5, according to claim 4ly a kind ofly can massage kneed foot massage device, it is characterized in that: the medial surface in shank massage district (5) is provided with the second infrared heating cloth (9), and the second infrared heating cloth (9) is installed in second cover body (6).
6, according to claim 5ly a kind ofly can massage kneed foot massage device, it is characterized in that: foot's frame (1) is provided with two foot massage districts (7) that supply people's foot to put into, and two medial surface in foot massage district (7) are respectively arranged with foot massager (2); Foot massager (2) is a massage air bag, two medial surface in foot massage district (7) are respectively arranged with foot upper back massage air bag, foot middle and upper part massage air bag and foot rear lower massage air bag from top to bottom, foot upper back massage air bag, foot middle and upper part massage air bag and foot rear lower massage air bag are installed in respectively in first cover body (8), and the bottom in foot massage district (7) is provided with the foot bottom massage air bag; The medial surface in foot massage district (7) is provided with the first infrared heating cloth (10), and the first infrared heating cloth (10) is installed in first cover body (8).
7, a kind of acupuncture-point massaging way of foot massage device is characterized in that: the massaging way of foot massage device is as follows:
Foot massage device shakes massage by the electromagnetic shaker (11) of foot massager (2) to trigeminus reflex district, Lineiting cave, the brain echo area of toe section;
The finger-like depressor (12) of foot massage device by foot massager (2) carries out air pressure to the Yongquan acupoint of sole and refers to massage;
The massage air bag (13) of foot massage device by foot massager (2) carries out air pressure to the calcaneal point reflection district of sleeping peacefully and refers to massage;
Foot massager (2) is massaged in trigeminus reflex district, Lineiting cave, brain echo area, Yongquan acupoint and the point reflection district of sleeping peacefully at one time at least;
Wherein, be provided with foot massager (2) in foot's frame (1) of described foot massage device, foot massager (2) comprises the electromagnetic shaker (11) of trigeminus reflex district, Lineiting cave and brain echo area corresponding to the human body sole, corresponding to the finger-like depressor (12) that air pressure drives that passes through of the Yongquan acupoint of human body sole, corresponding to the massage air bag (13) in the point reflection district of sleeping peacefully of human body sole.
8, the acupuncture-point massaging way of a kind of foot massage device according to claim 7, it is characterized in that: foot massage device also comprises following massaging way: by knee joint and the thigh massage of the shank massage machine in the shank frame (3) to the people, wherein, foot's frame (1) upper end of foot massage device is provided with shank frame (3), and shank massage machine (4) is set in the shank frame (3).
9, the acupuncture-point massaging way of a kind of foot massage device according to claim 8, it is characterized in that: foot massage device also comprises following massaging way: by the angle of rotation and adjusting shank frame (3), shank massage machine (4) is massaged the zones of different of knee joint and thigh respectively, is gas-pressure massaging to the massage of knee joint and thigh.
10, according to the acupuncture-point massaging way of each described a kind of foot massage device of claim 7 to 9, it is characterized in that: foot massage device also comprises following massaging way: can produce the activated carbon electrothermal cloth of far infrared by setting in shank frame (3), make human body deep layer cell produce appropriateness resonance sympathetic response by activated carbon far infrared that electrothermal cloth produces.
