Abstract
本发明公开了一种浅水沉积物柱状样采样装置，包括取样管组件、加力组件和设置在取样管组件和加力组件之间的连接头组件，所述的取样管组件包括采样管；所述的连接头组件包括由螺栓连接的下法兰和连接件、设置在下法兰和连接件之间的密封件、连接在连接件上的连接头和设置在连接头和连接件内的单向阀；所述的加力组件包括连接在连接头上的多个中空连接杆，连接杆的顶部设有通气丝堵；所述的采样管穿过下法兰和密封圈，伸入连接件内，通过螺栓固定连接在连接组件下部。采用本发明能够保持沉积物柱状样品的原始状态，采样效果好，并且本发明结构紧凑、易于携带、便于操作、能够适应各种野外采样条件。
The invention discloses a shallow-water sediment column sample sampling device, which comprises a sampling tube assembly, a force assembly and a connector assembly arranged between the sampling tube assembly and the force assembly, the sampling tube assembly includes a sampling tube; The connector assembly described above includes a lower flange and a connector connected by bolts, a seal arranged between the lower flange and the connector, a connector connected to the connector, and a one-way valve arranged in the connector and the connector. valve; the booster assembly includes a plurality of hollow connecting rods connected to the connecting head, and the top of the connecting rod is provided with a ventilation plug; the sampling pipe passes through the lower flange and the sealing ring and extends into the connecting piece , fixedly connected to the lower part of the connection assembly by bolts. Adopting the invention can keep the original state of sediment columnar samples, and the sampling effect is good, and the invention is compact in structure, easy to carry, easy to operate, and can adapt to various field sampling conditions.
Description
技术领域technical field
本发明涉及一种采样装置，具体涉及一种用于水环境科学研究、保护的浅水湖泊、河流中沉积物柱状样采样装置。The invention relates to a sampling device, in particular to a sampling device for sediment columnar samples in shallow lakes and rivers used for scientific research and protection of water environment.
背景技术Background technique
湖泊和河流的沉积物监测和质量评价是水环境科学研究和保护工作的重要内容，高质量的沉积物采样技术是工作的前提和基础。传统的掘式采样器由于封闭性能差，沉积物在采样过程中容易流失，样品的代表性较差，无法采集到原状的沉积物柱状样品。在浅水湖泊和河流中，依靠自重下切的柱状采样器的采样深度受下冲力的限制，只能采集到有限深度的沉积物样品，由于该类采样器操作复杂，不适用于大规模的采样活动。Sediment monitoring and quality assessment of lakes and rivers is an important part of scientific research and protection of water environment, and high-quality sediment sampling technology is the premise and basis of the work. Due to the poor sealing performance of the traditional digging sampler, the sediment is easily lost during the sampling process, and the representativeness of the sample is poor, so it is impossible to collect the original sediment columnar sample. In shallow lakes and rivers, the sampling depth of the columnar sampler that cuts down by its own weight is limited by the downward force, and can only collect sediment samples of a limited depth. Due to the complicated operation of this type of sampler, it is not suitable for large-scale sampling activities .
发明内容Contents of the invention
本发明的目的是针对上述现有技术的缺陷，提供了一种结构紧凑、易于携带、便于操作的、适应各种野外采样条件，并且采样效果好的浅水沉积物柱状样采样装置。The object of the present invention is to aim at the defects of the above-mentioned prior art, and provide a shallow-water sediment column sample sampling device which is compact in structure, easy to carry, easy to operate, adaptable to various field sampling conditions, and has good sampling effect.
为了实现上述目的本发明采取的技术方案是：一种浅水沉积物柱状样采样装置，包括取样管组件、加力组件和设置在取样管组件和加力组件之间的连接头组件，所述的取样管组件包括采样管；所述的连接头组件包括由螺栓连接的下法兰和连接件、设置在下法兰和连接件之间的密封件、连接在连接件上的连接头和设置在连接头和连接件内的单向阀；所述的加力组件包括连接在连接头上的多个中空连接杆，连接杆的顶部设有通气丝堵；所述的采样管穿过下法兰和密封圈，伸入连接件内，通过螺栓固定连接在连接组件下部。In order to achieve the above object, the technical solution adopted by the present invention is: a shallow water sediment columnar sample sampling device, including a sampling pipe assembly, a force assembly and a connector assembly arranged between the sampling pipe assembly and the force assembly, the described The sampling tube assembly includes a sampling tube; the connector assembly includes a lower flange connected by bolts and a connecting piece, a seal arranged between the lower flange and the connecting piece, a connecting head connected to the connecting piece, and a connecting piece arranged on the connecting piece The one-way valve in the head and the connecting piece; the described force assembly includes a plurality of hollow connecting rods connected to the connecting head, and the top of the connecting rod is provided with a ventilation plug; the described sampling pipe passes through the lower flange and The sealing ring extends into the connecting piece and is fixedly connected to the lower part of the connecting assembly by bolts.
所述的采样管为有机玻璃管，其底部通过螺栓固定连接有不锈钢保护套。The sampling tube is a plexiglass tube, the bottom of which is fixedly connected with a stainless steel protective sleeve by bolts.
所述的连接杆上部两侧设有加力手柄，所述的多个连接杆通过螺纹连接。The two sides of the upper part of the connecting rod are provided with a booster handle, and the plurality of connecting rods are connected by threads.
所述的密封件为橡胶密封圈。The sealing element is a rubber sealing ring.
所述的连接件为一端敞口的圆柱体，另一端设有通过单向阀密封的通口，其上还设有螺栓孔。The connecting piece is a cylinder with one end open, and the other end is provided with a port sealed by a one-way valve, and a bolt hole is also provided on it.
所述的连接头焊接在连接件的上部，所述的连接头通过螺纹和连接杆连接。The connecting head is welded on the upper part of the connecting piece, and the connecting head is connected with a connecting rod through threads.
本发明在采样过程中，进入采样管的水通过单向阀排出，保持采样管水道通畅，不会对沉积物施加额外压力，保证采样过程中不对沉积物产生明显的侵蚀和扰动，保持沉积物柱状样品的原始状态，采样效果好，并且本发明结构紧凑、易于携带、便于操作、能够适应各种野外采样条件。During the sampling process of the present invention, the water entering the sampling pipe is discharged through the one-way valve, which keeps the water channel of the sampling pipe unobstructed, does not exert additional pressure on the sediment, ensures that no obvious erosion and disturbance will be caused to the sediment during the sampling process, and keeps the sediment The original state of the columnar sample has good sampling effect, and the invention has a compact structure, is easy to carry, is easy to operate, and can adapt to various field sampling conditions.
附图说明Description of drawings

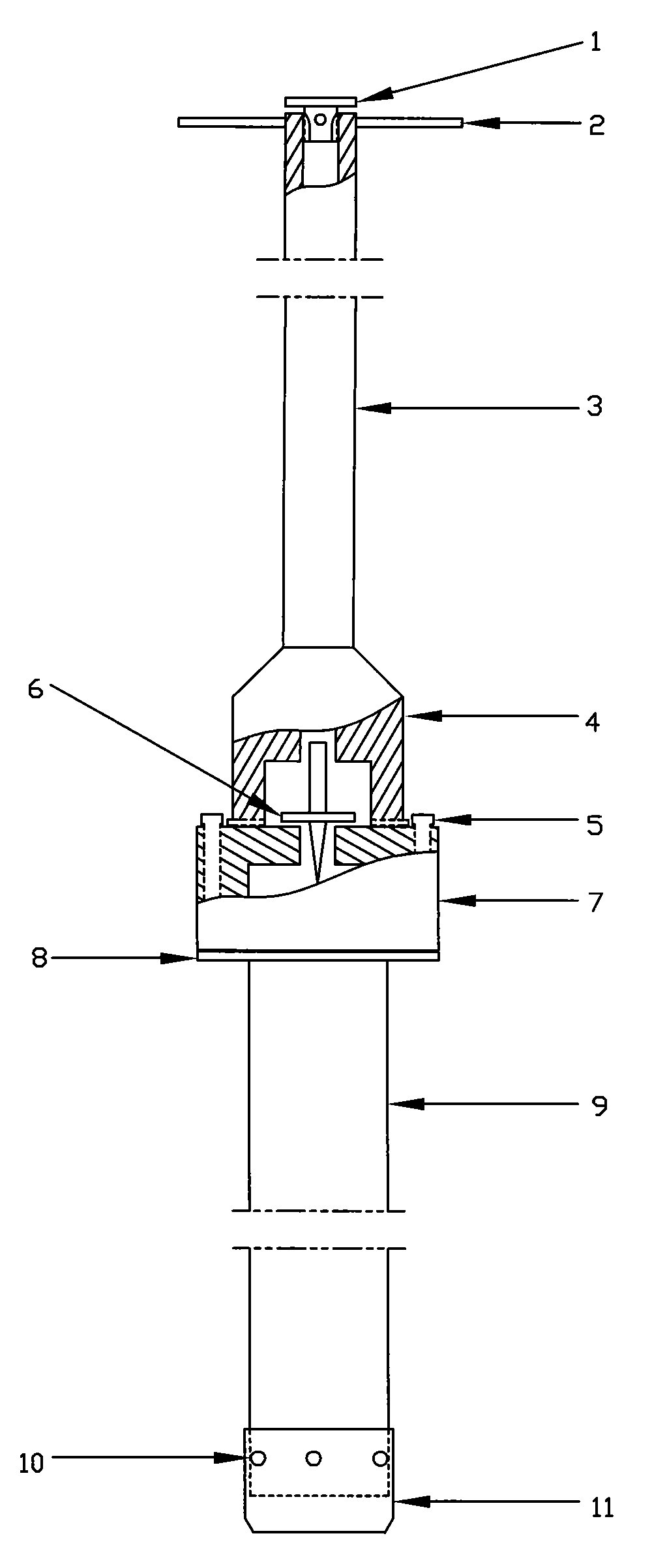

图1是本发明的结构示意图。Fig. 1 is a structural schematic diagram of the present invention.
图中：1压力调节丝堵，2加力手柄，3连接杆，4连接头，5连接螺栓，6单向阀，7连接件，8下法兰，9采样管，10固定螺栓，11不锈钢保护套。In the figure: 1 pressure regulating plug, 2 afterburner handle, 3 connecting rod, 4 connecting head, 5 connecting bolt, 6 one-way valve, 7 connecting piece, 8 lower flange, 9 sampling pipe, 10 fixing bolt, 11 stainless steel protective case.
具体实施方式Detailed ways
下面结合附图和具体实施例对本发明作进一步说明，但不作为对本发明的限定。The present invention will be further described below in conjunction with the accompanying drawings and specific embodiments, but not as a limitation of the present invention.
参见图1，一种浅水沉积物采样装置，由取样管组件、加力组件和设置在取样管组件和加力组件之间的连接头组件组成，取样管组件由有机玻璃采样管9、不锈钢保护套11及固定螺栓10组成；连接头组件由连接件7、下法兰8、橡胶O型圈密封件、单向阀6、连接螺栓5和连接头组成；加力组件由连接杆3、加力手柄2、压力调节丝堵1组成。Referring to Fig. 1, a shallow-water sediment sampling device is composed of a sampling tube assembly, a booster assembly and a connector assembly arranged between the sampling tube assembly and the booster assembly, and the sampling tube assembly is protected by a plexiglass sampling tube 9 and stainless steel The sleeve 11 and the fixing bolt 10 are composed; the connecting head assembly is composed of the connecting piece 7, the lower flange 8, the rubber O-ring seal, the one-way valve 6, the connecting bolt 5 and the connecting head; Force handle 2, pressure regulating plug 1 are formed.
采样管9为标准配置有机玻璃管，还可以使用PVC管或选用金属管，有机玻璃管方便对采集样品的观察，而且耐用，有机玻璃管底部还设有不锈钢保护套11，不锈钢保护套11用螺栓10固定在有机玻璃管底部，以保护有机玻璃管在采样过程中不受损伤。Sampling tube 9 is a standard plexiglass tube, and PVC tube or metal tube can also be used. The plexiglass tube is convenient for observing the collected samples, and it is durable. The bottom of the plexiglass tube is also provided with a stainless steel protective cover 11, which is used for the stainless steel protective cover 11. The bolt 10 is fixed on the bottom of the plexiglass tube to protect the plexiglass tube from damage during the sampling process.
连接头组件的连接件7和下法兰8由螺栓5连接，连接件7和下法兰8之间设置橡胶O型密封圈，采样管9上部穿过下法兰和密封圈，伸入连接件7内，通过螺栓5紧固压缩橡胶O型密封圈，密封件还可选用塑胶材质的，密封圈变形后卡紧采样管9，使采样管9固定连接在连接组件下部，松开螺栓5后，采样管9可以方便取出，连接件7上放置有单向阀6，通过单向阀6可将连接件7上部密封，连接头4焊接在连接件7的上部，连接头7上部设有螺纹，通过螺纹和连接杆3连接，连接杆3为中空的铝合金管，连接杆3上设有螺纹，通过螺纹可任意连接成不同的的长度，通过调节连接杆长度实现对不同水深的采样需要；连接在最上面的连接杆3上部两侧焊接有加力手柄2，连接杆3顶端设有压力调节丝堵1，加力手柄2方便采样过程中提供采样管9的下切力，连接杆3顶端设置压力调节丝堵1，以控制采样管内的水柱压力。The connecting piece 7 and the lower flange 8 of the connecting head assembly are connected by bolts 5, and a rubber O-ring is set between the connecting piece 7 and the lower flange 8, and the upper part of the sampling pipe 9 passes through the lower flange and the sealing ring, and extends into the connection In the part 7, the compressed rubber O-ring is fastened by the bolt 5. The seal can also be made of plastic material. After the sealing ring is deformed, the sampling tube 9 is clamped, so that the sampling tube 9 is fixedly connected to the lower part of the connection assembly, and the bolt 5 is loosened. Finally, the sampling tube 9 can be easily taken out, and a one-way valve 6 is placed on the connecting piece 7, the upper part of the connecting piece 7 can be sealed by the one-way valve 6, the connecting head 4 is welded on the upper part of the connecting piece 7, and the connecting head 7 is provided with a The thread is connected with the connecting rod 3 through the thread. The connecting rod 3 is a hollow aluminum alloy tube. The connecting rod 3 is provided with a thread, which can be connected into different lengths through the thread, and the sampling of different water depths can be realized by adjusting the length of the connecting rod. Required; connected to the uppermost connecting rod 3, the two sides of the upper part are welded with a booster handle 2, and the top of the connecting rod 3 is provided with a pressure regulating screw plug 1, and the booster handle 2 is convenient to provide the cutting force of the sampling tube 9 during the sampling process. The top of the rod 3 is provided with a pressure regulating plug 1 to control the pressure of the water column in the sampling tube.
本发明的工作原理和操作方法如下：Working principle and operation method of the present invention are as follows:
本发明按照上述的连接关系组装好后，依靠人力通过加力组件将采样管插入水系沉积物中。在采样过程中，进入采样管9的水体通过单向阀6排入连接杆3中，从连接杆3的顶部排出，设置单向阀6保持采样管有一个通畅的水道，不对沉积物施加额外压力，以保证采样过程中不对沉积物产生侵蚀和扰动，保持沉积物柱状样品的原始状态。采样管9插入规定采样深度后，此时不再向下施加压力，单向阀6依靠重力自动回落，密封采样管9上部，同时拧紧压力调节丝堵1，增加采样装置的密闭性。起拔采样装置垂直完成采样，由于水压的作用在上提过程中可以保证沉积物柱不出现滑落现象。采样器出水后，松开压力调节丝堵1和松开连接螺栓5，取出采样管9，获得原状的沉积物柱状样。After the present invention is assembled according to the above-mentioned connection relationship, the sampling pipe is inserted into the water system sediment by manpower through the booster assembly. During the sampling process, the water entering the sampling pipe 9 is discharged into the connecting rod 3 through the one-way valve 6, and discharged from the top of the connecting rod 3. The one-way valve 6 is set to keep the sampling pipe with an unobstructed water channel and does not impose additional pressure on the sediment. Pressure to ensure that the sediment will not be eroded and disturbed during the sampling process, and the original state of the sediment columnar sample will be maintained. After the sampling tube 9 is inserted into the specified sampling depth, no downward pressure is applied at this time, and the one-way valve 6 automatically falls back by gravity to seal the upper part of the sampling tube 9. At the same time, tighten the pressure regulating plug 1 to increase the airtightness of the sampling device. The lifting sampling device completes sampling vertically, and due to the effect of water pressure, it can ensure that the sediment column does not slip during the lifting process. After the sampler comes out of the water, loosen the pressure regulating plug 1 and loosen the connecting bolt 5, take out the sampling pipe 9, and obtain the original sediment columnar sample.
本发明是一种结构紧凑、轻便易携带、操作简单、取样效果好的浅水湖泊和河流沉积物采样装置，可以用于各类水深在6～8米内的浅水湖泊、河流和沼泽采集原状的沉积物柱状样品。The invention is a shallow lake and river sediment sampling device with compact structure, light and easy to carry, simple operation and good sampling effect. columnar samples.
以上所述的实施例，只是本发明较优选的具体实施方式的一种，本领域的技术人员在本发明技术方案范围内进行的通常变化和替换都应包含在本发明的保护范围内。The embodiments described above are only one of the more preferred specific implementations of the present invention, and the usual changes and replacements performed by those skilled in the art within the scope of the technical solutions of the present invention should be included in the protection scope of the present invention.
