Abstract
本发明公开了一种慢炖锅的组合结构，包括座本体，该座本体上配装有内胆体，内胆体内腔嵌套有工作锅组件，座本体包括有相配装的下壳体和上壳体；下壳体的上边沿制有定位圈，上壳体的下边沿制有能与定位圈相配装的套边环；下壳体两侧沿制有竖直边，竖直边上开设有第一通孔体；下壳体的内腔两侧制有凸起的条板，条板上制有第二通孔体，并且相邻的第二通孔体与第一通孔体之间配装有座体手柄；配置多个锅体，可适合不同食物的同时加工，作业效率高；设置不同锅体的温度控制，用户可根据需要选择一个或多个锅体的分别工作，操作灵活、便捷；整体式配装结构，全封闭的上盖体结构防止锅内溢水流入座本体内，提高了整锅的清洁性。
The invention discloses a combination structure of a slow cooker, which comprises a seat body, the seat body is equipped with an inner tank body, and a working pot assembly is nested in the inner cavity of the inner tank body, and the seat body includes a matched lower shell and The upper shell; the upper edge of the lower shell is formed with a positioning ring, and the lower edge of the upper shell is formed with a sleeve ring that can be matched with the positioning ring; the two sides of the lower shell are formed with vertical edges, and the vertical edges are A first through-hole body is provided; both sides of the inner cavity of the lower shell are formed with protruding strips, and a second through-hole body is formed on the strip plate, and the adjacent second through-hole body and the first through-hole body There is a seat handle between them; multiple pots are equipped, which is suitable for simultaneous processing of different foods, and the work efficiency is high; the temperature control of different pots is set, and the user can choose one or more pots to work separately according to needs. The operation is flexible and convenient; the integral assembly structure and the fully enclosed upper cover structure prevent the overflow water in the pot from flowing into the seat body, which improves the cleanliness of the whole pot.
Description
Technical field
The present invention relates to the technical field of electric food warmer, particularly a kind of combining structure of slow cooker.
Background technology
What generally use in people's life is the unit pan, it is lower that the unit pan causes effect because of its culinary art kind is single, generally be applicable in the family and use, and present constantly developing along with social catering trade, it is desired to be quick, jumbo service efficiency, so the unit pan can not adapt to the kitchen range that a kind of multi-pot range is also arranged in the present society of use in the catering trade, be that 98202860.1 Chinese utility model patent " multi-pot range electrical heating combination assorted pot " (notification number is CN2323707Y) is exactly this type of design as the patent No.; It is by main body framework, external form foreskin, heater, temperature controller, bottom thermal insulation layer, pan are formed, main framing is separated into the kitchen range district more than four, crossover sites in the main framing bottom has notch, place a plug connector box between groove, each kitchen range district center place's fixed heater and temperature controller, the gauge tap of each temperature controller are placed on the periphery ring of each kitchen range district main body framework, and pan is metal pan, iron plate, porcelain altar, steaming tray, the complete vessel of earth pot, though this type of design has a pot body multidigit function, but the branch control electric heating system in each kitchen range district is set, in use, complex operation; Its main framing complex structure is difficult for carrying out regular maintenance and maintenance.
Also there is a kind of integrated multi-level pan in society for another example, heating board and heater strip that it adopts directly transmit, because the last plane of heating board directly exposes under the bottom of a pan, this plane is vulnerable to the influence of the bottom of a pan face humidity, and makes the temperature difference of heating board, can promote the heating disequilibrium of pot like this, promptly caused the existence of monolateral heating phenomena, this at first can reduce the service life of heating board, secondly can influence the firing rate of pot, causes service efficiency low; So also there is more weak point in this kind pot.
Summary of the invention
Technical problem to be solved by this invention is the present situation at prior art, a kind of simple operation is provided, uses cleaning, the combining structure of flexible configuration and slow cooker simple in structure.
The present invention solves the problems of the technologies described above the technical scheme that is adopted: a kind of combining structure of slow cooker, comprise seat body, be fitted with inner lining on this seat body, the inner lining inner chamber is nested with work pot assembly, and seat body includes equipped mutually lower house and upper shell; The upper edge of lower house is shaped on centring ring, the lower edge of upper shell be shaped on can be equipped mutually with centring ring the cover side ring; The lower house both sides offer the first through hole body along being shaped on vertical edge on the vertical edge; The inner chamber both sides of lower house are shaped on the batten of projection, are shaped on the second through hole body on the batten, and are fitted with the pedestal handle between the second adjacent through hole body and the first through hole body.
The measure of taking also comprises:
Above-mentioned upper shell end face is shaped on the suit ring of at least two projectioies; Correspondingly, above-mentioned inner lining also is at least two, and this inner lining matches with the suit ring.
The upper oral part of above-mentioned inner lining is shaped on the flange edge of annular, and the interior edge on this flange edge is located at outside the suit ring.
Bottom, the outer border of above-mentioned inner lining is shaped on straight ring, is covered with at least one heating circle on this straight ring.
Above-mentioned heating circle is a heating tape; Above-mentioned straight ring and flange along between be shaped on the conical ring body of profile continuity mutually, this conical ring body all is embedded in lower housing cavity with straight ring.
Above-mentioned suit ring is two that are arranged in juxtaposition, and correspondingly, above-mentioned inner lining also is two, and each inner lining is all corresponding one by one mutually with a suit ring.
Above-mentioned lower house one sidewall is furnished with the switch body that two energy and external power source are electrically connected, and each switch body all with the corresponding connection of heating circle.
The external part of above-mentioned switch body is fitted with the action button that can control this switch body operation; Above-mentioned lower house one side also is shaped on the scale body of annular, and this scale body matches with the switch turn-knob.
Above-mentioned work pot assembly is two, and matches with inner lining respectively; Work pot assembly includes a pot body, is covered with the pot cover body on the pot body, and pot cover body top is bolted with pot cover handle.
Pad is provided with intermediate washer between above-mentioned pot cover handle and the pot cover body; Pot body upper edge is shaped on and can develops the ring limit that contacts along the top with flange.
Compared with prior art, be fitted with inner lining on the seat body of the present invention, the inner lining inner chamber is nested with work pot assembly, and seat body includes equipped mutually lower house and upper shell; The upper edge of lower house is shaped on centring ring, the lower edge of upper shell be shaped on can be equipped mutually with centring ring the cover side ring; The lower house both sides offer the first through hole body along being shaped on vertical edge on the vertical edge; The inner chamber both sides of lower house are shaped on the batten of projection, are shaped on the second through hole body on the batten, and are fitted with the pedestal handle between the second adjacent through hole body and the first through hole body.The invention has the advantages that: dispose a plurality of pots of bodies, processing when can be fit to different food, operating efficiency height; The temperature control of different pot bodies is set, and the user can select working respectively of one or more pots of bodies, flexible operation, convenient as required; Monoblock type is equipped with structure, and totally enclosed upper cover body structure prevents that pot interior spilling water from flowing in the seat body, improved the spatter property of whole pot; The inner lining of active mounting structure is installed simply, safeguards quick.
Description of drawings
Fig. 1 is the stereoscopic three-dimensional schematic diagram of the embodiment of the invention;
Fig. 2 is the schematic diagram that keeps flat of Fig. 1;

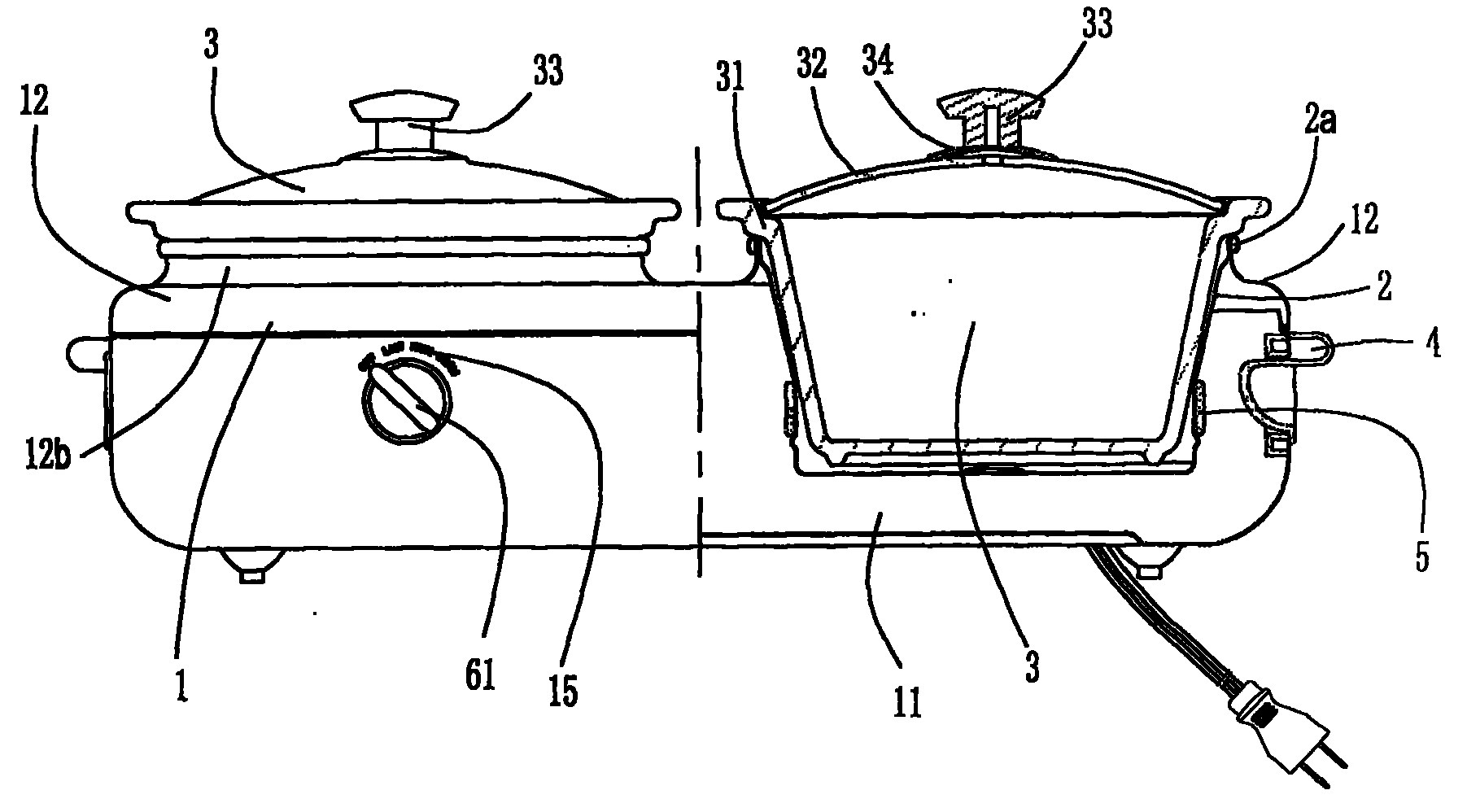

Fig. 3 be Fig. 2 vertically partly cut open schematic diagram;
Fig. 4 is a horizontal half section schematic diagram among Fig. 2;
Fig. 5 is that the decomposition of Fig. 1 splits schematic diagram.
The specific embodiment
Embodiment describes in further detail the present invention below in conjunction with accompanying drawing.
To embodiment shown in Figure 5, figure grade illustrates: seat body 1, lower house 11, centring ring 11a, vertical edge 11b as Fig. 1, batten 11c, upper shell 12, cover side ring 12a, suit ring 12b, the first through hole body 13, the second through hole body 14, scale body 15, inner lining 2, flange is along 2a, straight ring 2b, conical ring body 2c, work pot assembly 3, pot body 31, ring limit 31a, pot cover body 32, pot cover handle 33, intermediate washer 34, pedestal handle 4, heating circle 5, switch body 6, action button 61.
The embodiment of the invention, a kind of combining structure of slow cooker comprises seat body 1, is fitted with inner lining 2 on this seat body 1, and inner lining 2 inner chambers are nested with work pot assembly 3, and seat body 1 includes equipped mutually lower house 11 and upper shell 12; The upper edge of lower house 11 is shaped on centring ring 11a, the lower edge of upper shell 12 be shaped on can be equipped mutually with centring ring 11a cover side ring 12a; Lower house 11 both sides offer the first through hole body 13 along being shaped on vertical edge 11b on the vertical edge 11b; The inner chamber both sides of lower house 11 are shaped on the batten 11c of projection, are shaped on the second through hole body 14 on the batten 11c, and are fitted with pedestal handle 4 between the second adjacent through hole body 14 and the first through hole body 13.
Present embodiment is achieved in that upper shell 12 end faces are shaped on the suit ring 12b of at least two projectioies; Correspondingly, inner lining 2 also is at least two, and this inner lining 2 matches with suit ring 12b.The upper oral part of inner lining 2 is shaped on the flange of annular along 2a, and this flange is located at outside the suit ring 12b along the interior edge of 2a.Bottom, inner lining 2 outer border is shaped on straight ring 2b, is covered with at least one heating circle 5 on the straight ring 2b.
Heating circle 5 is a heating tape; Straight ring 2b and flange be along being shaped on the conical ring body 2c of profile continuity mutually between the 2a, conical ring body 2c and ring 2b directly all are embedded in lower house 11 inner chambers.
Suit ring 12b is two that are arranged in juxtaposition, and correspondingly, inner lining 2 also is two, and each inner lining 2 is all corresponding one by one mutually with a suit ring 12b.Lower house 11 1 sidewalls are furnished with the switch body 6 that two energy and external power source are electrically connected, and each switch body 6 all with the 5 corresponding connections of heating circle.The external part of switch body 6 is fitted with the action button 61 that can control these switch body 6 operations; Lower house 11 1 sides also are shaped on the scale body 15 of annular, and this scale body 15 matches with switch turn-knob 61.
Work pot assembly 3 is generally two, and matches with inner lining 2 respectively; Work pot assembly 3 includes pot body 31, is covered with pot cover body 32 on the pot body 31, and pot cover body 32 tops are bolted with pot cover handle 33.Pad is provided with intermediate washer 34 between pot cover handle 33 and the pot cover body 32; Pot body 31 upper edges are shaped on and can develop the ring limit 31a that contacts along the 2a top with flange.
The operating process of the embodiment of the invention is as follows:
With food, as chicken, beef, pork etc. are put into pot body 31 respectively, insert 120 volts power supply, regulate correspondence put into food to action button 61 to low high gear arbitrarily, as have only in the pot body 31 food arranged, then transfer corresponding action button 61, heating circle 5 heatings, other two are not generated heat; Food can be stewed behind the work several hrs.
Such as: 8:00 put into slow cooker with food and stewed morning, returned from work at noon and just can have the food of heat, and too many or have other thing to eat up then can be transferred to the insulation shelves as component, the food meeting is constant in certain temperature.
The design principle of the embodiment of the invention is as follows:
1, electrical configurations: 120 volts of voltages; 60 hertz frequently of electricity; Power output: 1360 watts.Fluctuation range is positive 5% to 10%;
2, be separately fixed at heating on 2 inner linings 2 by 2 groups of heating circles 5, transfer heat to pot body by air and 31 li food is stewed.
3, by action button 61 gears, be respectively: OFF shelves, LOW shelves, HIGH shelves, WARM shelves; Regulate action button 61 to LOW shelves, HIGH shelves, WARM shelves, position according to own needs, reach the effect that you want.
The advantage of the embodiment of the invention is: dispose a plurality of pots of bodies, processing when can be fit to different food, operating efficiency height; The temperature control of different pot bodies is set, and the user can select working respectively of one or more pots of bodies, flexible operation, convenient as required; Monoblock type is equipped with structure, and totally enclosed upper cover body structure prevents that pot interior spilling water from flowing in the seat body, improved the spatter property of whole pot; The inner lining of active mounting structure is installed simply, safeguards quick.
Most preferred embodiment of the present invention is illustrated, and various variations or the remodeling made by those of ordinary skills can not depart from the scope of the present invention.
Claims (10)
1, a kind of combining structure of slow cooker, comprise seat body (1), be fitted with inner lining (2) on the described seat body (1), described inner lining (2) inner chamber is nested with work pot assembly (3), it is characterized in that: described seat body (1) includes equipped mutually lower house (11) and upper shell (12); The upper edge of described lower house (11) is shaped on centring ring (11a), the lower edge of described upper shell (12) be shaped on can be equipped mutually with centring ring (11a) cover side ring (12a); Described lower house (11) both sides offer the first through hole body (13) along being shaped on vertical edge (11b) on the described vertical edge (11b); The inner chamber both sides of described lower house (11) are shaped on the batten (11c) of projection, are shaped on the second through hole body (14) on the described batten (11c), and are fitted with pedestal handle (4) between the adjacent described second through hole body (14) and the first through hole body (13).
2, the combining structure of a kind of slow cooker according to claim 1 is characterized in that: described upper shell (12) end face is shaped on the suit ring (12b) of at least two projectioies; Correspondingly, described inner lining (2) also is at least two, and this inner lining (2) matches with suit ring (12b).
3, the combining structure of a kind of slow cooker according to claim 2 is characterized in that: the upper oral part of described inner lining (2) is shaped on the flange of annular along (2a), and the interior edge on this flange edge (2a) is located at outside the suit ring (12b).
4, the combining structure of a kind of slow cooker according to claim 3 is characterized in that: bottom, the outer border of described inner lining (2) is shaped on straight ring (2b), is covered with at least one heating circle (5) on the described straight ring (2b).
5, the combining structure of a kind of slow cooker according to claim 4 is characterized in that: described heating circle (5) is a heating tape; Described straight ring (2b) and flange are along being shaped on the conical ring body (2c) of profile continuity mutually between (2a), described conical ring body (2c) all is embedded in lower house (11) inner chamber with straight ring (2b).
6, the combining structure of a kind of slow cooker according to claim 5, it is characterized in that: described suit ring (12b) is two that are arranged in juxtaposition, correspondingly, described inner lining (2) also is two, and each described inner lining (2) is all corresponding one by one mutually with a suit ring (12b).
7, the combining structure of a kind of slow cooker according to claim 6, it is characterized in that: described lower house (11) one sidewalls are furnished with the switch body (6) that two energy and external power source are electrically connected, and each described switch body (6) all with (5) the corresponding connection of heating circle.
8, the combining structure of a kind of slow cooker according to claim 7 is characterized in that: the external part of described switch body (6) is fitted with the action button (61) that can control this switch body (6) operation; Described lower house (11) one sides also are shaped on the scale body (15) of annular, and this scale body (15) matches with switch turn-knob (61).
9, the combining structure of a kind of slow cooker according to claim 8 is characterized in that: described work pot assembly (3) is two, and matches with inner lining (2) respectively; Described work pot assembly (3) includes a pot body (31), is covered with pot cover body (32) on the described pot body (31), and described pot cover body (32) top is bolted with pot cover handle (33).
10, the combining structure of a kind of slow cooker according to claim 9 is characterized in that: pad is provided with intermediate washer (34) between described pot cover handle (33) and the pot cover body (32); Described pot body (31) upper edge is shaped on and can develops the ring limit (31a) that contacts along (2a) top with flange.
