Abstract

The invention belongs to the energy-saving cooking field, particularly a kind of combined heat storage and heating stove and method of operating thereof, comprise the kitchen range top, burner, combustion fan, lampblack absorber, condensation purifier, upper hose, downcomer, the cooking stove controller, it is characterized in that on burner, being provided with heat gathering cover, the exhanst gas outlet tube head is provided with flue gas and cuts reversal valve, be provided with gas-to-gas heat exchanger in total heat exchange flue, the air-water heat exchanger, be provided with the tube bank of ball float water level controller and hot water in the heat storage water tank, external circulation line in the hot water, the lampblack absorber top is provided with balance induced-draft fan combustion gas and introduces new wind, and the front portion is provided with new wind transfer valve, air curtain forms device.This combined heat storage heating kitchen range combine heat supply water and heating with a plurality of heat exchanger package altogether, and are reasonable in design, compact conformation, and the thermal efficiency height of combustion gas makes full use of the heat energy that cooking stove produces, and improves working environment.

Description

Combined heat storage and heating stove and method of operating thereof
Technical field
The invention belongs to the energy-saving cooking field, particularly a kind of combined heat storage and heating stove and method of operating thereof are suitable for large kitchens such as restaurant, dining room and use.
Background technology
Present household electrical appliance that generally use such as gas-cooker, lampblack absorber, electric heater etc., these all are the products of function singleness, use is restricted, and there are a large amount of energy wastes, gas-cooker particularly, it comes cooking food by the combustion-supporting heating of room air, to the burn waste gas that produces, oil smoke, aqueous vapor that the cooking produces of lampblack absorber is outdoor by discharging behind the simple oil strain of oil cleaner screen, cause a large amount of waste heat wastes, and because burning produces a large amount of waste heats, temperature in the kitchen is raise, and air quality worsens, and influences healthy.Electric heater then need consume a large amount of electric energy with the cold water heating, and a large amount of use meetings bring very big pressure to electrical network.Therefore people are seeking a kind of method, and the energy recovery of wasting is used, and reach energy saving purposes.
Application for a patent for invention 2004100561549 " cooking stove hot water tank " discloses a kind of kitchen range of cabinet type structure, comprise induced-draft fan, reservoir, condenser, cooking stove is the combustion chamber that is surrounded by special-shaped cooling tube, by the fire tube bundle combustion chamber wind channel is connected, form the heat exchange loop by looping back water pipe, cooling tube, thermal convection current pipe, electric heat water tank, gas-cooker and electric heater are combined as a whole, easy to use, can reduce production costs.But still have the some shortcomings part.
Summary of the invention
The purpose of this invention is to provide and a kind ofly can make full use of combined heat storage and heating stove and the method for operating thereof that the heat that produced in the gas-cooker combustion process is used as heating, hot water both can be provided, be used for heating, can improve kitchen environment again.
According to combined heat storage and heating stove of the present invention, comprise the kitchen range top, be contained in burner on this kitchen range top and control valve, combustion fan and adjusting valve thereof, gas pipeline, lampblack absorber, storage tank, heat storage water tank, tube connector, condensation cleaning heat exchanger, upper hose, upper hose safety non-return valve, downcomer, it is characterized in that:
1) around described burner, be provided with a heat gathering cover, be provided with a water jacket in the kitchen range shell, form flue gas between this water jacket and the heat gathering cover and introduce the chamber,
2) described kitchen range shell downside is provided with exhaust opening and is connected with total heat exchange flue,
3) be provided with a balance induced-draft fan at described lampblack absorber top, be provided with in the casing of this balance induced-draft fan by the smoke evacuation wind drum and the new wind of same driven by motor and introduce drum, with dividing plate casing is separated into smoke evacuation chamber and new air compartment, top, smoke evacuation chamber is provided with exhaust opening, the lower end connects total heat exchange flue, new air compartment top is provided with fresh inlet, new air compartment lower end and last gas-to-gas heat exchanger, new wind distributor chamber is connected, one side of new wind distributor chamber is connected with new wind transfer valve by fresh wind tube, the last gas-to-gas heat exchanger of opposite side in total heat exchange flue is connected with fresh wind tube road another inlet with new wind transfer valve, the fresh wind tube road is through tube connector, following gas-to-gas heat exchanger, combustion-supporting airduct is connected with combustion fan
4) hot water outlet pipe of described heat storage water tank is provided with water circulating pump, be connected with return pipe by a circulating valve, the return pipe air-water heat exchanger interior with being located at total heat exchange flue is connected, this air-water heat exchanger is connected with water jacket, water jacket is connected with the heat storage water tank top, form the inner closed loop of heat energy storage, hot water outlet pipe, return pipe are connected with outside heating equipment, form outside closed circuit.
Be provided with the tube bank of ball float water level controller and hot water in the described heat storage water tank, the inlet of this hot water tube bank is connected with storage tank through tube connector, and the outlet and the hot-water line of hot water tube bank join, and also are provided with pressure spilling water valve on the heat storage water tank and link to each other with downcomer.
The underflue of described total heat exchange flue is divided into the flue of establishing the air-water heat exchanger in the flue of a gas-to-gas heat exchanger and one, described exhaust opening is provided with a flue gas transfer valve with total heat exchange flue junction, two outlets of this flue gas transfer valve respectively with the flue of gas-to-gas heat exchanger with in establish the air-water heat exchanger flue be connected, the flue of air-water heat exchanger and gas-to-gas heat exchanger flue compile in the interior pipe in into new wind and smoke road, the interior pipe upper end in new wind and smoke road links to each other with last gas-to-gas heat exchanger, the outer tube upper end in this new wind and smoke road links to each other with the fresh wind tube of last gas-to-gas heat exchanger both sides, and the lower end links to each other with tube connector.
There is an air curtain distributor chamber to be connected with described new wind transfer valve, the front panel of this air curtain distributor chamber has air curtain and forms outlet, junction at new wind transfer valve and air curtain distributor chamber is provided with the cold water comb, the water filling port of this cold water comb is connected with upper hose, has between cold water comb and the storage tank, water inlet is connected.
The waste gas of described lampblack absorber bottom converges the condensation cleaning heat exchanger is set in the chamber, and this condensation cleaning heat exchanger inserts storage tank middle part, and waste gas converges the chamber and communicates with total heat exchange flue top.
Air-water heat exchanger flue is provided with openable base plate at kitchen range top middle part, at the base plate downside heating auxiliary burner is set, and its auxiliary combustion fan connects auxiliary combustion-supporting airduct through the auxiliary Electric air valve of new wind, and gas electromagnetic valve is connected with auxiliary burner.
The front panel of described lampblack absorber is provided with controller, wherein be provided with the control button of balance induced-draft fan, new wind transfer valve and illuminating lamp, be provided with the cooking stove controller on the described kitchen range top, the control button and the water temperature that wherein are provided with water circulating pump, flue gas transfer valve, auxiliary heating gas electromagnetic valve and auxiliary Electric air valve thereof and igniting are automatically set and display.
Described water jacket adopts the spirally coiled water jacket, and described heat gathering cover is the bottom of a pan shape cover, and described air-water heat exchanger is bundled tube or blade heat exchanger.
The method of operating of described combined heat storage and heating stove comprises and sets the heat storage water tank hot water temperature, it is characterized in that:
A) operation of flue gas transfer valve:
1) when the hot water temperature of heat storage water tank is lower than setting value, the flue gas transfer valve is established the flue of air-water heat exchanger in tangential, by the water in the air-water heat exchanger heating heat storage water tank,
2) when the water temperature of heat storage water tank reaches setting value, with the flue of the tangential gas-to-gas heat exchanger of flue gas transfer valve, the new wind in the heating fresh wind tube,
B) operation of new wind reversal valve:
3) when outside air temperature is higher than 10 ℃, start new wind transfer valve, connect fresh wind tube-Xin wind transfer valve-air curtain distributor chamber passage, directly generate air curtain with outdoor new wind,
4) when outdoor temperature is low, when for example being lower than 10 ℃, switch new wind transfer valve, connect fresh wind tube-Xin wind transfer valve-air curtain distributor chamber passage, newly become air curtain humorously with what heat through last gas-to-gas heat exchanger,
C) method of operating of heating season:
5) when the cooking stove operate as normal, promptly can satisfy heating when requiring by the hot water that this device produced, close the auxiliary burner system,
6) quit work when cooking stove, when the heat storage water tank temperature is lower than the heating required value, open the auxiliary burner system, be the heat storage water tank supplemental heat source.
According to heat storage and heating stove of the present invention, be sitting on the kitchen range at the bottom of the kitchen range during use, the flue gas that burner produces enters flue gas introducing chamber and enters total heat exchange flue through exhaust opening, through entering new wind and smoke road after gas-to-gas heat exchanger or the heat exchange of the air-water heat exchanger cooling down, behind last gas-to-gas heat exchanger, flue gas is discharged from exhaust opening again by smoke evacuation wind drum.
New wind divides two-way after fresh wind port is introduced new air compartment, the one tunnel enters new wind and smoke road through last gas-to-gas heat exchanger by adapter, enters down gas-to-gas heat exchanger through new wind tube connector again, delivers to combustion fan through combustion-supporting airduct.Another road is through fresh wind tube, and new wind transfer valve is to the air curtain distributor chamber, and discharges the formation air curtain from its outlet.
The oil smoke that is produced by kitchen range on the kitchen range top, steam is compiled by the waste gas chamber of compiling, and enters total heat exchange flue after the cooling of condensation cleaning heat exchanger, is discharged by smoke evacuation wind drum.
Upper hose enters heat storage water tank through being located at new wind transfer valve and air curtain distributor chamber junction has the cold water comb to enter storage tank by tube connector, by inner closed loop, outside closed circuit circulate heating and heat accumulation, realizes purpose of the present invention.
The present invention combines a plurality of heat exchangers, and gas-cooker, lampblack absorber, heat storage water tank are combined, and utilizes balance induced-draft fan discharge flue gas and for burner provides new wind, has both saved the energy, has improved working environment again.
According to the present invention, the heat that is produced by burner is used for the cooking, and flue gas carries out the temperature that heat exchange can improve combustion air by the gas-to-gas heat exchanger in heat exchange flue and the heat exchange flue, thereby improves the thermal efficiency; Carry out heat exchange with the air-water heat exchanger in the heat exchange flue, heat energy storage is sent in the heat storage water tank in the water heating.From the heat that distributes more than the kitchen range top face, be included in the high-temperature oil smoke, the aqueous vapor that produce in the gastronomical process, through the cooling of condensation cleaning heat exchanger, oil, air cooling are coagulated, and heat is used for heating the water of storage tank, delivers in the tube bank of heat storage water tank, the heating of hot water in heat storage water tank is used to provide hot water.Circulation waterway can make hot water realize inner loop and outer loop, accomplishes to save energy and reduce the cost.
The air curtain apparatus set according to the present invention can produce air curtain, and hot flue gas, deep fat, aqueous vapor and kitchen that cooking stove is produced keep apart, and improve working environment.
Owing to adopted the balance induced-draft fan, make the waste gas of discharge and send into indoor fresh air to reach balance, help improving the completing combustion rate and improve indoor air environment.
Owing to adopted the assisted gas heater, suspended at cooking stove and can continue to heat heating water, temperature stabilization in the holding chamber when using.
Owing to designed two cover control device, made its operation and use very convenient.
Description of drawings

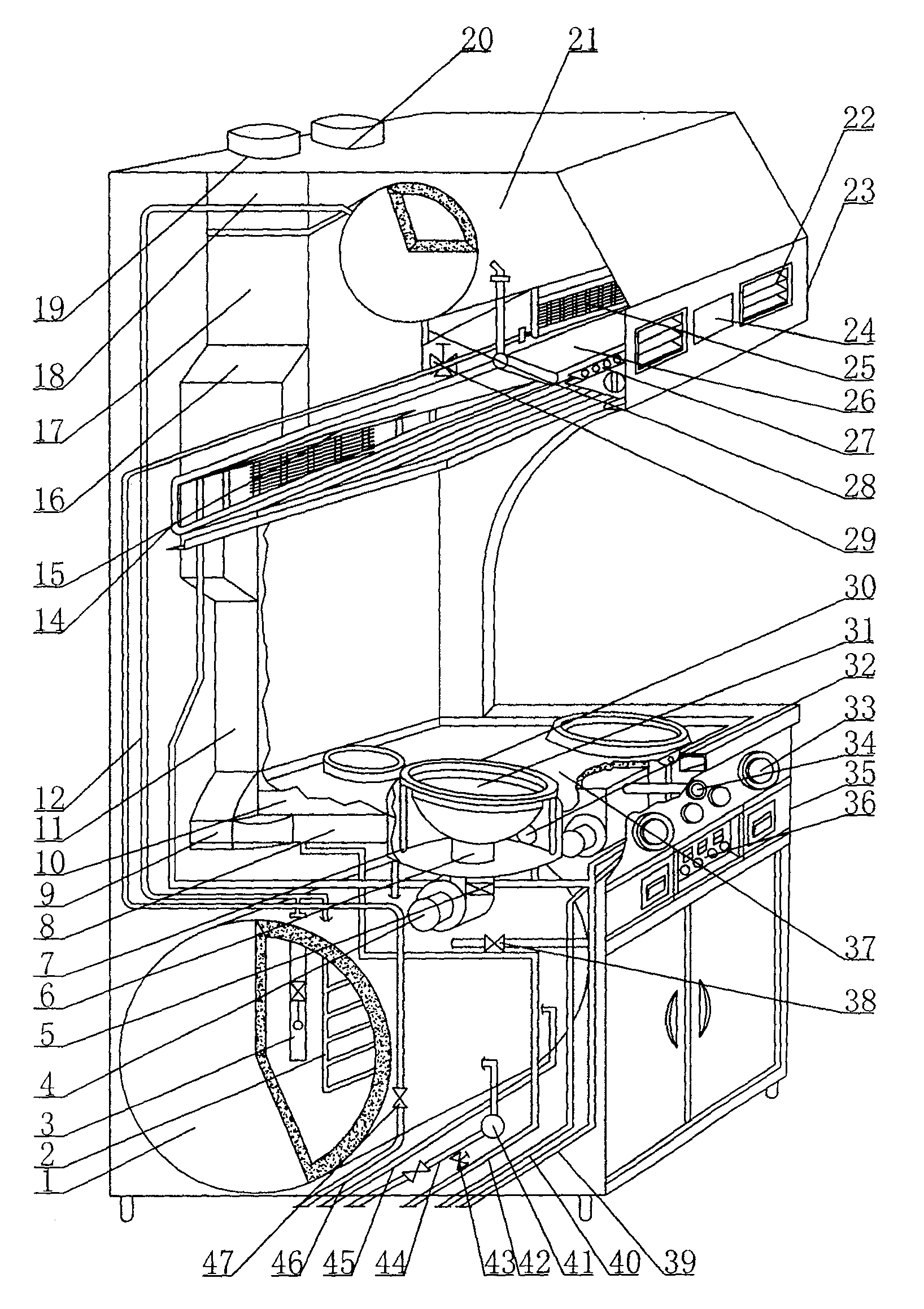

Fig. 1 is a perspective view of the present invention, there is shown twin furnace kitchen range structure.
Fig. 2 is the partial sectional view of facing of Fig. 1.
The specific embodiment
Below in conjunction with description of drawings the specific embodiment of the present invention.
As shown in Figure 1 and Figure 2, combined heat storage and heating stove of the present invention, comprise the kitchen range top 35, be contained in burner 6 on this kitchen range top 35 and control valve 33, combustion fan 4 and adjusting valve 5 thereof, gas pipeline 40, lampblack absorber 23, storage tank 21, heat storage water tank 1, tube connector 12, condensation cleaning heat exchanger 14, upper hose 46, upper hose safety non-return valve 47, downcomer 39, it is characterized in that:
1) around described burner 6, be provided with a heat gathering cover 31, be provided with a water jacket 7 in kitchen range 30 shells, form flue gas between this water jacket 7 and the heat gathering cover 31 and introduce the chamber,
2) described kitchen range 30 shell downsides are provided with exhaust opening 32 and are connected with total heat exchange flue 13,
3) be provided with a balance induced-draft fan 18 at described lampblack absorber 23 tops, be provided with the smoke evacuation wind drum 49 and the new wind that drive by same motor 51 in the casing of this balance induced-draft fan 18 and introduce drum 52, with dividing plate 50 casing is separated into smoke evacuation chamber 19 and new air compartment 20, smoke evacuation 19 tops, chamber are provided with exhaust opening, the lower end connects total heat exchange flue 13, new air compartment 20 tops are provided with fresh inlet, new air compartment 20 lower ends and last gas-to-gas heat exchanger 17, new wind distributor chamber 53 is connected, one side of new wind distributor chamber 53 is connected with new wind transfer valve 29 by fresh wind tube 28, the last gas-to-gas heat exchanger 17 of opposite side in total heat exchange flue 13 is connected with fresh wind tube road 16 another inlet with new wind transfer valve 29, fresh wind tube road 16 is through tube connector 9, following gas-to-gas heat exchanger 8, combustion-supporting airduct 59 is connected with combustion fan 4
4) hot water outlet pipe 44 of described heat storage water tank 1 is provided with water circulating pump 41, be connected with return pipe 42 by a circulating valve 43, return pipe 42 is connected with air-water heat exchanger 10 in being located at total heat exchange flue 13, this air-water heat exchanger 10 is connected with water jacket 7, water jacket 7 is connected with heat storage water tank 1 top, form the inner closed loop of heat energy storage, hot water outlet pipe 44, return pipe 42 are connected with outside heating equipment, form outside closed circuit.
As shown in Figure 1, be provided with ball float water level controller 3 and hot water tube bank 2 in the described heat storage water tank 1, the inlet of this hot water tube bank 2 is connected with storage tank 21 through tube connector 12, and the outlet and the hot-water line 45 of hot water tube bank 2 join, and heat storage water tank 1 also is provided with pressure spilling water valve 38 and links to each other with downcomer 39.
As shown in Figure 2, described combined heat storage and heating stove, its feature is established the flue 37 of air-water heat exchanger 10 in the underflue of described total heat exchange flue 13 is divided into the flue of a gas-to-gas heat exchanger 8 and one, described exhaust opening 32 is provided with a flue gas transfer valve 55 with total heat exchange flue 13 junctions, two outlets of this flue gas transfer valve 55 respectively with the flue of gas-to-gas heat exchanger 8 with in establish air-water heat exchanger 10 flue 37 be connected, the flue 37 of air-water heat exchanger and gas-to-gas heat exchanger flue compile in the interior pipe in into new wind and smoke road 11, the interior pipe upper end in new wind and smoke road 11 links to each other with last gas-to-gas heat exchanger 17, the outer tube upper end in this new wind and smoke road 11 links to each other with the fresh wind tube 16 of last gas-to-gas heat exchanger 17 both sides, and the lower end links to each other with tube connector 9.
There is an air curtain distributor chamber 26 to be connected with described new wind transfer valve 29, the front panel of this air curtain distributor chamber 26 has air curtain and forms outlet 27, junction at new wind transfer valve 29 and air curtain distributor chamber 26 is provided with cold water comb 25, the water filling port of this cold water comb 25 is connected with upper hose 46, has between cold water comb 25 and the storage tank 21, water inlet is connected.
The waste gas of described lampblack absorber 23 bottoms converges condensation cleaning heat exchanger 14 is set in the chamber 15, and this condensation cleaning heat exchanger 14 inserts storage tanks 21 middle parts, and waste gas converges chamber 15 and communicates with total heat exchange flue 13 tops.
Be provided with openable base plate at kitchen range top middle part air-water heat exchanger flue 37, at the base plate downside heating auxiliary burner 57 is set, its auxiliary combustion fan 54 connects auxiliary combustion-supporting airduct 59 through the auxiliary Electric air valve 56 of new wind, and gas electromagnetic valve 58 is connected with auxiliary burner 57.
The front panel of described lampblack absorber 23 is provided with controller 24, wherein be provided with the control button of balance induced-draft fan 18, new wind transfer valve 29 and illuminating lamp, be provided with cooking stove controller 36 on the described kitchen range top 35, the control button and the water temperature that wherein are provided with water circulating pump 41, flue gas transfer valve 55, auxiliary heating gas electromagnetic valve 58 and auxiliary Electric air valve 56 and igniting are automatically set and display.
Described water jacket 7 adopts the spirally coiled water jacket, and described heat gathering cover 31 is the bottom of a pan shape cover, and described air-water heat exchanger 10 is bundled tube or blade heat exchanger.
The method of operating of described combined heat storage and heating stove comprises and sets the heat storage water tank hot water temperature, it is characterized in that:
A) operation of flue gas transfer valve 55:
1) when the hot water temperature of heat storage water tank 1 is lower than setting value, flue gas transfer valve 55 is established the flue 37 of air-water heat exchanger 10 in tangential, by the water in the air-water heat exchanger 10 heating heat storage water tanks 1,
2) when the water temperature of heat storage water tank 1 reaches setting value, with the flue of flue gas transfer valve 55 tangential gas-to-gas heat exchangers 8, the new wind in the heating fresh wind tube,
B) operation of new wind reversal valve 29:
3) when outside air temperature is higher than 10 ℃, start new wind transfer valve 29, connect the new wind transfer valve of fresh wind tube 28-29-air curtain distributor chamber 26 passages, directly generate air curtain with outdoor new wind,
4) when outdoor temperature is low, when for example being lower than 10 ℃, switch new wind transfer valve 29, connect the new wind transfer valve of fresh wind tube 16-29-air curtain distributor chamber 26 passages, newly become air curtain humorously with what heat through last gas-to-gas heat exchanger 17,
C) method of operating of heating season:
5) when the cooking stove operate as normal, promptly can satisfy heating when requiring by the hot water that this device produced, close the auxiliary burner system,
6) quit work when cooking stove, when heat storage water tank 1 temperature is lower than the heating required value, open the auxiliary burner system, be heat storage water tank 1 supplemental heat source.
Label 34 among the figure is a peep hole, and 22 is shutter.Kitchen range top is provided with the situation of two kitchen ranges among the figure, and burner and relevant device thereof all are two covers.The heat exchanger that is adopted is by two distributor chambers, one group of bundled tube or sheet pipe, and two are compiled the chamber and form, distributor chamber is inlet, and the chamber of compiling is outlet, and heat transferring medium enters bundled tube or sheet flat tube through distributor chamber, after tube wall carries out heat exchange, be pooled to again to compile in the chamber and discharge.

Claims (9)

1, a kind of combined heat storage and heating stove, comprise the kitchen range top (35), be contained in burner (6) on this kitchen range top (35) and control valve (33), combustion fan (4) and adjusting valve (5) thereof, gas pipeline (40), lampblack absorber (23), storage tank (21), heat storage water tank (1), tube connector (12), condensation cleaning heat exchanger (14), upper hose (46), upper hose safety non-return valve (47), downcomer (39), it is characterized in that:
1) be provided with a heat gathering cover (31) on every side at described burner (6), be provided with a water jacket (7) in kitchen range (30) shell, form flue gas between this water jacket (7) and the heat gathering cover (31) and introduce the chamber,
2) described kitchen range (30) shell downside is provided with exhaust opening (32) and is connected with total heat exchange flue (13),
3) be provided with a balance induced-draft fan (18) at described lampblack absorber (23) top, be provided with the smoke evacuation wind drum (49) and the new wind that drive by same motor (51) in the casing of this balance induced-draft fan (18) and introduce drum (52), with dividing plate (50) casing is separated into smoke evacuation chamber (19) and new air compartment (20), top, smoke evacuation chamber (19) is provided with exhaust opening, the lower end connects total heat exchange flue (13), new air compartment (20) top is provided with fresh inlet, new air compartment (20) lower end and last gas-to-gas heat exchanger (17), new wind distributor chamber (53) is connected, one side of new wind distributor chamber (53) is connected with new wind transfer valve (29) by fresh wind tube (28), the last gas-to-gas heat exchanger (17) of opposite side in total heat exchange flue (13) is connected with fresh wind tube road (16) another inlet with new wind transfer valve (29), fresh wind tube road (16) is through tube connector (9), following gas-to-gas heat exchanger (8), combustion-supporting airduct (59) is connected with combustion fan (4)
4) hot water outlet pipe (44) of described heat storage water tank (1) is provided with water circulating pump (41), be connected with return pipe (42) by a circulating valve (43), return pipe (42) the air-water heat exchanger (10) interior with being located at total heat exchange flue (13) is connected, this air-water heat exchanger (10) is connected with water jacket (7), water jacket (7) is connected with heat storage water tank (1) top, form the inner closed loop of heat energy storage, hot water outlet pipe (44), return pipe (42) are connected with outside heating equipment, form outside closed circuit.
2, combined heat storage and heating stove according to claim 1, its feature is provided with ball float water level controller (3) and hot water tube bank (2) in described heat storage water tank (1), the inlet of this hot water tube bank (2) is connected with storage tank (21) through tube connector (12), the outlet and the hot-water line (45) of hot water tube bank (2) join, and also are provided with pressure spilling water valve (38) on the heat storage water tank (1) and link to each other with downcomer (39).
3, combined heat storage and heating stove according to claim 1, its feature is established the flue (37) of air-water heat exchanger (10) in the underflue of described total heat exchange flue (13) is divided into the flue of a gas-to-gas heat exchanger (8) and one, described exhaust opening (32) is provided with a flue gas transfer valve (55) with total heat exchange flue (13) junction, two outlets of this flue gas transfer valve (55) respectively with the flue of gas-to-gas heat exchanger (8) with in establish air-water heat exchanger (10) flue (37) be connected, flue of air-water heat exchanger (37) and gas-to-gas heat exchanger flue compile in the interior pipe in into new wind and smoke road (11), the interior pipe upper end in new wind and smoke road (11) links to each other with last gas-to-gas heat exchanger (17), the outer tube upper end in this new wind and smoke road (11) links to each other with the fresh wind tube (16) of last gas-to-gas heat exchanger (17) both sides, and the lower end links to each other with tube connector (9).
4, combined heat storage and heating stove according to claim 1, its feature is in there being an air curtain distributor chamber (26) to be connected with described new wind transfer valve (29), the front panel of this air curtain distributor chamber (26) has air curtain and forms outlet (27), junction at new wind transfer valve (29) and air curtain distributor chamber (26) is provided with cold water comb (25), the water filling port of this cold water comb (25) is connected with upper hose (46), has between cold water comb (25) and the storage tank (21), water inlet is connected.
5, combined heat storage and heating stove according to claim 1, the waste gas that it is characterized in that described lampblack absorber (23) bottom converges condensation cleaning heat exchanger (14) is set in the chamber (15), this condensation cleaning heat exchanger (14) inserts storage tank (21) middle part, and waste gas converges chamber (15) and communicates with total heat exchange flue (13) top.
6, combined heat storage and heating stove according to claim 1, it is characterized in that being provided with openable base plate at kitchen range top middle part air-water heat exchanger flue (37), at the base plate downside heating auxiliary burner (57) is set, its auxiliary combustion fan (54) connects auxiliary combustion-supporting airduct (59) through the auxiliary Electric air valve (56) of new wind, and gas electromagnetic valve (58) is connected with auxiliary burner (57).
7, combined heat storage and heating stove according to claim 1, the front panel that it is characterized in that described lampblack absorber (23) is provided with controller (24), wherein be provided with the control button of balance induced-draft fan (18), new wind transfer valve (29) and illuminating lamp, be provided with cooking stove controller (36) on the described kitchen range top (35), the control button and the water temperature that wherein are provided with water circulating pump (41), flue gas transfer valve (55), auxiliary heating gas electromagnetic valve (58) and auxiliary Electric air valve (56) and igniting are automatically set and display.
8, combined heat storage and heating stove according to claim 1 is characterized in that described water jacket (7) adopts the spirally coiled water jacket, and described heat gathering cover (31) is the bottom of a pan shape cover, and described air-water heat exchanger (10) is bundled tube or blade heat exchanger.
9, the method for operating of the described combined heat storage and heating stove of a kind of claim 1 comprises and sets the heat storage water tank hot water temperature, it is characterized in that:
A) operation of flue gas transfer valve (55):
1) when the hot water temperature of heat storage water tank (1) is lower than setting value, flue gas transfer valve (55) is established the flue (37) of air-water heat exchanger (10) in tangential, by the water in air-water heat exchanger (10) the heating heat storage water tank (1),
2) when the water temperature of heat storage water tank (1) reaches setting value, with the flue of the tangential gas-to-gas heat exchanger (8) of flue gas transfer valve (55), the new wind in the heating fresh wind tube,
B) operation of new wind reversal valve (29):
3) when outside air temperature is higher than 10 ℃, start new wind transfer valve (29), connect fresh wind tube (28)-Xin wind transfer valve (29)-air curtain distributor chamber (26) passage, directly generate air curtain with outdoor new wind,
4) when outdoor temperature is lower than 10 ℃, switch new wind transfer valve (29), connect fresh wind tube (16)-Xin wind transfer valve (29)-air curtain distributor chamber (26) passage, newly become air curtain humorously with what heat through last gas-to-gas heat exchanger (17),
C) method of operating of heating season:
5) when the cooking stove operate as normal, promptly can satisfy heating when requiring by the hot water that this device produced, close the auxiliary burner system,
6) quit work when cooking stove, when heat storage water tank (1) temperature is lower than the heating required value, open the auxiliary burner system, be heat storage water tank (1) supplemental heat source.
