CN100542860C - Self-complementing and stabilizing inflation method and device for gas filling substation - Google Patents
Self-complementing and stabilizing inflation method and device for gas filling substation Download PDFInfo
- Publication number
- CN100542860C CN100542860C CNB2008100998135A CN200810099813A CN100542860C CN 100542860 C CN100542860 C CN 100542860C CN B2008100998135 A CNB2008100998135 A CN B2008100998135A CN 200810099813 A CN200810099813 A CN 200810099813A CN 100542860 C CN100542860 C CN 100542860C
- Authority
- CN
- China
- Prior art keywords
- pressure
- gas
- substation
- gas storage
- low
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Expired - Fee Related
Links
- 230000000087 stabilizing effect Effects 0.000 title claims abstract description 10
- 238000000034 method Methods 0.000 title abstract description 7
- 238000003860 storage Methods 0.000 claims abstract description 44
- 238000005516 engineering process Methods 0.000 abstract description 3
- 238000009434 installation Methods 0.000 abstract description 2
- 230000014759 maintenance of location Effects 0.000 abstract description 2
- 239000013589 supplement Substances 0.000 abstract 1
- 239000007789 gas Substances 0.000 description 79
- VNWKTOKETHGBQD-UHFFFAOYSA-N methane Chemical compound C VNWKTOKETHGBQD-UHFFFAOYSA-N 0.000 description 4
- 239000003345 natural gas Substances 0.000 description 2
- 230000033228 biological regulation Effects 0.000 description 1
- 230000006835 compression Effects 0.000 description 1
- 238000007906 compression Methods 0.000 description 1
- 238000010276 construction Methods 0.000 description 1
- 230000007812 deficiency Effects 0.000 description 1
- 239000000945 filler Substances 0.000 description 1
- 239000000446 fuel Substances 0.000 description 1
- 238000010079 rubber tapping Methods 0.000 description 1
Images
Landscapes
- Filling Or Discharging Of Gas Storage Vessels (AREA)
Abstract
加气子站自补稳压充气法及装置，就是在没有站外气源的状态下，利用站内自有的低、中压储气依次为高压储气库做补充，使对外加气的压力保持在额定范围。其装置主要由子站压缩机，高、中、低压储气库，自补回路系统和加气机连接而成。与现有技术相比，能够提高站内设备利用率，延长加气子站保持额定压力的工作时间，延伸母子站之间的开设距离。提高运气槽车的卸气效率，节省电耗，降低运行成本，结构简单，安装简便，自动化运行，方便可靠。
The self-supplementing and stabilizing pressure filling method and device of the gas filling substation is to use the self-owned low and medium pressure gas storage in the station to supplement the high pressure gas storage in turn under the condition that there is no gas source outside the station, so that the pressure of external gas filling remain within the rated range. Its device is mainly composed of substation compressors, high, medium and low pressure gas storages, self-replenishment loop system and gas filling machine. Compared with the existing technology, it can improve the utilization rate of the equipment in the station, prolong the working time of the sub-station to maintain the rated pressure, and extend the opening distance between the parent and sub-stations. Improve the unloading efficiency of the tank truck, save power consumption, reduce operating costs, simple structure, easy installation, automatic operation, convenient and reliable.
Description
Technical field:
The present invention relates to automobile with compressed natural gas air entraining substation technical field, especially a kind of secondary gas filling station self-complementing voltage-stabilizing charging method and device.
Background technology:
By standard GB 50156--2002 (version in 2006) " automobile fuel filler gas station design and construction standard " regulation, the compression natural gas air entraining substation can use gas cylinder group or gas well that the high, medium and low three group gas storages of volume ratio as 1:2:3 are set.The volume minimum of high pressure air reservoir only is 1/6 of a substation air reservoir capacity, but can its pressure have determined the external gas filed top pressure of air entraining substation reach the rated pressure scope.So when the fortune tank car was supplied gas to air entraining substation, the substation compressor all was that the sequence control according to high, medium and low voltage puts on the air to the substation gas storage, at first make the high-pressure gas storehouse reach behind the authorized pressure it, and then centering, low gas storage inflation.
But after the fortune tank car leaves, do not have under the state of external air source, though the substation compressor is housed, account for substation gas storage total volume 5/6 in, low pressure gas storage can't add to the high-pressure gas storehouse.When air entraining substation continued additional gas, high-pressure gas storehouse pressure still constantly descended, and externally can't keep the rated pressure scope, influences the air entraining substation normal operation.
Summary of the invention:
The objective of the invention is to overcome the deficiency of existing air entraining substation technology and device, a kind of secondary gas filling station self-complementing voltage-stabilizing charging method and device are provided.The object of the present invention is achieved like this: secondary gas filling station self-complementing voltage-stabilizing charging method is exactly under the state that does not have the outer source of the gas in station, utilizes low, the middle pressure gas storage of having by oneself in the station to be followed successively by the high-pressure gas storehouse and does additionally, makes the pressure to additional gas remain on rated range.Its device is mainly by the substation compressor, and the high, medium and low voltage gas storage refills road system and filling machine certainly and is formed by connecting.
The substation compressor is equipped with sequence control dish and overvoltage stoppage protection device, and exhaust gas pressure is 20-25MP
aFreeing pipe is the high, medium and low voltage gas supply electromagnetic valve by the sequence control dish respectively, the high, medium and low voltage gas supply line that connects high, medium and low voltage gas storage and filling machine, air inlet pipe connects check valve, pressure transformer and external interface successively, pressure transformer sends signal during outer source of the gas at station not, makes oneself refill road system self-opening; The high, medium and low voltage gas storage is equipped with pressure transformer respectively, low, middle pressure gas storage connects the substation compressor inleting pipe by low, the middle hydraulic circuit electromagnetic valve that refills the road system certainly respectively, outside having the station, under the state of source of the gas, do not mend the air reservoir of voltage stabilizing aerating certainly as air entraining substation successively; From refilling the road system by the pressure transformer that is contained in respectively on the high, medium and low voltage gas storage, in in being connected on respectively, between low pressure gas storage and the substation compressor inleting pipe, the low tension loop electromagnetic valve, connect to form with the electric control panel of benefit certainly with the interlock of sequence control dish, the interlock circuit of the signal of circuit electromagnetic valve and pressure transformer and sequence control dish all inserts from mending electric control panel, link successively during operation with the gas supply electromagnetic valve of low, middle pressure gas storage close, the circuit electromagnetic opening of valves, switch pressure can be adjusted; Whole device can adopt the module assembling; When gas storage many groups in substation are provided with, while corresponding pressure boost transmitter and circuit electromagnetic valve in refilling the road system certainly.
Air entraining substation is before mending the voltage stabilizing gas filled device and bringing into use, and the high, medium and low voltage gas storage of substation should be inflated in advance, and the air pressure in high-pressure gas storehouse should reach rated pressure 20-25MP
a, filling machine is externally inflated to be reached rated range.
When air entraining substation from mending voltage stabilizing gas filled device external interface not during the outer source of the gas connection in station, pressure transformer sends signal from mending the electric control panel self-opening, the low tension loop electromagnetic valve that connects the compressor inleting pipe line is open-minded, the interlock of the dish of sequence control simultaneously, close the inflation electromagnetic valve of low pressure gas storage, start the substation compressor.Do source of the gas with low pressure gas storage own in standing this moment, for the high-pressure gas storehouse replenishes gas, makes high-pressure gas storehouse pressure continue to remain on the rated pressure scope through the substation compressor, continues additional gas for filling machine.
When low pressure gas storage hypotony can't be utilized, the pressure voltage transformer sent signal, mended the interlock of electric control panel and sequence control dish certainly, closed the inflation electromagnetic valve of low tension loop electromagnetic valve and middle pressure gas storage, hydraulic circuit electromagnetic valve in opening.Do source of the gas with middle pressure gas storage own in standing this moment, for the high-pressure gas storehouse replenishes gas, makes high-pressure gas storehouse pressure continue to remain on the rated pressure scope through the substation compressor, continues additional gas for filling machine.Until the external air source supply is arranged.
Secondary gas filling station self-complementing voltage-stabilizing charging method and device replenish external air source and keep the specified device that adds atmospheric pressure and compare with existing only depending on, only increase few parts and can improve the station equipment degree of utilization, prolong the work-hours that air entraining substation keeps rated pressure, extend the distance of offering between the mothers and sons station, that improves the fortune tank car unloads gas efficient, save power consumption, reduce operating cost.Simple in structure, simple installation, automatic operating, convenient and reliable.Can effectively improve gas taking rate when using skid gas cylinder group, improve fortune efficient.

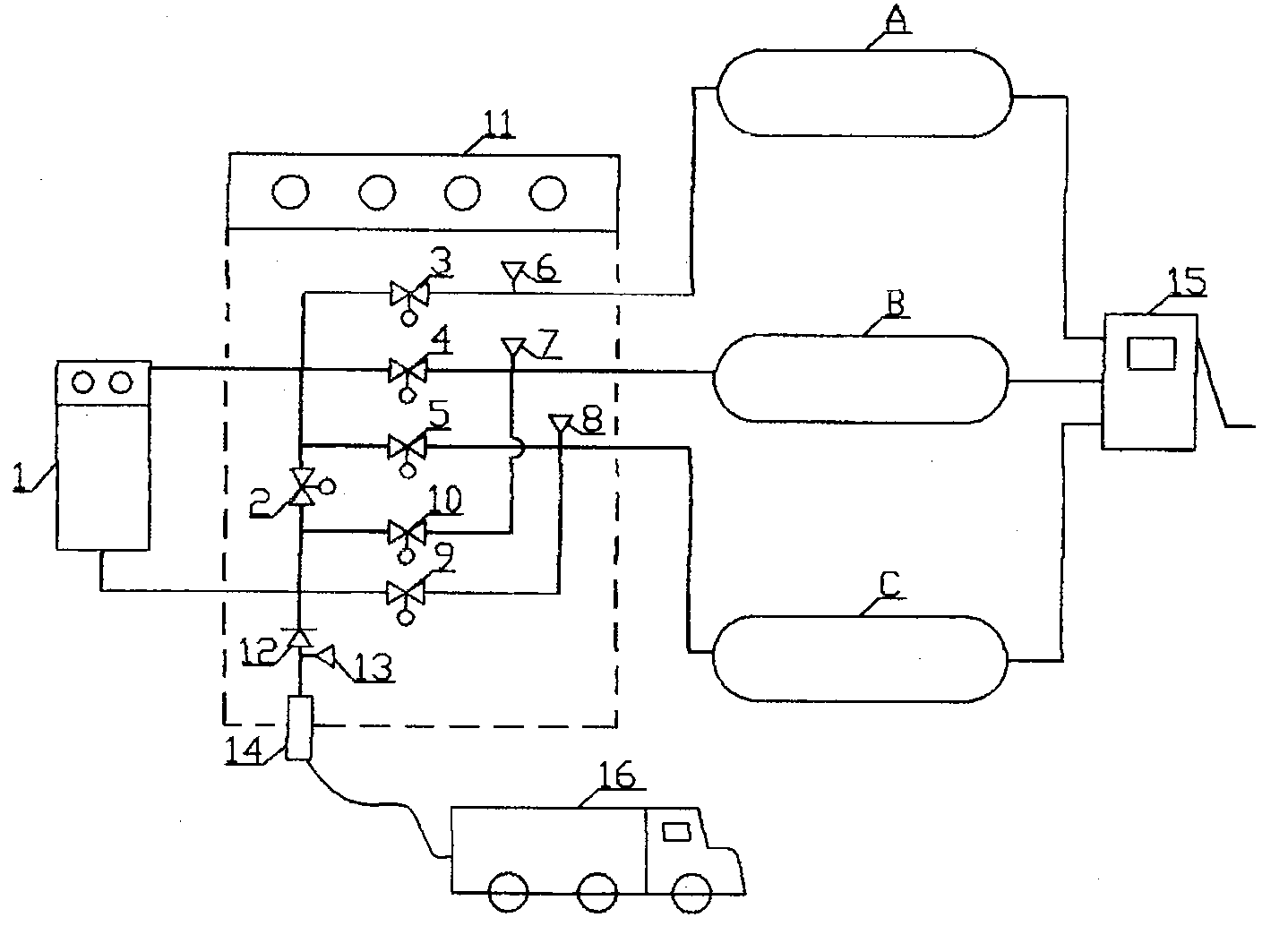

Description of drawings:
Accompanying drawing is that air entraining substation is from mending voltage stabilizing gas filled device structural representation.
Among the figure:
1, substation compressor 2, the bypass electromagnetic valve of sequence control dish are housed
3, high-pressure air feed electromagnetic valve 4, medium pressure supply electromagnetic valve 5, low pressure gas supply electromagnetic valve
6, pressure transformer 7, pressure transformer 8, pressure transformer
9, low tension loop electromagnetic valve 10, middle hydraulic circuit electromagnetic valve 11, mend electric control panel certainly
12, check valve 13, pressure transformer 14, external tapping
15, filling machine 16, tank car
A, high-pressure gas storehouse B, middle pressure gas storage C, low pressure gas storage
The specific embodiment explanation:
In above accompanying drawing, substation compressor 1 is equipped with sequence control dish and overvoltage stoppage protection device, and exhaust gas pressure is 20-25MP
aThe freeing pipe of substation compressor 1 is the high, medium and low voltage gas supply electromagnetic valve 3,4,5 by the sequence control dish respectively, the high, medium and low voltage gas supply line that connects high, medium and low voltage gas storage A, B, C and filling machine 15, the air inlet pipe of substation compressor 1 connects check valve 12 successively, pressure transformer 13 and external interface 14, pressure transformer sends signal during outer source of the gas at station not, makes oneself refill road system self-opening; High, medium and low voltage gas storage A, B, C are equipped with pressure inverting gas device 6,7,8 respectively, low, middle pressure gas storage C, B connect the air inlet pipe of substation compressor 1 respectively by low, the middle hydraulic circuit electromagnetic valve 9,10 that refills the road system certainly, outside having the station, under the state of source of the gas, do not mend the air reservoir of voltage stabilizing aerating certainly as air entraining substation successively; From refilling the road system by being contained in height respectively, in, low pressure gas storage A, B, pressure transformer 6 on the C, 7,8, in being connected on respectively, low pressure gas storage B, middle hydraulic circuit electromagnetic valve 10 between the air inlet pipe of C and substation compressor 1, low tension loop electromagnetic valve 9, connect to form with the electric control panel of benefit certainly 11 with the interlock of sequence control dish, circuit electromagnetic valve 9,10 and pressure transformer 6,7,8, the interlock circuit of 13 signal and sequence control dish all inserts from mending electric control panel 11, link successively during operation low, the middle gas storage C that presses, the gas supply electromagnetic valve of B closes 5,4, circuit electromagnetic valve 9,10 open, and switch pressure can be adjusted; Whole device can adopt the module assembling; When gas storage many groups in substation are provided with, while corresponding pressure boost transmitter and circuit electromagnetic valve in refilling the road system certainly.
Claims (2)
1, air entraining substation is from mending the voltage stabilizing gas filled device; mainly by the substation compressor; the high, medium and low voltage gas storage; be formed by connecting from refilling road system and filling machine; under the state that does not have the outer source of the gas in station, utilize low, the middle pressure gas storage of having by oneself in the station to be followed successively by the high-pressure gas storehouse and do additionally, make pressure remain on rated range to additional gas; it is characterized in that: the substation compressor is equipped with sequence control dish and overvoltage stoppage protection device, and exhaust gas pressure is 20-25MP
aThe freeing pipe of substation compressor is the high, medium and low voltage gas supply electromagnetic valve by the sequence control dish respectively, connect the high, medium and low voltage gas supply line of high, medium and low voltage gas storage and filling machine, the air inlet pipe of substation compressor connects check valve, pressure transformer and external interface successively; From refilling the road system by the pressure transformer that is contained in respectively on the high, medium and low voltage gas storage, in in being connected on respectively, between low pressure gas storage and the substation compressor inleting pipe, low tension loop electromagnetic valve and connect to form with the electric control panel of benefit certainly of sequence control dish interlock; The signal line of each circuit electromagnetic valve and each pressure transformer and the interlock circuit of sequence control dish all insert from mending electric control panel; Pressure transformer on the admission line does not send signal during source of the gas outside having the station, make from refilling the road system and open, the interlock of the dish of sequence control simultaneously, earlier the gas supply electromagnetic valve of low pressure gas storage is closed, the circuit electromagnetic opening of valves, start the substation compressor, do the high-pressure gas storehouse with the low pressure gas storage and replenish source of the gas; When low pressure gas storage hypotony can't be utilized, close the gas supply electromagnetic valve that forces down circuit electromagnetic valve and middle pressure gas storage, hydraulic circuit electromagnetic valve in the unlatching is done the high-pressure gas storehouse with middle pressure gas storage and is replenished source of the gas; Switch pressure can be adjusted, and makes low, middle pressure gas storage mend the air reservoir of voltage stabilizing aerating certainly as air entraining substation successively.
2, air entraining substation according to claim 1 is characterized in that from mending the voltage stabilizing gas filled device: when gas storage many groups in substation are provided with, and corresponding pressure boost transmitter and circuit electromagnetic valve in refilling the road system certainly.
