CN100473890C - Moveable project lamp - Google Patents

Abstract

A mobile engineering lamp, comprising a lampshade with a handle and a cavity formed by a base to install a 2D fluorescent lamp tube, a ballast, a reflector, a terminal post, and a protective ring. The base is fixed with a fixing seat, and the fixing seat A whole formed by connecting two or more pallets, on which a reflector plate matching the shape of the pallet is fixed, and each reflector plate is connected with a 2D fluorescent tube fixed on a lamp holder, so A bottom reflection plate is fixed on the base, and a suspender is fixed at one end of the handle, and the suspender is connected to the bracket cover connected to the base to fix the lampshade and the base as one. All electronic components and connecting wires are installed in the shielding field formed by the reflector and the supporting plate, so that there will be no electromagnetic interference. Three high-power 2D fluorescent tubes are used as light sources, and reflectors are installed on the base and the fixing seat. , making full use of the reflected light of 2D fluorescent tubes, the brightness is large and energy-saving, and the hemispherical wide-angle lighting is realized. The use position can be changed at any time, which is convenient, flexible and safe to use.

Description

Mobile Engineering Light

technical field

The invention relates to a lighting tool lamp, in particular to a mobile engineering lamp that can be widely used in road repairs, pipeline maintenance, field construction operations, construction sites and other construction fields, and can be used by changing the installation position of the engineering lamp at any time. .

Background technique

Some indoor and outdoor workplaces, such as basements, utility rooms, construction sites, and road repairs, require work lights with high brightness and large irradiation distance for use due to the large space and poor working environment, but the existing work lights The function is relatively simple, and the lighting distance and brightness cannot meet the needs of the project.

Patent No. CN200520121195.1 "Multifunctional Portable Work Lamp" also provides a 2D fluorescent tube as a light source, which is waterproof, easy to carry, suitable for hanging upside down, hanging, hooking, lying flat, shelving, etc. A portable work light for work, but its lighting range is small, and the lighting angle can only illuminate the 180-degree range in front of the work light, and the lighting distance and brightness cannot meet the needs of existing construction projects.

Patent No. CN200420117768.9 "New energy-saving projection lamp" also provides a lamp with an integrated structure of an upper light box and a lower electrical box. A row of U-shaped energy-saving fluorescent lamps are fixed on the inner lamp holder. Although the reflector and the brightness of a row of fluorescent lamps are larger, it can only illuminate the front range of the lamp and cannot illuminate in all directions. It is also not suitable for engineering lamps.

Contents of the invention

The technical problem to be solved by the present invention is to provide a mobile engineering lamp, which not only has a long lighting distance, but also has a large brightness, can realize hemispherical wide-angle illumination, and can change the use position or height of the engineering lamp at any time according to needs, and is easy to use and carry ,Safety.

The technical solution adopted by the present invention to solve the above problems is: mobile engineering lamp, including a cavity composed of a lampshade with a handle and a base, and a 2D fluorescent tube, a ballast, a reflector, and a terminal are installed in the cavity , protective ring, the base is fixed with a fixed seat, and the fixed seat is formed by connecting two or more supporting plates. There is a 2D fluorescent tube fixed on the lamp holder, a bottom reflector is also fixed on the base, a suspender is fixed at one end of the handle, and the suspender is connected with the bracket sleeve connected to the base, and the lampshade is connected to the base fixed into one.

Compared with the prior art, the present invention has the advantages that all electronic components and connecting wires of the lamp are installed in the shielding field of the cavity of the fixing seat formed by the reflector and the supporting plate, and can be viewed from the outside of the transparent lampshade. The inside is neat and beautiful, without messy wires, no shadows after the light is irradiated, and there will be no electromagnetic interference, and three high-power 2D fluorescent tubes evenly distributed on the periphery of the fixing seat are used as light sources. The slope of the fixing seat is equipped with a reflector structure, which makes full use of the reflected light of the 2D fluorescent tube, so it is brighter and energy-saving. It also uses a lampshade composed of three arc surfaces to achieve hemispherical wide-angle lighting, 360° °>Illumination range>180°. The connection between the transparent lampshade and the base is padded with rubber pads, the base feet are covered with rubber feet, and the handle is plugged with a sealing head, which is waterproof and suitable for outdoor work. As long as the handle is turned, the suspender can be unscrewed from the screw hole on the bracket sleeve, and the lampshade is detached from the base to expose the 2D fluorescent lamp tube, which is convenient and fast for replacement or maintenance and disassembly of the lamp tube. There is a handle on the lamp to hang, hang, hook on the wall or hang in the air, hang upside down or put it on hold, and use it by hand. The use position can be changed at any time. It is convenient, flexible and safe to use.

Description of drawings

Fig. 1, the structure schematic diagram (perspective view) of the present invention.

Fig. 2, the schematic diagram of the three-dimensional structure of the present invention (handle and lampshade are removed).

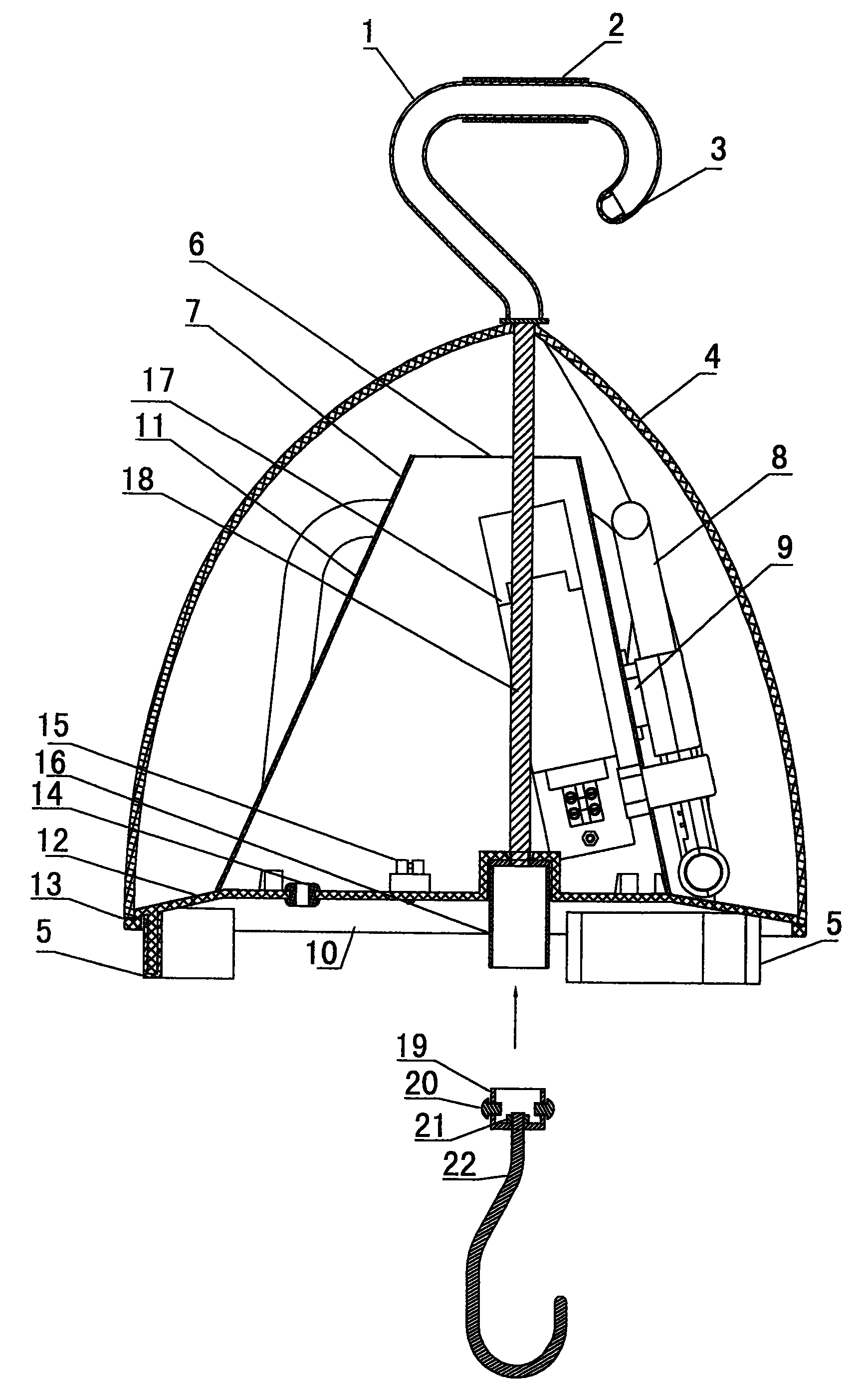

Figure 3, the cross-sectional view of Figure 1.

Figure 4, the bottom view of Figure 1.

Fig. 5. Schematic diagram of the structure of the stent sleeve (enlarged view).

Detailed ways

Embodiments of the present invention will be further described below in conjunction with the accompanying drawings.

There are screw holes in the middle of the upper surface of the bracket cover 16, through holes are formed on both edges, and two corresponding through holes are arranged on the lower end wall, as shown in FIG. 5 .

Three identical equilateral trapezoidal supporting plates are fixed by spot welding into a fixed seat 11 with an equilateral hexagonal cross-section. The top surface of the fixed seat 11 is also fixed with screws to cover the cover plate 6 with a through hole in the middle. The reflective plate 7 matching the shape of the supporting plate is fixed with screws on the three supporting plate slopes of the seat 11, and three arc-shaped bottom reflecting plates 12 are fixed with screws on the base 10 except for the position of the middle fixing seat. The middle position of the base is Equilateral triangle with the same shape of the fixed seat, a boss with a through hole is arranged in the triangle, and the bracket cover 16 inserts with screw holes are fixed in the boss, and on the lamp holder 9 on the three slopes of the fixed seat 11, three lamp holders are fixed respectively. A high-power 2D fluorescent tube 8 is used as the fluorescent light source of the engineering lamp, as shown in Figure 2.

Fix the ballast 17 on the inclined surface of the inner wall of the fixed seat 11, and connect the components with wires, and shield them in the inner cavity of the fixed seat 11 to prevent radiation and electromagnetic interference. On the base 10 within the cavity of the fixed seat 11 A protective ring 14 and a terminal post 15 are connected, as shown in FIG. 3 .

Fix the assembled fixing base 11 on the base 10 with screws, the base feet at the three corners of the lower surface of the base 10 are tightly sleeved with rubber feet 5, and the power cord 23 passing through the protective ring 14 is fixed on the base 10 with a clamp 24. On the lower surface of the base 10, as shown in FIG. 4 .

There is a sponge sleeve 2 tight in the middle of the handle 1, a sealing head 3 is installed on one end, and a suspender 18 with a flange on one end and a thread on the other end is welded and fixed on the other end, and the flange is tightly covered on the lampshade 4. hole, so that water is not easy to flow into the lamp, as shown in Figure 3.

The transparent lampshade 4 is a whole made of three arc surfaces. The suspender 18 with the handle 1 passes through the through hole on the lampshade 4 and the boss of the base 10, and is fixed in the screw hole on the bracket sleeve 16 with the thread on the end. , and the lower edge of the lampshade 4 is tightly connected with the outer stop on the edge of the base with the rubber pad 13 to prevent water from entering the lamp, as shown in Figure 1.

The screw thread of suspension hook 22 one ends is fixed in the screw hole of connector 19, and suspension hook 22 is locked with nut 21, and it can not rotate, and bolt 20 passes the screw hole on the connector side wall to form suspension hook annex.

When in use, insert the power cord 23 of the engineering light into the power switch, turn on the power switch, and three 2D fluorescent lamps 8 will light up at the same time to realize hemispherical wide-angle lighting. Just turn off the switch when not in use. This light can be placed on the table or placed on the ground. It can be used by hanging or hooking, and can be used at any time by changing the desired position as required.

The hook attachment is inserted in the through hole at the lower end of the support cover 16, and the hook attachment is fixed on the support cover 16 with the bolt 20, so that the engineering lamp can be hung upside down with the suspension hook 22.

If the lamp is to be used horizontally or installed on a bracket, the hook attachment needs to be disassembled, which can meet the different needs of different users, and is flexible and convenient to use and has a wide range of applications.

Claims (8)

1. A mobile engineering lamp, comprising a cavity formed by a lampshade (4) with a handle (1) and a base (10), in which a 2D fluorescent tube (8), a ballast (17 ), reflecting plate (7), binding post (15), protective ring (14), it is characterized in that described base (10) is fixed with fixed seat (11), and described fixed seat (11) is made of two or A whole formed by connecting more than two pallets, on which a reflector (7) is fixed, and each reflector (7) is connected with a 2D fluorescent lamp (8) fixed on a lamp holder (9) , the base (10) is also fixed with a bottom reflector (12), and one end of the handle (1) is fixed with a suspender (18), which is connected to the base (10) by the suspender (18) The bracket cover (16) is connected, and the lampshade (4) and the base (10) are fixed into one. 2. The mobile engineering lamp according to claim 1, characterized in that the fixed seat (11) consists of three identical equilateral trapezoidal supporting plates, which are fixed by spot welding to form a whole with an equilateral triangle in section, and the fixed seat (11) Also have the cover plate (6) that through hole is arranged in the middle with screw on the top surface, on the three support plate slopes that constitute fixed seat (11) use the reflective plate (7) that screw fixes with support plate shape to match. 3. The mobile engineering lamp according to claim 1, characterized in that the ballast (17) is fixed on the slope of the inner wall of the fixing seat (11), each wire component is shielded in the inner cavity of the fixing seat (11), and the fixing seat ( 11) A protective ring (14) and a terminal post (15) are connected to the base (10) within the range of the cavity. 4. The mobile engineering lamp according to claim 1, characterized in that the middle position of the base (10) is an equilateral triangle with the same shape as the fixed seat, and the fixed seat (11) is fixed on the middle position of the base (10) with screws , there is a boss with a through hole in the middle of the triangle, the bracket sleeve (16) insert with screw holes is fixed in the boss, the rubber foot (5) is tightly set on the base foot at the three corners of the lower surface of the base (10), the power supply Line (23) passes protective ring (14) and is fixed on the lower surface of base (10) with clamping sheet (24). 5. The mobile engineering lamp according to claim 1, characterized in that there is a sponge sleeve (2) in the middle of the handle (1), a sealing head (3) is installed on one end, and the other end is welded and fixed. Edge, the other end have threaded suspension rod (18), and the flange is tightly covered at the through hole place on the lampshade (4). 6. The mobile engineering lamp according to claim 1, characterized in that the lampshade (4) is a transparent whole composed of three arc surfaces, and the suspender (18) with the handle (1) passes through the lampshade (4) and the base (10) The through hole on the boss is fixed in the screw hole on the bracket cover (16) with the thread on the end, the lower edge of the lampshade (4) and the outer edge of the base with the rubber pad (13) The spigot is tightly connected into one. 7. The mobile engineering lamp according to claim 1, characterized in that there is a screw hole in the middle of the upper surface of the bracket cover (16), through holes are formed on both edges, and there are two corresponding through holes on the lower end wall. 8. The mobile engineering lamp according to claim 1, characterized in that two corresponding holes on the lower end wall of the bracket cover (16) are connected with bolts (20) to hook attachments, and the hook attachments are connected by hooks (22 ) the screw thread at one end is fixed in the screw hole of connector (19), with nut (21) suspension hook (22) is locked and formed.
