Abstract

The invention relates to a household water-saving system, which comprises two high-position water storage tanks, wherein the position of the first water storage tank is higher than that of the second water storage tank, and a The connection pipe for the water supply of the water tank, the input pipe of the first water storage tank is connected to the water collection tank of the first-class primary water facility, the input pipe of the second water storage tank is connected to the water collection tank of the second-class primary water facility, and its output pipe is connected to the second-class water collection tank. Secondary water use equipment, the connecting pipe of the two water storage tanks also leads to an intermediate output pipe, the intermediate output pipe is connected to a type of secondary water use equipment, and each input and input pipe is provided with a submersible pump located in the corresponding water collection tank , to supply water to their respective storage tanks. This water-saving system can use the main water of the family multiple times according to the water quality requirements of different occasions, thereby reducing the total use and discharge of tap water, reducing water costs and saving water resources.

Description

Home Water Saving System

technical field

The invention relates to a water-saving system mainly used in households, which can reuse used waste water for multiple times after certain treatment.

technical background

There are various water facilities and methods in the family, such as drinking water, water for washing tableware and vegetables, water for washing hands and bathing, water for flushing toilets, water for watering flowers, water for cleaning, etc. The quality of water required by various water methods is Different, the highest quality requirement is drinking water, and the lowest is toilet flushing water. But existing various water facilities all are to adopt the water supply pipeline water supply of running water, so the water supply quality can only be in accordance with the drinking water standard that requires the highest. Due to the high quality of water supply, the cost is also high, and unnecessary waste is caused for the occasions with relatively low quality requirements. More importantly, under the existing water supply and drainage methods, all the water used by the family is once After use, it enters the sewer pipe and cannot be used repeatedly, thus increasing the tap water usage and waste water discharge, and wasting water resources.

Contents of the invention

In order to overcome the above-mentioned defects of the prior art, the present invention provides a household water-saving system. With this water-saving system, the main household water can be used for multiple times according to the water quality requirements of different occasions, thereby reducing tap water consumption. Use the total amount and discharge, reduce the cost of water use, and save water resources.

The technical scheme of the present invention to achieve the above object is: a household water-saving system, including a water storage tank, the water storage tank is a high-level water tank, and is provided with an input pipe and an output pipe. The water collection tank, the output pipe is connected to the secondary water facilities.

According to the water supply and drainage quality of different household water facilities, the present invention classifies the water use sequence of different household water facilities, wherein the primary water facilities can be directly supplied with water by tap water pipelines or other suitable water supply pipelines, and the discharge water of primary water facilities passes through After the corresponding water collection tank collects water, it is pumped into the high-level water storage tank by the water pump of the water storage pipeline, and is used to supply water to the secondary water use facilities, thus realizing multiple utilization of water while meeting the water quality requirements of different facilities, saving It saves water resources, reduces the cost of household water use, and reduces the use of tap water and waste water discharge. In addition, since the first water storage tank is set as a high-level water tank, water can be directly supplied to secondary water facilities without pressurization, which is conducive to simplifying the system structure and reducing operating costs.

Description of drawings

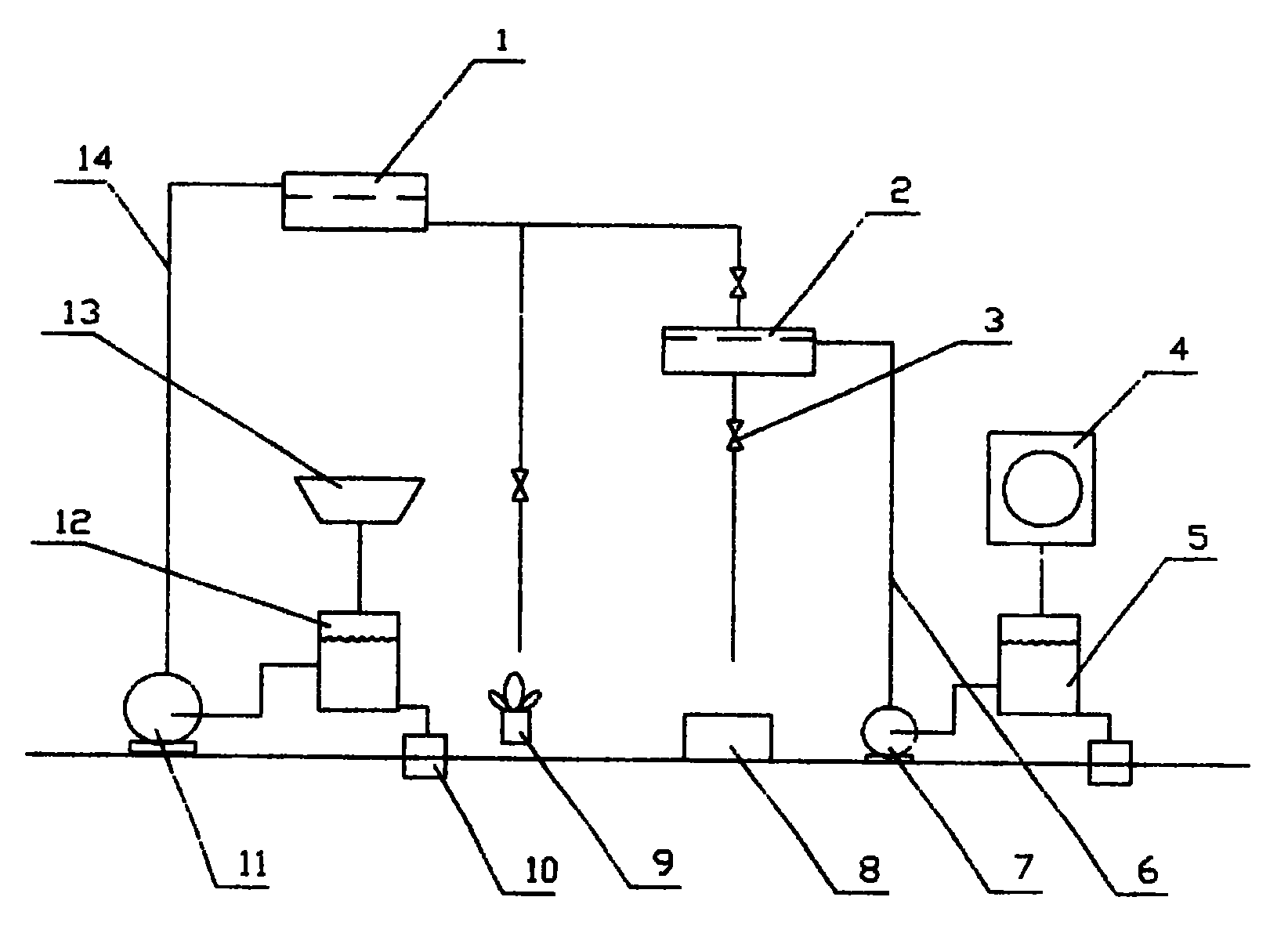

Fig. 1 is a structural representation of an embodiment of the present invention;

Fig. 2 is a front structural schematic diagram of an embodiment of the water collection tank of the present invention.

Detailed ways

Referring to Fig. 1, the present invention relates to a household water-saving system, comprising water storage tanks 1, 2, said water storage tanks are high-level water tanks, provided with input pipes 14 and output pipes 6, said input pipes are provided with water pumps 11, 7, The water collection tanks 12 and 5 of the primary water facilities are connected, and the output pipes are connected with the secondary water facilities 9 and 8 .

The water collecting tank may adopt a sedimentation tank structure.

The sedimentation area of the water collection tank adopting the sedimentation tank structure may be provided with multi-layer sloping plates for accelerating sedimentation.

The slant plate can adopt an inclination angle of 35 ± 5 degrees, and the distance between the plates (referring to the vertical distance, the same below) can be 15 ± 3 cm according to the size of the water collection tank. Under this size, the sewage involved in general life can be guaranteed. Effective sedimentation and easy cleaning.

A filter device may be provided in the water collecting tank, and the filter device may be a filter layer formed by stacking several filter screens, or a single-layer filter plate or filter screen, or other filter materials.

When the water collection tank adopts a sedimentation tank structure, the filter device can usually be arranged before or after the sedimentation area.

A biological purification device may be provided in the water collection tank, and the biological purification device may be a biological filter layer.

When the water collection tank adopts a sedimentation tank structure, the biological purification device can usually be arranged after the sedimentation area, or before the sedimentation area.

When the water collection tank is provided with a filter device, the biological purification device can usually be arranged after the filter device or before the filter device.

Through filtration, sedimentation and/or biological purification treatment, impurities in the discharge water of primary water equipment can be removed to a certain extent, which is conducive to improving the quality of secondary water supply and avoiding the accumulation or deposition of large particles and sediment in the water storage tank Or block the pipeline, reduce the soft scale, so as to avoid hindering the operation of the system and reduce the workload of cleaning and maintenance of the system.

The bottom of the water collection tank of the primary water facility can be provided with a sewage discharge valve, and its discharge pipe can be connected to the household sewer pipes 10, 2, so that the settled sewage can be discharged regularly or irregularly as required.

The sewage discharge valve can adopt an electric valve, and the electric valve is provided with a water level switch device located in the water collection tank for controlling the high water level of the water collection tank. When the water level in the water collection tank reaches a certain height, the water level The switch device opens the sewage discharge valve, so that the water level in the water collection box drops to a control height, so as to prevent the water in the water collection box from overflowing.

The bottom of the water collection tank of the primary water facility can be a manual or electric scraper to scrape up the sludge deposited at the bottom of the water collection tank to avoid long-term deposition. Usually, the scraper can be started when or before the sewage discharge valve is opened to discharge the settled sewage. plate so that the scraped sludge is discharged with the sewage.

When both the sewage discharge valve and the scraper are electric, the same electric switch can be set so that the scraper is also started simultaneously when the sewage discharge valve is opened.

The scraper can be provided with a translation track to scrape off the settled sludge in a reciprocating manner. This scraper structure is suitable for a water collection tank with a rectangular bottom. The way to scrape off the sludge at the bottom of the water collection tank, this scraper structure is suitable for the water collection tank with a round bottom.

The water pump may be a submersible pump arranged in the water collection tank. It can be understood that when the water collection tank adopts a sedimentation tank structure, the water inlet of the submersible pump should be set outside the area where the sludge is deposited, so as to avoid pumping the sludge into the water storage tank.

The water pump can be provided with two water level switches, one of which is arranged in the water storage tank for controlling the low water level (inlet water level) and high water level (stop water intake level) of the water storage tank, when the water level in the water storage tank When the water level is lower than the water inlet level, the water level switch will turn on the water pump to pump water to the water storage tank. The water level control switch is arranged in the water collection tank to control the low water level of the water collection tank. When the water level in the water collection tank is lower than the controlled low water level, the water level control switch cuts off the power supply of the water pump, so that the water volume of the water pump in the water collection tank is insufficient. It can be seen that the two water level switches can be connected in series, or other forms of control circuit structure can be used to realize the above control, and the specific structure of the water level control switch can be in any suitable form.

The quantity of described water storage tank can usually be one, also can be two or more, when adopting two water storage tanks, wherein the position of the first water storage tank 1 is higher than the position of the second water storage tank 2 (that is, the position of the first water storage tank The water in the water tank can flow to the second water storage tank under the action of gravity), a connecting pipe is provided between the two water storage tanks to supply water from the first water storage tank to the second water storage tank, and the input pipe of the first water storage tank is connected to a primary The water collection tank 13 of the water use facility 13, the input pipe of the second water storage tank is connected to the water collection tank 5 of the second type of primary water use facility 4, and its output pipe is connected to the second type of secondary water use equipment 8. On the connecting pipe of the two water storage tanks An intermediate output pipe is also drawn out (the intermediate output pipe can be regarded as the output pipe of the first water storage tank), and the intermediate output pipe is connected to a type of secondary water use equipment 9 .

Valves 3 can be set on each of the pipelines according to actual needs.

The connection methods of the various pipelines and facilities can be connected by the existing technology according to the suitable water flow method, the number of the input pipes and output pipes can be set according to actual needs, and the water facilities include various suitable for this section The facilities connected to the water system can be equipment such as washing machines, or sinks (including faucets and sewer pipes), or even just faucets or faucets and their associated sewer pipes (for example, showers are in this form).

What Fig. 2 provides is a kind of preferred design of water collection box, and this water collection box structure can be adapted to each water collection box among the present invention, and the box body 200 of this water collection box is cuboid shape generally, and the space in box is divided into three Areas, in turn (in the order of water flow through) are primary sinking and oil slick area 210, sedimentation area 220 and biological purification area 230, the length of these three areas (dimensions in the direction from the water inlet to the water outlet, below same) can be respectively 25%-30%, 40%-55% and 20%-30% of the total length of the box, for example, for a box with a length of 1 meter, the lengths of these three areas can be 25 cm respectively , 55 cm and 20 cm, or 30 cm, 40 cm and 30 cm, or 28 cm, 50 cm and 22 cm, this length ratio can balance the treatment time of each area when treating domestic sewage, and effectively realize the processing purposes.

A lower deflector 241 may be provided in the primary sinking and oil floating area, and an upper deflector 242 may be provided between the primary sinking and oil floating area and the settling area, and the upper deflector constitutes the The boundary between the primary sedimentation and oil slick area and the settling area, the lower deflector extends upward from the bottom plate of the box, and its height can usually be 85%-90% of the height of the box. The deflector extends downward from the top plate of the box, and the distance between its lower end and the bottom of the box may be 30%-35% of the height of the box, and the distance between the lower deflector and the upper deflector is The distance between them can be 30%-35% of the length of the primary sinking and oil slick area, because the primary sinking and slick oil are mainly in front of the lower deflector (in the direction from the water inlet to the water outlet, with The position where the water flow first passes is the area of the front, the same below), so the larger the length of this area, the better, and the distance between the lower deflector and the upper deflector cannot be too small to avoid In case of turbulent flow, the above size ratio settings take into account the above two factors in order to achieve the best results.

The bottom plate of the primary sink and oil slick area can be concave downward, and its cross-sectional structure is angular. This angular concave structure can be welded by flat steel plates. Impurities such as particles and solids in the water are initially precipitated and accumulated in the concave At the bottom of the part, the bottom of the concave part is provided with a primary sinking and oil floating area drainpipe 213, so as to carry out sewage.

The upper part of the primary sinking and floating oil area can be provided with an oil scraper 212, and the structure and driving form of the oil scraper can adopt the above-mentioned scraper technology in the form of belt transmission or other suitable scraper technology. The shape of the end surface of the scraper can be obtuse, and its upper and lower ends are inclined forward, and the acute angle between the two sides and the vertical line can be 25-30 degrees. The front end wall of the sinking and oil slick area) can be welded with an oil collecting slant plate, which forms an oil collecting groove 211 together with the front end wall of the box body. When the oil scraper is pushed forward, it will float on the water surface The oil dirt is pushed into the oil sump, and then retreats to the upper deflector for another oil scraping. The obtuse angle structure of the oil scraper is beneficial to maximally scrape the oil slick into the oil sump when moving forward, and minimize the amount of oil slick pushed backwards to reduce the oil slick on the upper deflector agglomeration at places.

Considering that the domestic water collection tank should not be too large in size, in this embodiment of the water collection tank, the settling area is provided with several parallel sloping plates 222 for accelerating sedimentation, and the rear ends of the sloping plates are upward, thus forming a water tank. The upward flow between the sloping plates, while the sludge settled on the sloping plates flows downward, and finally accumulates at the bottom of the settling area. The opposite setting of this water flow and sludge flow direction is conducive to the separation of water and sludge in a small volume. The inclination angle of the inclined plate (referring to the acute angle between the horizontal plane) can be 35-40 degrees, each inclined plate The plate spacing between the plates can be 15±3 cm, so that the sedimentation effect can be ensured, and the deposition of sludge on the inclined plates can be avoided.

Considering the volume limitation of the water collection tank, the sizes of the sloping plates can be different. The front end of the sloping plate located at the front can be connected to the upper deflector, and the top of the sloping plate located at the rear can be connected to the upper deflector. The partition plate 250 separated between the sedimentation area and the biological purification area is connected, the lower ends of the remaining several inclined plates located in the front can be located on the same vertical plane, and the upper ends of the remaining several inclined plates located in the back can be located on the same vertical plane In this way, although the flow between some inclined plates is shorter than that between other inclined plates, it is feasible to consider the comprehensive effect in practice.

A scraper 223 can be provided on the bottom plate of the settling area, and the scraper can adopt the aforementioned scraper technology with transmission or other suitable scraper technology. The rear part is concave downward to form a dirt collection tank 224. When the mud scraper is pushed backward, the sludge deposited on the bottom plate is scraped to the dirt collection tank. The section of the dirt collection tank is arc-shaped, which The sewage collection tank can be conveniently made by stamping, and the lowest end of the sewage collection tank is provided with a sedimentation area sewage discharge pipe 225 for discharging the sludge in the sedimentation area.

The partition plate 250 is bounded between the settling area and the biological purification area, and the partition plate extends upwards from the bottom surface of the casing, and its height may be 85-95% of the height of the lower deflector, so as to facilitate The flow of water, the biological purification area is provided with a biological filter element 232, the lower end of the biological filter element is placed on the filter element support 233, and the filter element support can be welded respectively on the clapboard and the box by two The strip plate on the end wall, the upper part of the biological filter element, the partition plate and the rear end wall of the box can further be provided with a baffle plate 234, so as to close the gap outside the biological filter element, and the biological purification The bottom plate of the zone can be concave downwards, and its cross-sectional structure is angular. This angular concave structure can be welded by flat steel plates. The bottom of the bottom is provided with the biological purification zone blowdown pipe 234, so that carry out blowdown.

The first settling and floating oil area, the settling area and the top plate of the biological purification area can be provided with respective covers for cleaning in the box.

The water inlet pipe 260 of the water collecting tank can be installed on the front wall of the box body, and the vertical distance between its center line and the bottom plate of the box body can be 30%-35% of the height of the box body, so that the separation time can be guaranteed and avoid The disturbance of the influent water flow to the sludge deposited at the bottom, the outlet pipe 270 of the water collection tank can be installed on the rear end wall of the box body, and the vertical distance between its center line and the bottom plate of the box body can be 100% of the height of the box body 15%-20%, the opening at the inner end (the inlet where water enters the outlet pipe from the tank) can be opened upwards, for example, the inner end of the outlet pipe is bent upwards by 90 degrees, so as to avoid inhalation of sediment at the bottom of the tank sludge.

The present invention is based on the different quality requirements or different quality requirements of the water supply and discharge water of different water use facilities, wherein the water supply quality requirements of the primary water use facilities are higher than the water supply quality requirements of the secondary water use facilities, and the quality of the discharge water is relatively low. It can be used as a secondary water facility after being treated by the water collection tank (the water collection tank can be treated in different ways according to the actual situation, such as simple water collection, sedimentation and/or filtration, or even biological treatment, etc.) Water supply, so just provides possibility for the implementation of the present invention, and this situation also really exists in domestic water use in reality. Moreover, further classification is also feasible. One of the classification methods is to refine the classification of primary water use and secondary water use. The discharge water from the facilities is used for the secondary water facilities, the discharge water from the secondary water facilities is used for the tertiary water facilities, etc., and so on.

The further improved scheme provided by the present invention is suitable for refining the classification of primary water and secondary water (corresponding to the technical scheme of setting up two water sources respectively as a first-class primary water facility and a second-class primary water collection tank). That is, according to the nature of the primary water, it can be divided into two categories. The impurities contained in the discharged water of one type of primary water can be basically removed after treatment in the water collection tank (such as filtration and sedimentation, etc.), and the pollution of the treated water is relatively low. It can be used for growing flowers, roughly washing items, cleaning and other occasions (this type of water is Class I secondary water), and the discharge water of Class II primary water after the above filtration and precipitation is relatively high in pollution, so it is not suitable for growing flowers and Cleaning, etc., but can be used for flushing toilets, washing mops, etc. (this type of water is second-class secondary water). In practice, the primary water facilities can be classified according to the general situation of the discharge water of the primary water facilities according to the appropriate standard, and the secondary water facilities can be classified according to the demand status of the secondary water facilities. The quality of the water tank after treatment is better than that of the second-class primary water facilities after being treated by the water collection tank. The discharge water from the facilities can be used for Class I secondary water facilities and Class II secondary water facilities after being treated by the water collection tank, and the discharge water from the Class II primary water facilities can only be used for Class II secondary water facilities after being treated by the water collection tank. . In order to avoid the equipment of the present invention being too complicated, usually the washing pool in the kitchen can be simply listed as a first-class primary water facility, and the washing machine etc. installed in the bathroom are listed as a second-class primary water facility. It can be classified as a first-class primary water facility, but in order to reduce the setting of water pipelines, it can also be regarded as a second-class primary water facility, and the second-class water facility is usually a toilet tank and a pool for flushing mops. In terms of pipeline settings, multiple faucets can be set up to be used as Class I secondary water facilities and Class II secondary water facilities to provide corresponding water.

If water facilities can be divided into three or more times as required, as long as the structure of the present invention is simply repeated many times, multiple utilization of water can be realized.

When describing the dimensions in this manual, the thickness of the plates constituting the box, etc. is ignored. When the material thickness of the box and other structures cannot be ignored, the material thickness should be discarded in the corresponding dimensions.

Claims (10)

1. domestic water saving system, comprise storage tank, it is characterized in that described storage tank is a high level cistern, be provided with input pipe and efferent duct, described input pipe is provided with water pump, connect the header tank of once using drainage facility, described efferent duct connects the seconary water use facility, describedly once be provided with the effluent discharge valve with the bottom of the header tank of drainage facility, also be provided with manual or electronic scraper plate, the delivery pipe of described effluent discharge valve connects family's sewer pipe, and described scraper plate is provided with translation track or is provided with the rotating shaft that is positioned at central authorities.

2. domestic water saving system as claimed in claim 1 is characterized in that described header tank adopts the sedimentation basin structure.

3. domestic water saving system as claimed in claim 2 is characterized in that being provided with filter in the described header tank.

4. domestic water saving system as claimed in claim 3 is characterized in that being provided with biological purification plant in the described header tank.

5. domestic water saving system as claimed in claim 4, it is characterized in that described header tank adopts the sedimentation basin structure, in establish described filter and described biological purification plant, its precipitation zone is provided with the multilayer swash plate, described filter is the filtration beds that is built up by some filter screens, be positioned at before the described precipitation zone, described biological purification plant is biological filtering layer, is positioned at after the described precipitation zone.

6. domestic water saving system as claimed in claim 4, it is characterized in that described header tank adopts the sedimentation basin structure, in establish described filter and described biological purification plant, its precipitation zone is provided with the multilayer swash plate, described filter is to adopt single layer filter plate or screen pack, be positioned at before the described precipitation zone, described biological purification plant is biological filtering layer, is positioned at after the described precipitation zone.

7. domestic water saving system as claimed in claim 1, it is characterized in that described effluent discharge valve adopts motor operated valve, described motor operated valve is provided with the water level switch device that is positioned at described header tank, the high water level that is used for the control sets water tank, when the water level in the header tank reach a certain height, described water level switch device is opened described effluent discharge valve, drawdown in header tank is to the control height, described scraper plate is electronic scraper plate, and the switch of its switch and described effluent discharge valve is same motor switch.

8. domestic water saving system as claimed in claim 1, the casing that it is characterized in that described header tank is cuboid generally, the space is divided into three zones in the casing, be followed successively by just heavy and oil slick district, settling zone and biological cleaning district, this trizonal length is respectively the 25%-30% of described casing total length, 40%-55% and 20%-30%, be provided with chin spoiler (241) in the described just heavy and oil slick district, be provided with baffle upper plate (242) between described just heavy and oil slick district and the described settling zone, this baffle upper plate constitutes described just heavy and oil slick district with the boundary between the described settling zone, described chin spoiler extends upward from described box bottom place, it highly is the 85%-90% of box height, described baffle upper plate extends downwards from described roof box place, distance of the described bottom half of end distance is the 30%-35% of box height under it, the distance of described chin spoiler between the described baffle upper plate is the 30%-35% of described just heavy and oil slick section length, the base plate in described just heavy and oil slick district is to recessed, its section structure is dihedral, this dihedral concave configuration adopts plane steel plate to be welded, be provided with just heavy and oil slick district blow-off pipe in the bottom of this recessed portion, described just sinking is provided with oil scraping plate with top, oil slick district, the end surface shape of described oil scraping plate is shape in obtuse angle, its top and bottom all turn forward, article two, the acute angle between limit and the vertical line all is 25-30 degree, be welded with an oil-collecting swash plate on the front bulkhead of described casing, this oil-collecting swash plate together surrounds an oil trap with the casing front bulkhead, described settling zone is provided with and is used to some inclined paralled plates of quickening to precipitate, the rear end of described inclined paralled plates upwards, the angle of inclination of described inclined paralled plates is the 35-40 degree, distance between plates between each inclined paralled plates is 15 ± 3 centimetres, the size of described each inclined paralled plates is not quite similar, being positioned at a top inclined paralled plates front end links to each other with described baffle upper plate, be positioned at rearmost inclined paralled plates upper end and the isolated dividing plate of described settling zone with described biological cleaning district linked to each other, the lower end that is positioned at all the other some inclined paralled plates of front is positioned on the same vertical plane, the upper end that is positioned at all the other some inclined paralled plates of back is positioned on the same vertical plane, the base plate of described settling zone is provided with cleaning shoe, described settling zone base plate at the rear portion of settling zone to recessed, form sewage sump, the least significant end of described sewage sump is provided with the settling zone blow-off pipe, demarcate by described dividing plate between described settling zone and the described biological cleaning district, described dividing plate extends upward from tank floor, it highly is the 85-95% of described chin spoiler height, described biological cleaning is provided with biological filter core in the district, the lower end of described biological filter core is placed on filter core and supports, described filter core supports and adopts two rectangular plates that are welded on respectively on described dividing plate and the described box back wall, described biological filter core top is with also further being provided with baffle plate between described dividing plate and the described box back wall, the base plate in described biological cleaning district is to recessed, its section structure is dihedral, this dihedral concave configuration adopts plane steel plate to be welded, be provided with biological cleaning district blow-off pipe in the bottom of this recessed portion, described just heavy and oil slick district, be equipped with lid separately on the roof box in described settling zone and described biological cleaning district, the water inlet pipe of described header tank is installed on the described casing front bulkhead, vertical distance between its center line-spacing box bottom is the 30%-35% of box height, the outlet pipe of described header tank is installed on the described box back wall, vertical distance between its center line-spacing box bottom is the 15%-20% of box height, the opening of its inner end is upwards opened, upwards curved 90 degree in the inner end of described outlet pipe.

9. as claim 1,7 or 8 described domestic water saving systems, it is characterized in that described water pump is arranged on the submersible pump in the described header tank, and be provided with two water level switches, one of them is arranged in the described storage tank, be used to control the low water stage and the high water level of storage tank, when the water level in the storage tank is lower than into the water water level, this water level switch is opened water pump, when the water level in the storage tank reaches when stopping into the water water level, this water level switch cuts off described pump power, another water level switch is arranged in the described header tank, and the water level in header tank is lower than the low water stage of control, and this water level switch cuts off the power supply of water pump.

10. as claim 1,7 or 8 described domestic water saving systems, the quantity that it is characterized in that described storage tank is two, wherein the position of first storage tank is higher than the position of second storage tank, be provided with the tube connector that supplies water to second storage tank by first storage tank between two storage tanks, the input pipe of described first storage tank connects the header tank that a class is once used drainage facility, the input pipe of described second storage tank connects the header tank that two classes are once used drainage facility, its efferent duct connects two class seconary water use equipment, also drawn middle efferent duct on the tube connector of described two storage tanks, described middle efferent duct connects a class seconary water use equipment.
